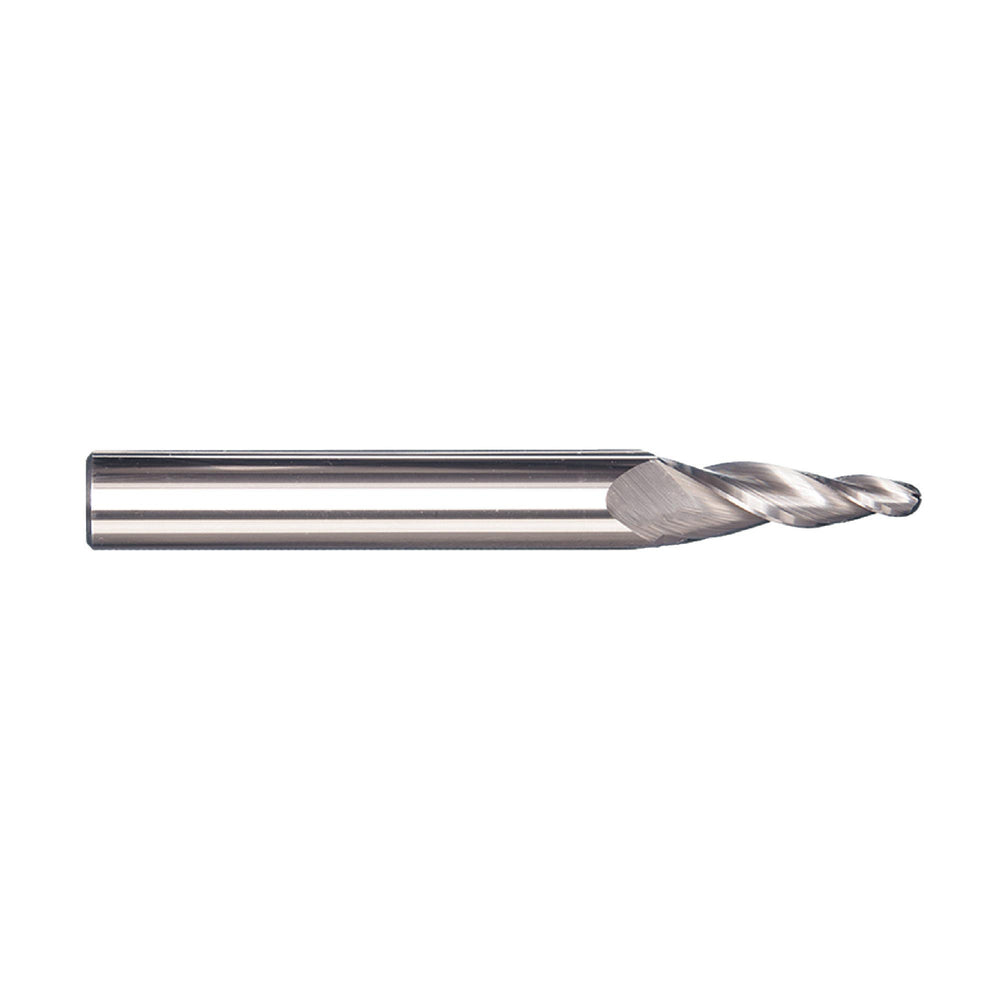

RUSHMORE USA 101146 10°, 1/8" Small End Dia., 1" LOC, Solid Carbide Tapered End Mill
by Rushmore USA
$105.66 USD
SKU 20-109-208
| Product Specifications | |
|---|---|
| Brand | RUSHMORE USA |
| Shank Diameter | 1/2" |
| Overall Length | 4" |
| Finish Coating | Bright |
| No. of Flutes | 3 |
| Length of Cut | 1" |
| Tool Material | Solid Carbide |
| Single or Double End | Single |
| Center Cutting | Yes |
| Tool Nr | None |
| Taper Angle Per Side | 10° |
| Small End Diameter | 1/8" |
| End Type | Ball End |
| Model # | 101146 |
| Application | For slotting, side-milling, and 3-D contouring utilizing conventional and/or 5 axis CNC machinery. |
| Cutting Direction | Right Hand |
| Cutting End Shape | Ball |
| Cutting Length | 1" |
| First Choice For: | Steel |
| Flute Shape | Right Hand Spiral |
| Prop. 65 | Yes |
| Shank Style | Straight Shank |
| Tolerance_Cutting Diameter | +.000" / -.002" |
| Tolerance_Shank | h6 |
| UNSPSC | 27112803 |
| Weight | .35 lbs. |
| Workpiece Material | From heat resistant alloys, tool & die alloys, to cast irons and non-ferrous materials. |
| Country of Origin | UNITED STATES OF AMERICA |
WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Provides a world-class workpiece finish
Benefits
- A genuine "step up" from high speed steel or cobalt end mills in terms of stiffness and heat resistance, resulting in improved surface finishes, increased through-put and decreased "cost per part" in a broad range of materials ranging from heat resistant alloys, tool & die alloys, to cast irons and non-ferrous materials.
- Rigorous manufacturing standards insure consistent quality tool-to-tool.
- The perfect combination for chip clearance and surface finishes.
- Provide excellent chip evacuation and resistance to built up edge.
Applications
For slotting, side-milling, and 3-D contouring utilizing conventional and/or 5 axis CNC machinery.Features
- Premium sub-micron grain carbide, with superb fluting finishes.
- Fluting diameters ground to high performance endmill industry standards of +.000" / -.002" with h6 slip-fit shank tolerances.
- Shrink-fit capable.
