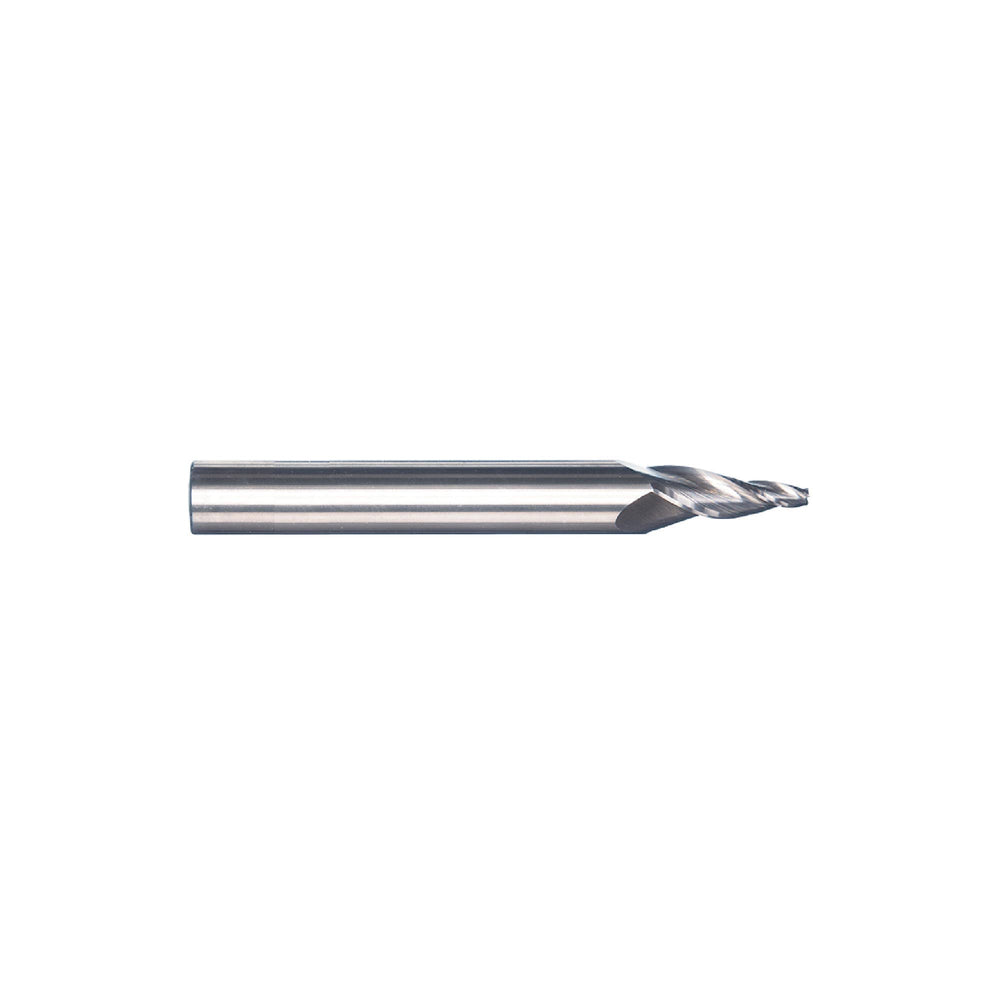

RUSHMORE USA 101153 5°, 1/4" Small End Dia., 1-1/4" LOC, Solid Carbide Tapered End Mill
by Rushmore USA
$87.79 USD
SKU 20-109-256
| Product Specifications | |
|---|---|
| Brand | RUSHMORE USA |
| Shank Diameter | 1/2" |
| Overall Length | 4" |
| Finish Coating | Bright |
| No. of Flutes | 3 |
| Length of Cut | 1-1/4" |
| Tool Material | Solid Carbide |
| Single or Double End | Single |
| Center Cutting | Yes |
| Tool Nr | 61603 |
| Taper Angle Per Side | 5° |
| Small End Diameter | 1/4" |
| End Type | Square End |
| Model # | 101153 |
| Application | For slotting, side-milling |
| Cutting Direction | Right Hand |
| Cutting End Shape | Square |
| Cutting Length | 1-1/4" |
| First Choice For: | Steel |
| Flute Shape | Right Hand Spiral |
| Prop. 65 | Yes |
| Shank Style | Straight Shank |
| Tolerance_Cutting Diameter | +.000" / -.002" |
| Tolerance_Shank | h6 |
| UNSPSC | 27112803 |
| Weight | .35 lbs. |
| Workpiece Material | From heat resistant alloys, tool & die alloys, to cast irons and non-ferrous materials. |
| Country of Origin | UNITED STATES OF AMERICA |
WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Provides a world-class workpiece finish
Benefits
- Compared to high speed steel or cobalt tool, improved surface finishes, increased through-put and decreased "cost per part" in a broad range of materials ranging from heat resistant alloys, tool & die alloys, to cast irons and non-ferrous materials.
- Avoids the task of re-orienting either the milling head or workpiece in order to provide a qualified workpiece taper.
- Rigorous manufacturing standards insure consistent quality tool-to-tool.
- 3 fluted tool is the perfect combination for chip clearance and surface finishes in a wide variety of materials.
- World-class fluting finishes insure excellent chip evacuation and resistance to built up edge.
Applications
For slotting, side-millingFeatures
- Made in USA, premium sub-micron grain carbide, with superb fluting finishes.
- Fluting diameters ground to high performance endmill industry standards of +.000" / -.002" with h6 slip-fit shank tolerances.
