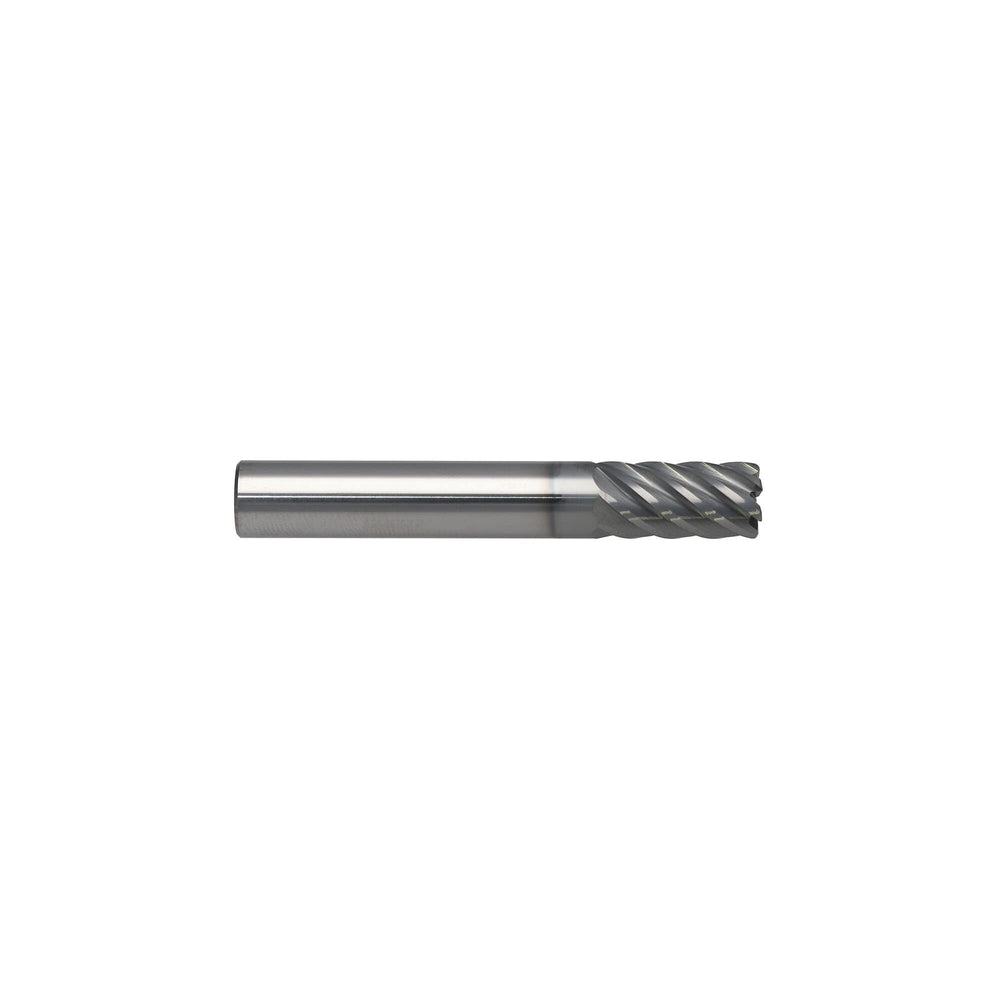

RUSHMORE USA 3/8" Size, 1" LOC, 7 Flute, nACRo Solid Carbide Finishing End Mill
by Rushmore USA
$64.95 USD
SKU 20-505-203
| Product Specifications | |
|---|---|
| Brand | RUSHMORE USA |
| Shank Diameter | 3/8" |
| Overall Length | 2-1/2" |
| Finish Coating | nACRo |
| Size Type | Fractional |
| Size | 3/8" |
| No. of Flutes | 7 |
| Length of Cut | 1" |
| Tool Material | Solid Carbide |
| Single or Double End | Single |
| Helix Angle | Variable |
| Center Cutting | No |
| Type | 7 Flute Variable Carbide Single End Mills |
| Corner Radius | 0 |
| End Type | Square |
| Coolant Through | No |
| Application | For high performance milling |
| Coating | nACRo |
| Cutting Direction | Right Hand |
| First Choice For: | High Temp Exotic Alloys |
| Flute Shape | Spiral Flute |
| Prop. 65 | Yes |
| Shank Style | Straight Shank |
| Tolerance_Cutting Diameter | +.002 / -.000" |
| Tolerance_Shank Diameter | +.030" / -.000" |
| Weight | 0.4064 lbs. |
| Workpiece Material | Titanium, stainless steel & high temperature alloys |
| Workpiece Material Range | Steel, Stainless Steel, High-Temp Exotic Alloys, Hard Materials |
| Country of Origin | UNITED STATES OF AMERICA |
WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Benefits
- Rushmore nACRo coated 7 Flute end mills offer superior performance in superalloy machining over other common coatings.
- Rushmore’s nACRo coating offers a high adhesion to the carbide, which allows for higher heat capacities than AlCrN and can be run to a maximum heat of 1,100°C.
- The progressive helix and eccentric relief work well in hard materials and high feed rates where the machine can actively engage the cutting materials and actively pushes the heat into the chip.
- The non-center cutting 7 Flute end mills are designed for high efficiency machining and can be run at high speeds on a range of very hard materials, including titanium alloys.
