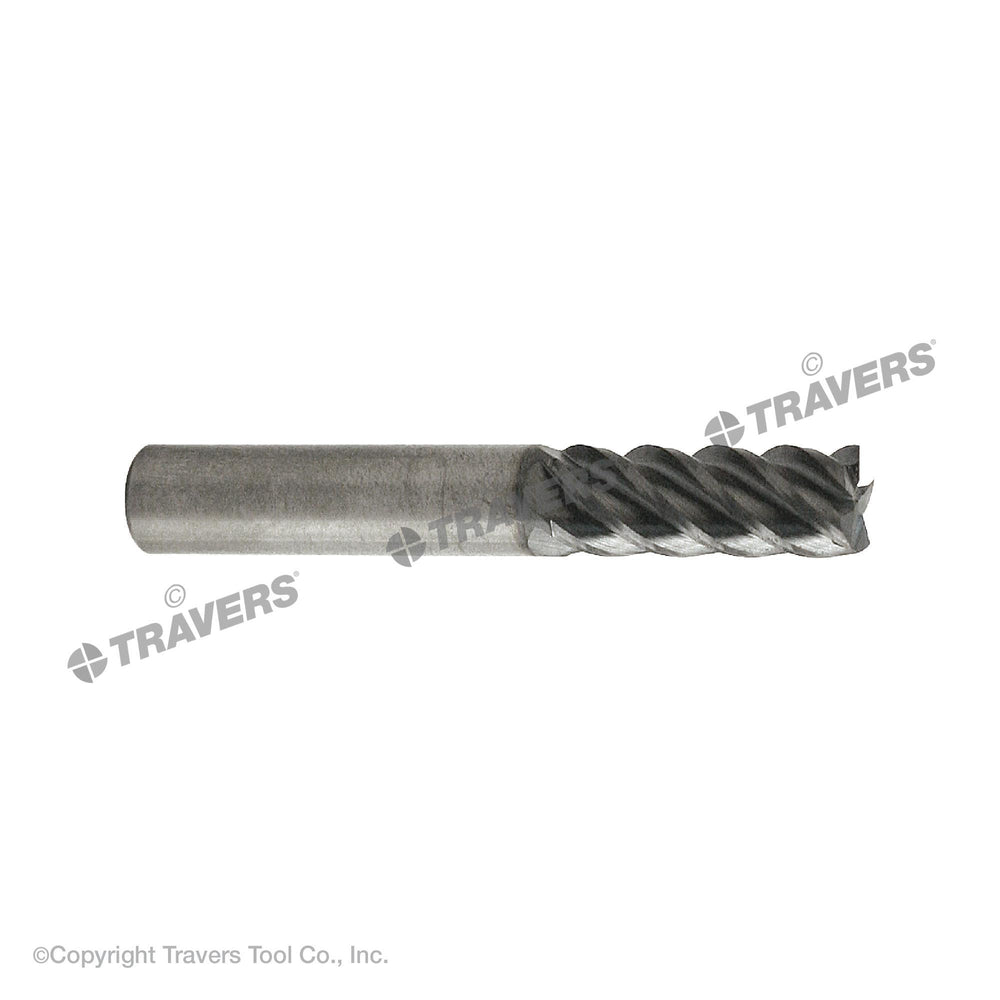

RUSHMORE USA 9/16" Size, 1-1/8" LOC, 5 Flute, AlTiN Solid Carbide Finishing End Mill
by Rushmore USA
$97.31 USD
SKU 20-104-419
| Product Specifications | |
|---|---|
| Brand | RUSHMORE USA |
| Shank Diameter | 9/16" |
| Overall Length | 3-1/2" |
| Finish Coating | AlTiN |
| Size Type | Fractional |
| Size | 9/16" |
| No. of Flutes | 5 |
| Length of Cut | 1-1/8" |
| Tool Material | Solid Carbide |
| Single or Double End | Single |
| Helix Angle | 45° |
| Center Cutting | Yes |
| Type | 5 Flute 45° Carbide Single End Mills |
| Corner Radius | 0 |
| End Type | Square |
| Coolant Through | No |
| Application | For high performance milling |
| Coating | ALTIN |
| Cutting Direction | Right Hand |
| First Choice For: | High Temp Exotic Alloys |
| Flute Shape | Spiral Flute |
| Prop. 65 | Yes |
| Shank Style | Straight Shank |
| Tolerance_Cutting Diameter | +.0000" / -.002" |
| Tolerance_Shank Diameter | +.0000" / -.0001" TO -.0005" |
| Weight | 0.385 lbs. |
| Workpiece Material | Titanium, stainless steel & high temperature alloys |
| Workpiece Material Range | Steel, Stainless Steel, High-Temp Exotic Alloys, Non-Ferrous, Cast Iron, Hard Materials, Plastics |
| Country of Origin | UNITED STATES OF AMERICA |
WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
For high performance machining
Benefits
- Rapid evacuation of chips.
Applications
For high performance millingFeatures
- High helix.
- Black coating color.
