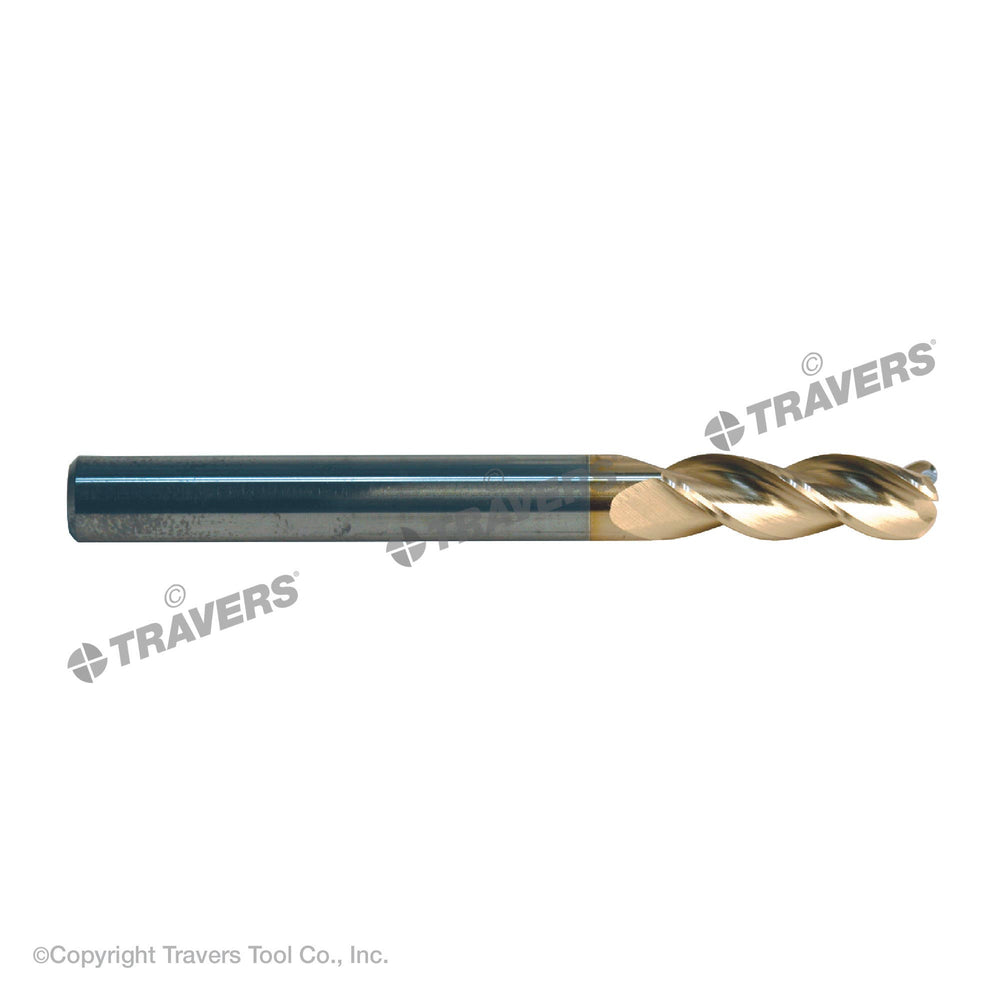

RUSHMORE USA 314738 3/8" Size, 1" LOC, 3 Flute, ZrN Solid Carbide Finishing End Mill
by Rushmore USA
$37.33 USD
SKU 28-100-122
| Product Specifications | |
|---|---|
| Brand | RUSHMORE USA |
| Shank Diameter | 3/8" |
| Overall Length | 2-1/2" |
| Finish Coating | ZrN |
| Size Type | Fractional |
| Size | 3/8" |
| No. of Flutes | 3 |
| Length of Cut | 1" |
| Tool Material | Solid Carbide |
| Single or Double End | Single |
| Helix Angle | 37° |
| Center Cutting | Yes |
| Type | 3 Flute End Mill For Aluminum |
| Corner Radius | .020" |
| Model # | 314738 |
| Application | Milling Aluminum |
| Cutting Direction | Right Hand |
| Cutting End Shape | Square |
| First Choice For: | Non-Ferrous |
| Flute Shape | Spiral Flute |
| Prop. 65 | Yes |
| Tolerance_Cutting Diameter | +.000" / -.002" |
| Tolerance_Shank Diameter | -.0001" / -.0004" |
| UNSPSC | 27112803 |
| Weight | 0.03 lbs. |
| Workpiece Material Range | Non-Ferrous, Plastics |
| Country of Origin | UNITED STATES OF AMERICA |
WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Machine Shop Solutions
Problem: Aluminum can stick to a tool's cutting edge, causing failure or poor finish quality. Solution: Unique geometries and ZRN coating extend tool life, improve cutting performance and provide a superior finish.Reduce Cutting Forces & Increase Productivity On Aluminum!
Maximize metal removal rates on aluminum with Rushmore's Solid Carbide 37° Helix End Mills, each coated with zirconium nitride (ZrN) to prolong tool life while offering you superior finish and durability! These end mills feature uniquely designed geometries that not only cut easier, but also prevent most common aluminum machining failures. The powerful ZrN layer extends tool life while also improving your cutting performance and lubricity.
Maximum metal removal
Benefits
- Cutting tool geometry to prevent most failures from aluminum sticking to the carbide cutting edge.
- Flute polish for better chip evacuation & higher metal removal rates.
- Edge prep for reduced chatter.
- Open gash end for better chip evacuation.
- Higher helix for increased chip evacuation & better shearing.
- ZrN coating for increased tool life & lubricity.
- This produces an end mill that provides reduced cutting forces & superior finishes.
Applications
Milling AluminumFeatures
- 10% premium micrograin carbide.
- Unique geometry.
