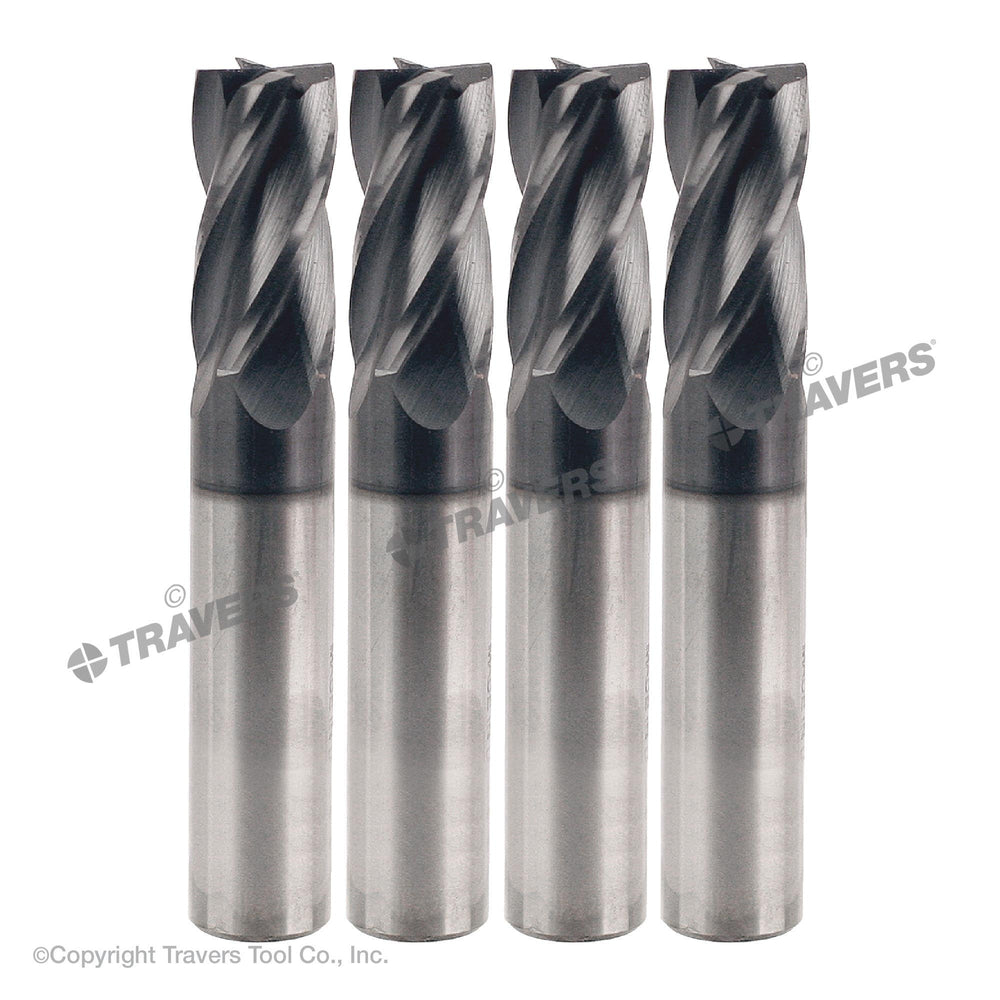

RUSHMORE USA 1/2" Size, 1" LOC, 4 Flute, AlTiN Solid Carbide Finishing End Mill
by Rushmore USA
$189.26
SKU 20-501-078
| Product Specifications | |
|---|---|
| Brand | RUSHMORE USA |
| Shank Diameter | 1/2" |
| Overall Length | 3" |
| Style | 4 Flute solid carbide end mill |
| Finish Coating | AlTiN |
| Size Type | Fractional |
| Size | 1/2" |
| No. of Flutes | 4 |
| Length of Cut | 1" |
| Tool Material | Solid Carbide |
| Single or Double End | Single |
| Helix Angle | 30° |
| Center Cutting | Yes |
| Corner Radius | 0 |
| Application | Milling |
| Coating | ALTIN |
| Cutting Direction | Right Hand |
| Cutting End Shape | Square |
| Flute Shape | Spiral Flute |
| Helix Direction | Right Hand |
| Includes | 4 pieces size 1/2" |
| Length Type | Standard Length |
| No. of Pieces | 4 |
| Prop. 65 | Yes |
| Tolerance_Cutting Diameter | +.0000" / -.002" |
| Tolerance_Shank Diameter | +.0000" / -.0005" |
| UNSPSC | 27112803 |
| Weight | 1.464 |
| Workpiece Material | Gereral purpose use on all materials with AlTiN coating that requires an increase of 75% to 100% in machining speeds & feeds vs. uncoated tools |
| Country of Origin | UNITED STATES OF AMERICA |
WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Buy in bulk and save big money
Benefits
- Center-cutting end mills can create three-dimensional shapes and profiles.
- Solid carbide provides for better rigidity than high-speed steel.
- Lower helix angle of 30° wraps slower and is optimized for the toughest roughing applications.
- Calico Aluminum Titanium Nitride (AlTiN) coating provides higher feeds, speeds, and doubles the tool life.
- The coating allows the tool to be used in extremely heat-resistant, high-speed applications involving wet, semi-dry to dry cutting conditions.
Applications
MillingFeatures
- 4-flute single end mill with AlTiN coating in an economical pack of 4 pieces.
- Right-hand cut, Right-hand spiral, general-purpose finishing end mill.
- Comes in regular length and a lower helix angle (30°).
- Tool made from premium submicron carbide with 10% cobalt.
- The round shank accommodates a variety of holders.
- The spiral multi-flute design allows for a faster and smoother cutting action.
- Stock will rotate towards AlTiN coating.
- Suitable for use with wax or liquid lubricants.
