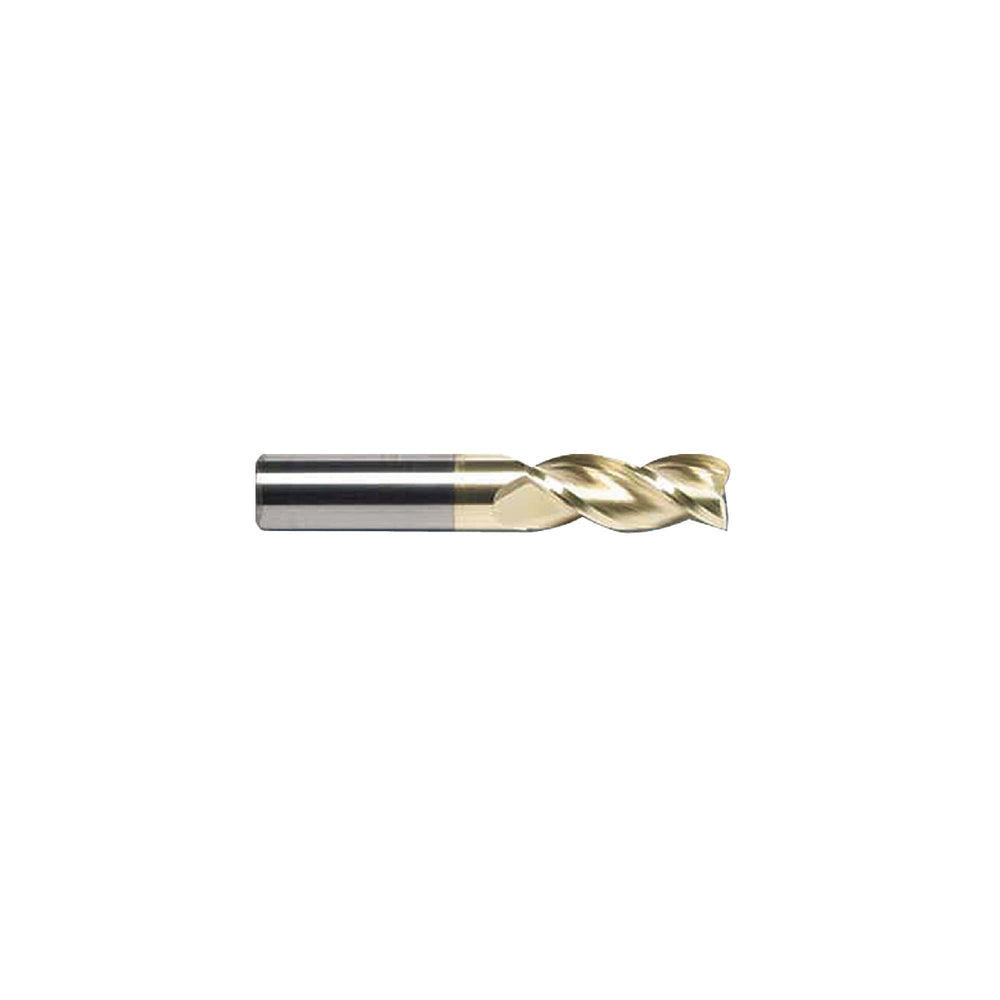

RUSHMORE USA 105720 8.00mm Size, 19.00mm LOC, 3 Flute, ZrN Solid Carbide Finishing End Mill
by Rushmore USA
$53.70 USD
SKU 28-100-077
| Product Specifications | |
|---|---|
| Brand | RUSHMORE USA |
| Shank Diameter | 8.00mm |
| Overall Length | 65.00mm |
| Finish Coating | ZrN |
| Size Type | Metric |
| Size | 8.00mm |
| No. of Flutes | 3 |
| Length of Cut | 19.00mm |
| Tool Material | Solid Carbide |
| Single or Double End | Single |
| Helix Angle | 37° |
| Center Cutting | Yes |
| Corner Radius | 0 |
| Coolant Through | No |
| Model # | 105720 |
| Cutting Direction | Right Hand |
| First Choice For: | Non-Ferrous |
| Flute Shape | Spiral Flute |
| Prop. 65 | Yes |
| Shank Style | Straight Shank |
| Tolerance_Cutting Diameter | +.000/-.002 |
| UNSPSC | 27112803 |
| Weight | 0.625 lbs. |
| Workpiece Material | Aluminum & Non-Ferrous Materials |
| Workpiece Material Range | Non-Ferrous, Plastics |
| Country of Origin | UNITED STATES OF AMERICA |
WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Maximum metal removal
Benefits
- Cutting tool geometry to prevent most failures from aluminum sticking to the carbide cutting edge.
- Flute polish for better chip evacuation & higher metal removal rates.
- Edge prep for reduced chatter.
- Open gash end for better chip evacuation.
- Higher helix for increased chip evacuation & better shearing.
- ZrN coating for increased tool life & lubricity.
- This produces an end mill that provides reduced cutting forces & superior finishes.
Applications
Milling AluminumFeatures
- 10% premium micrograin carbide.
- Unique geometry.
