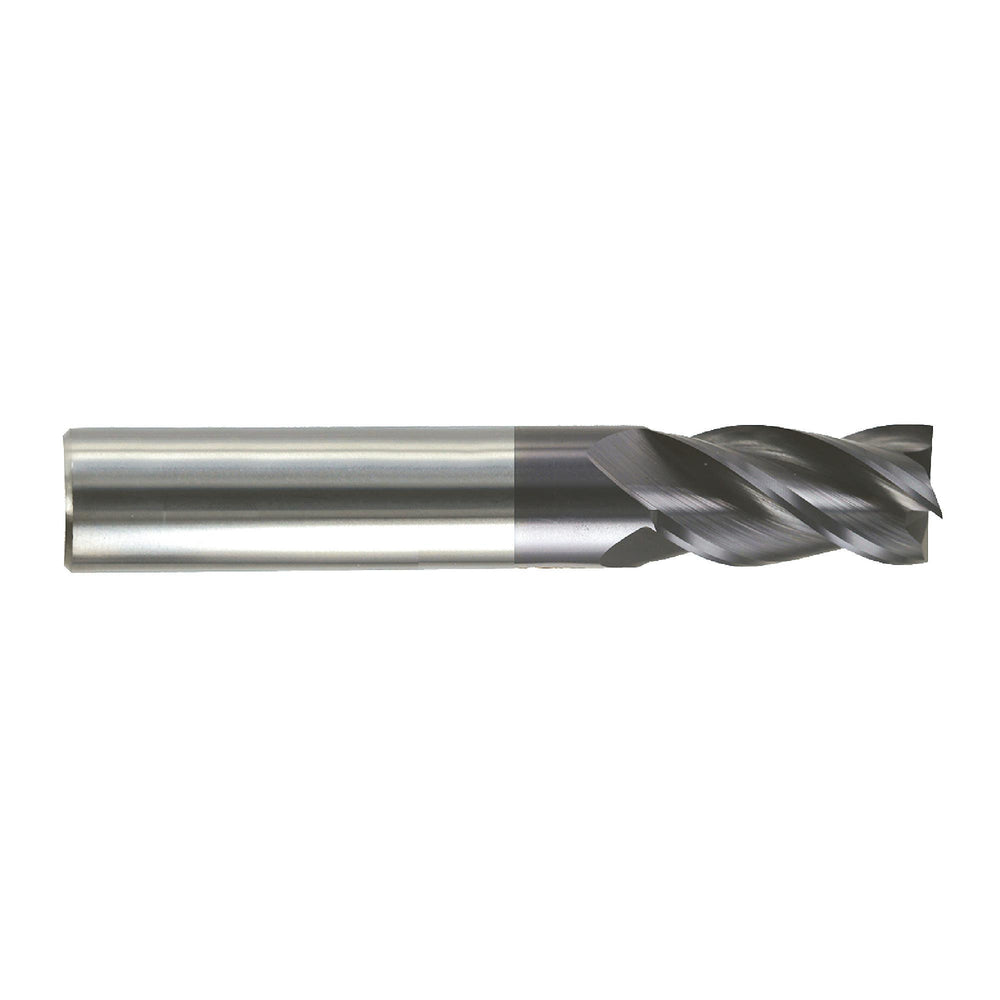

RUSHMORE USA 105695 3/16" Size, 5/8" LOC, 4 Flute, AlCrTiN Solid Carbide Finishing End Mill

$30.41 USD
SKU 20-537-012
Product Specifications
Brand RUSHMORE USA
Shank Diameter 3/16"
Overall Length 2"
Finish Coating AlCrTiN
Size Type Fractional
Size 3/16"
No. of Flutes 4
Length of Cut 5/8"
Tool Material Solid Carbide
Single or Double End Single
Helix Angle Variable
Center Cutting Yes
Corner Radius 0
Coolant Through No
Model # 105695
Application High Performance Milling At An Economical Price
Cutting Direction Right Hand
Cutting End Shape Square
First Choice For: High Temp Exotic Alloys
Flute Form Variable Index
Flute Shape Spiral Flute
Prop. 65 Yes
Shank Style Straight Shank
UNSPSC 27112803
Weight 0.033 lbs.
Workpiece Material Aluminum, Carbon Steel, Steel, Stainless Steel, Inconel, Monel, Titanium
Workpiece Material Range Steel, Stainless Steel, High-Temp Exotic Alloys, Non-Ferrous, Cast Iron, Hard Materials, Plastics
Country of Origin UNITED STATES OF AMERICA

Prop 65 Warning

WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov

Variable Length AlCrTiN Coated Single End Mills from Rushmore. Listed here are single-end mills available in regular length, long length, and extra-long length to minimize chatter. The tool is made from the highest quality carbide for peripheral, slotting, plunging, slotting, helical machining on all materials. Solid carbide construction makes the tool more wear-resistant at high speeds. These single-end mills are offered with a four-flute, spiral design with an unusual 37-degree helix angle and a round shank. 37-degree helix angle wraps around the tool moderately fast and enhances chip evacuation. The end mill's four flutes allow faster removal of chips while cooling fluids enter easily. The high aluminum content with AlCrTiN coating contributed to tool wear reduction, increased machining surface quality, and bur minimization. The center-cutting design has cutting teeth at the end of the tool, thus fed into the workpiece like a drill bit. The overall tool length ranges between 6 inches and under. The regular length tool is available in 8 different sizes ranging from 1/8 inch to 3/4 inch. The long length and extra-long length tool are available in 5 different sizes ranging from 1/8 inch to 1/2 inch. Rushmore USA single-end mills comply with all standards and specifications. It is produced from the highest quality carbide to meet your manufacturing needs. Rushmore's tools are perfect for all aerospace, medical, automotive, or production machining solutions. Travers Tools offers a wide range of Rushmore USA Tools that undergo a strict quality check before they are listed on the product catalog. This USA Made brand offers quality affordable American-made tooling with the superior speed and feed that your applications require.
Variable index to reduce chatter

Benefits

  • Advanced tool geometry and extended reach for a variety of applications and materials up to < 54HRc.

Applications

High Performance Milling At An Economical Price

Features

  • Supplied with edge prep.
  • Moderately fast 37° helix.
