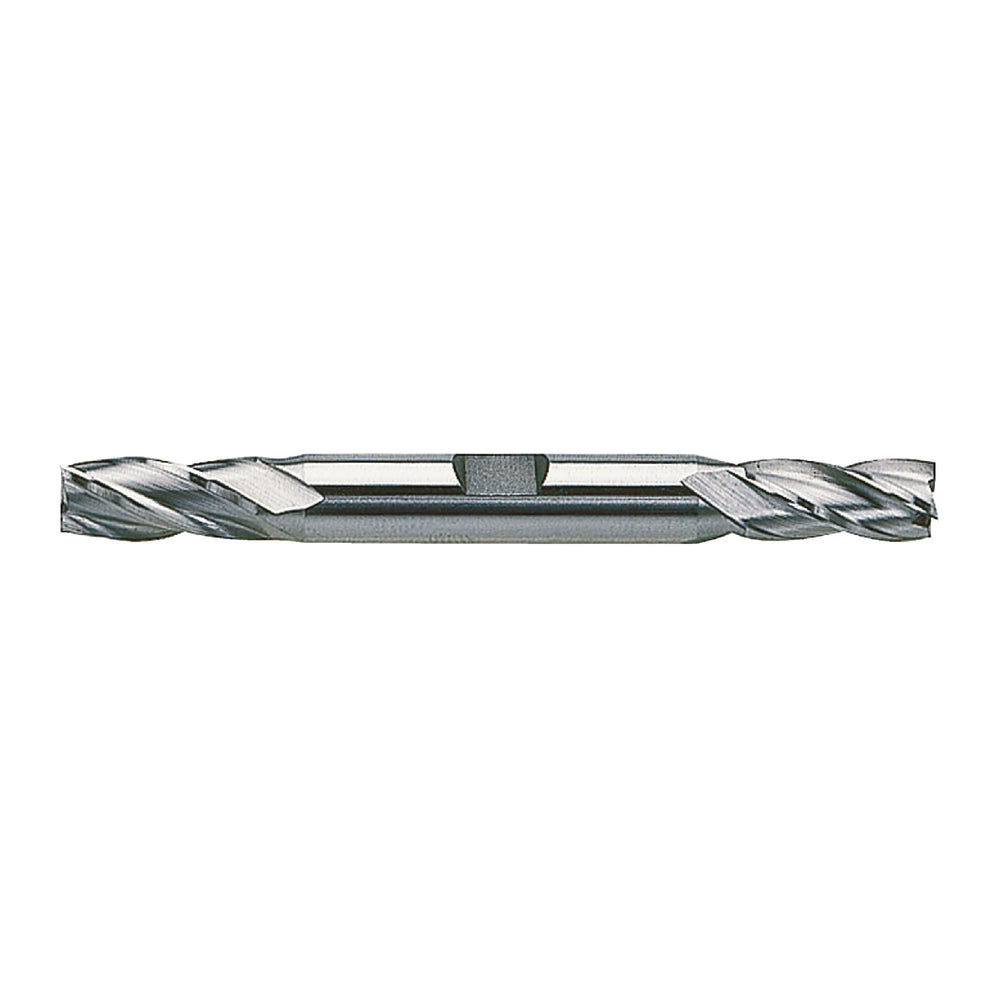

RUSHMORE USA 105682 3/16" Size, 1/2" LOC, 4 Flute, Bright M42 8% Cobalt Finishing End Mill
by Rushmore USA
$41.02 USD
SKU 08-258-012
| Product Specifications | |
|---|---|
| Brand | RUSHMORE USA |
| Shank Diameter | 3/8" |
| Overall Length | 3-1/4" |
| Finish Coating | Bright |
| Size Type | Fractional |
| Size | 3/16" |
| No. of Flutes | 4 |
| Length of Cut | 1/2" |
| Tool Material | M42 8% Cobalt |
| Single or Double End | Double |
| Helix Angle | 30° |
| Center Cutting | Yes |
| Corner Radius | 0 |
| Coolant Through | No |
| Model # | 105682 |
| Application | Milling |
| Cutting Direction | Right Hand |
| Cutting End Shape | Square |
| First Choice For: | Stainless Steel |
| Flute Shape | Spiral Flute |
| Hardness | 58 to 60 RC |
| Prop. 65 | Yes |
| Shank Style | Straight Shank |
| UNSPSC | 27112803 |
| Weight | 0.125 lbs |
| Workpiece Material | Steel And Cost Effective For Machining Titanium Alloys, Cast Iron, & Heat Treated Materials |
| Workpiece Material Range | Steel, Stainless Steel, Non-Ferrous, Cast Iron, Plastics |
| Country of Origin | UNITED STATES OF AMERICA |
WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Applications
MillingFeatures
- Right hand (clockwise rotation) cutting direction.
- Made as four flute, double ended, spiral flute cutters.
- Sized to offer good rigidity.
- The spiral flute design offers a faster and smoother cutting action.
- The end cutting edges are ground to permit these end mills to be center cutting.
