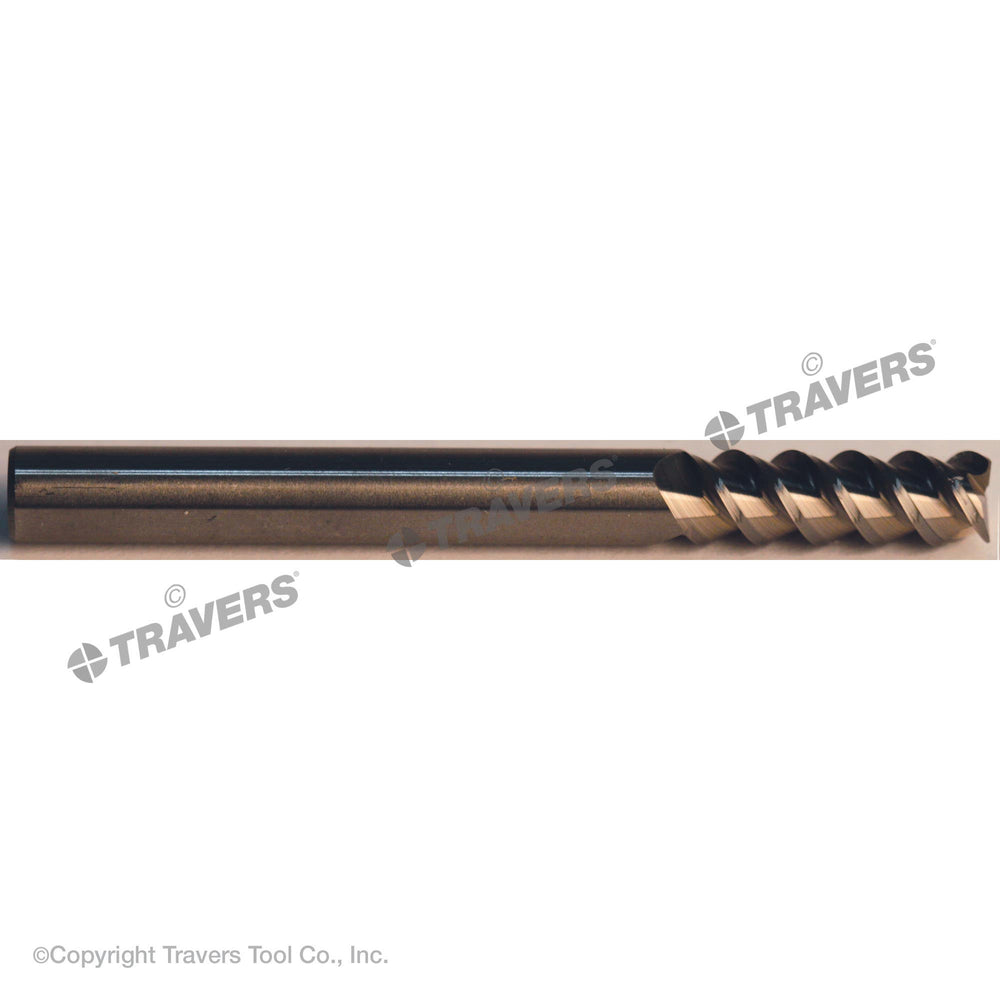

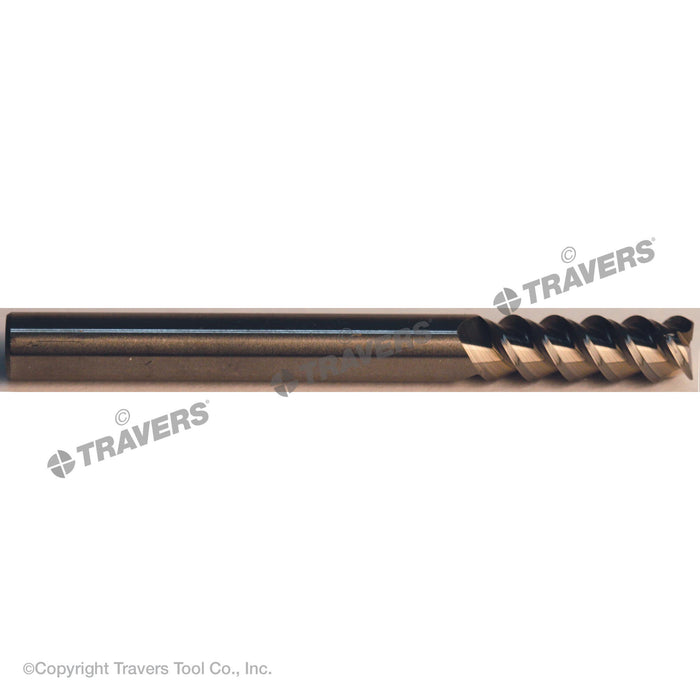

RUSHMORE USA 105621 1/2" Size, 1" LOC, 3 Flute, Bright Solid Carbide Finishing End Mill
by Rushmore USA
$74.05 USD
SKU 28-500-006
| Product Specifications | |
|---|---|
| Brand | RUSHMORE USA |
| Shank Diameter | 1/2" |
| Overall Length | 3" |
| Finish Coating | Bright |
| Size Type | Fractional |
| Size | 1/2" |
| No. of Flutes | 3 |
| Length of Cut | 1" |
| Tool Material | Solid Carbide |
| Single or Double End | Single |
| Helix Angle | 60° |
| Center Cutting | Yes |
| Type | 3 Flute 60° Helix Carbide Single End Mill |
| Corner Radius | 0 |
| End Type | Square |
| Model # | 105621 |
| Application | 3 flute 60° helix end mills are best suited for aggressive machining of aircraft/aerospace materials, stainless steels, high-alloy carbon steels, nickel-based high-temp alloys and titanium alloys. |
| Coating | Uncoated |
| Cutting Direction | Right Hand |
| Cutting End Shape | Square |
| First Choice For: | Steel |
| Flute Shape | Spiral Flute |
| Hardness | 92Rc |
| Helix Direction | Right Hand |
| Length Type | Standard Length |
| Overall Length 2 | 3" |
| Package Qty | 1 |
| Prop. 65 | Yes |
| Tolerance_Cutting Diameter | +.000/-.002" |
| Tolerance_Shank Diameter | +.0000" / -.0003" |
| Tooth Geometry | 3 Flute 60° |
| UNSPSC | 27112803 |
| Weight | 0.0325 lbs. |
| Workpiece Material | Ferrous Materials |
| Workpiece Material Range | Steel, Stainless Steel, High-Temp Exotic Alloys, Cast Iron, Hard Materials |
| Country of Origin | UNITED STATES OF AMERICA |
WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Very aggressive material removal with high chip evacuation
Benefits
- Provides outstanding surface finish.
Applications
3 flute 60° helix end mills are best suited for aggressive machining of aircraft/aerospace materials, stainless steels, high-alloy carbon steels, nickel-based high-temp alloys and titanium alloys.Features
- Keeps a cutting edge engaged in the material throughout the cutting process.
