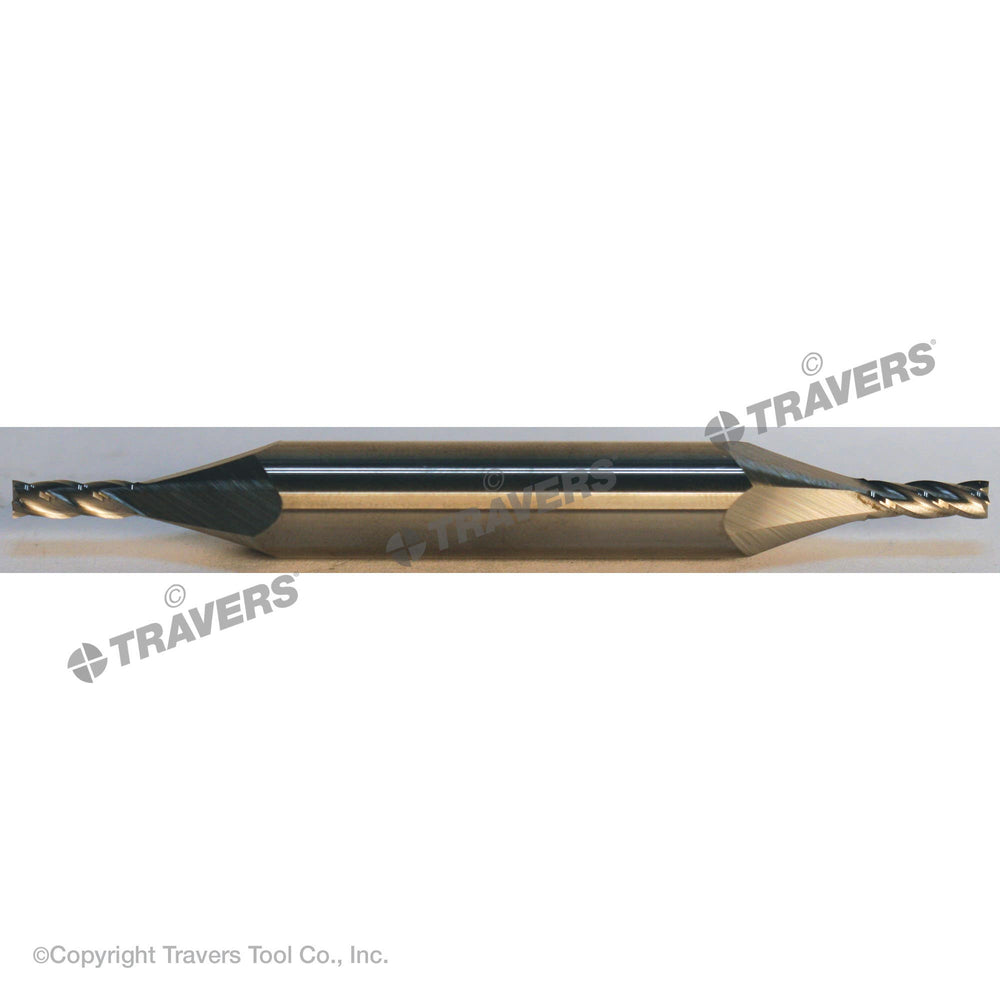

RUSHMORE USA 103092 5/32" Size, 7/16" LOC, 4 Flute, Bright Solid Carbide Finishing End Mill
by Rushmore USA
$52.20 USD
SKU 20-508-010
| Product Specifications | |
|---|---|
| Brand | RUSHMORE USA |
| Shank Diameter | 3/8" |
| Overall Length | 3" |
| Finish Coating | Bright |
| Size Type | Fractional |
| Size | 5/32" |
| No. of Flutes | 4 |
| Length of Cut | 7/16" |
| Tool Material | Solid Carbide |
| Single or Double End | Double |
| Helix Angle | 30° |
| Center Cutting | Yes |
| Type | 4 Flute Spiral Regular Length Micrograin Solid Carbide Double End Mill |
| Corner Radius | 0 |
| Model # | 103092 |
| Cutting Direction | Right Hand |
| First Choice For: | Steel |
| Flute Shape | Spiral Flute |
| Length Type | Standard Length |
| Prop. 65 | Yes |
| Series | 1508 |
| Tolerance_Cutting Diameter | + .000"/ - .002" |
| Tolerance_Shank Diameter | +.0000" / -.0005" |
| UNSPSC | 27112803 |
| Weight | 0.025 lbs. |
| Workpiece Material Range | Steel, Stainless Steel, High-Temp Exotic Alloys, Non-Ferrous, Cast Iron, Hard Materials, Plastics |
| Country of Origin | UNITED STATES OF AMERICA |
WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Longer shank diameter adds rigidity
Benefits
- Smaller grains of carbide, provide tougher and stronger tool thus providing longer tool life and better surface finish.
Applications
- Additional flutes allow for faster feeds but chip removal may be a problem due to the reduced flute space.
- Also produces a finer finish than 2 or 3 flute tools.
- Ideal for peripheral & finish milling.
Features
- Longer length than stub length.
