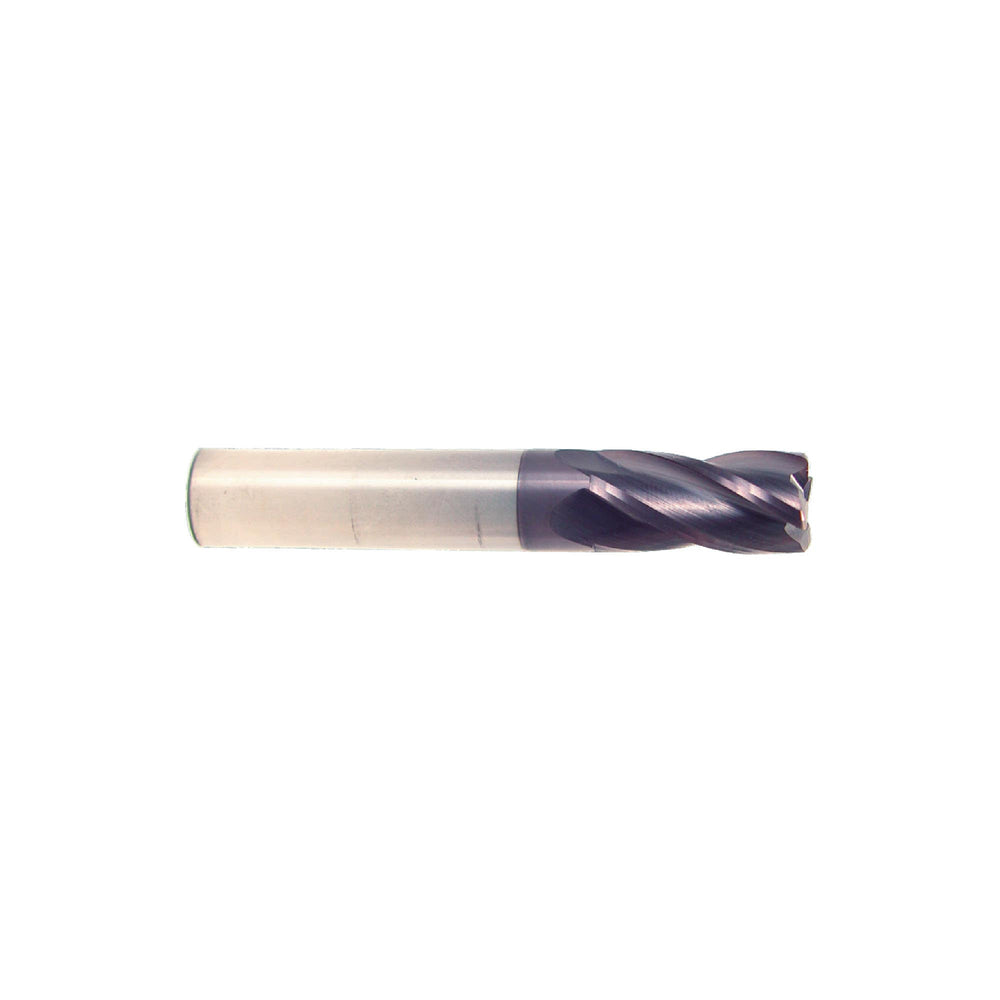

RUSHMORE USA 102947 3/4" Size, 1-1/2" LOC, 4 Flute, AlTiN Solid Carbide Finishing End Mill
by Rushmore USA
$204.25 USD
SKU 20-503-474
| Product Specifications | |
|---|---|
| Brand | RUSHMORE USA |
| Shank Diameter | 3/4" |
| Overall Length | 4" |
| Finish Coating | AlTiN |
| Size Type | Fractional |
| Size | 3/4" |
| No. of Flutes | 4 |
| Length of Cut | 1-1/2" |
| Tool Material | Solid Carbide |
| Single or Double End | Single |
| Helix Angle | 30° |
| Center Cutting | Yes |
| Type | 4 Flute Corner Radius TiAlN Coated Solid Carbide End Mill |
| Corner Radius | .125" |
| Model # | 102947 |
| Application | Used to produce a radius in the corner of a slot or pocket. |
| Coating | ALTIN |
| Cutting Direction | Right Hand |
| First Choice For: | Stainless Steel |
| Flute Shape | Spiral Flute |
| Helix Direction | Right Hand |
| Prop. 65 | Yes |
| Tolerance_Cutting Diameter | +0 / -.002" |
| UNSPSC | 27112803 |
| Weight | 1.07 lbs. |
| Workpiece Material | High temperature exotic materials & high cobalt & high nickel alloys |
| Workpiece Material Range | Steel, Stainless Steel, High-Temp Exotic Alloys, Non-Ferrous, Cast Iron, Hard Materials, Plastics |
| Country of Origin | UNITED STATES OF AMERICA |
WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Corner radius allows more strength & minimizes chipping
Benefits
- Eliminates standard end mill alterations.
- AlTiN coating provides longer tool life and better performance on harder materials.
- 4 flutes allow for faster feeds at the expense of chip removal however produces a finer finish than two or three flute end mills.
