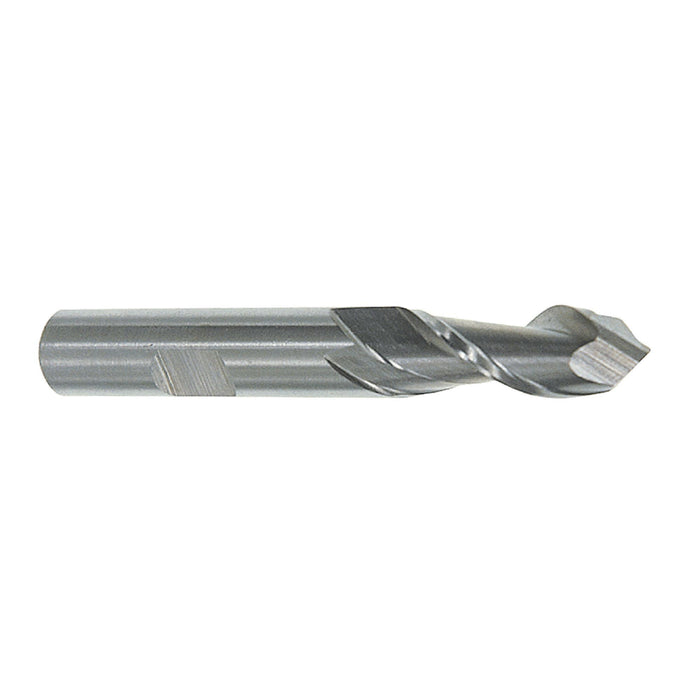

RUSHMORE USA 100422 1/4" Size, 5/8" LOC, 2 Flute, 90° Point Angle, High Speed Steel Drill Mill
by Rushmore USA
$29.26 USD
SKU 08-052-500
| Product Specifications | |
|---|---|
| Brand | RUSHMORE USA |
| Shank Diameter | 3/8" |
| Overall Length | 2-7/16" |
| Finish Coating | Bright |
| Size Type | Fractional |
| Size | 1/4" |
| No. of Flutes | 2 |
| Length of Cut | 5/8" |
| Tool Material | High Speed Steel |
| Type | 2 Flute 90° Angle "Drill-Mill" Single End Mill |
| Point Angle | 90° |
| Model # | 100422 |
| Application | Performs many drilling & milling operations not presently done with the standard end mill including drilling, slotting, NC milling and profile milling. |
| First Choice For: | Non-Ferrous |
| Hardness | 58 to 60 RC |
| Helix Angle & Style | 90° |
| Material To Be Machined | Aluminum |
| Prop. 65 | Yes |
| Series | D19 |
| Weight | 0.169 lbs. |
| Workpiece Material Range | Steel, Non-Ferrous, Cast Iron, Plastics |
| Country of Origin | UNITED STATES OF AMERICA |
