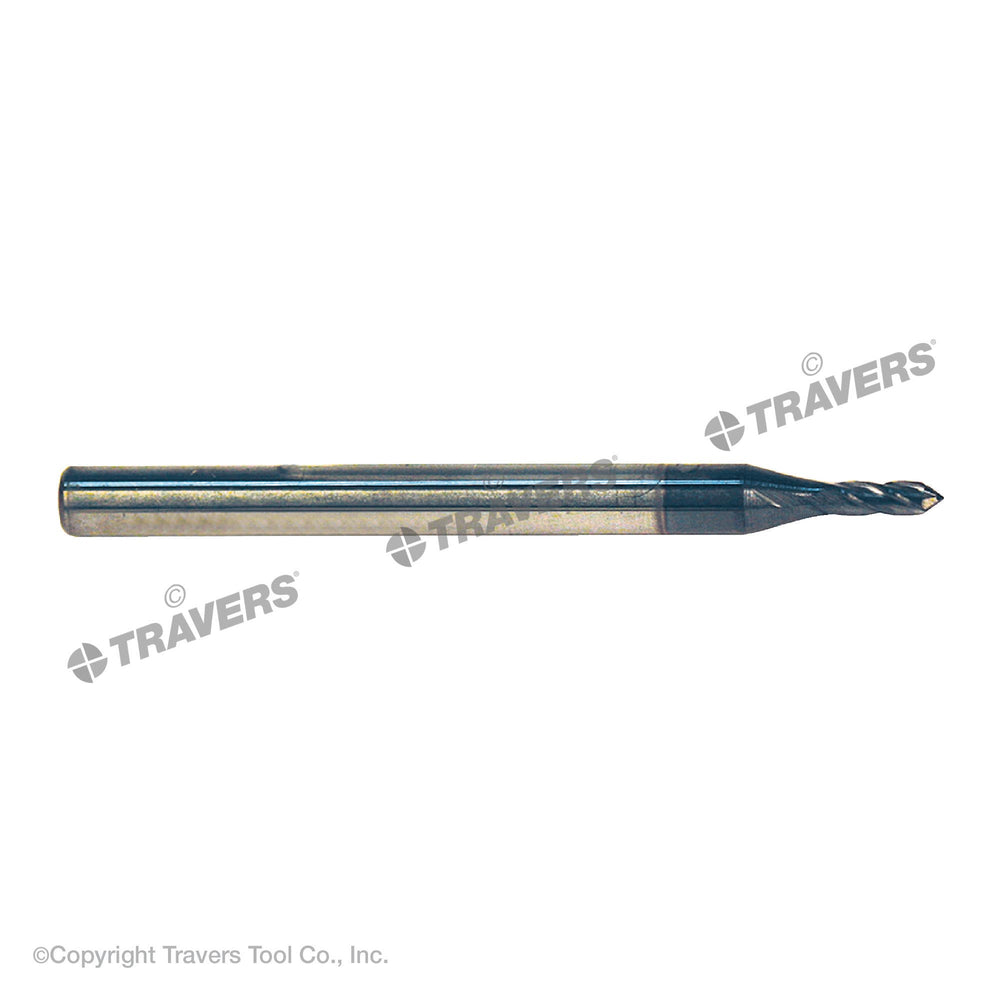

RUSHMORE USA 105693 3/32" Size, 3/8" LOC, 4 Flute, 90° Point Angle, Solid Carbide Drill Mill
Product Specifications | |
---|---|
Brand | RUSHMORE USA |
Shank Diameter | 1/8" |
Overall Length | 1-1/2" |
Finish Coating | AlTiN |
Size Type | Fractional |
Size | 3/32" |
No. of Flutes | 4 |
Length of Cut | 3/8" |
Tool Material | Solid Carbide |
Helix Angle | 30° |
Type | Multi-Use Solid Carbide Single End Drill Mill |
Point Angle | 90° |
Model # | 105693 |
Application | Chamfering, Spotting, Drilling, Countersinking & Side Milling |
Coating | ALTIN |
Cutting Direction | Right Hand |
First Choice For: | Stainless Steel |
Prop. 65 | Yes |
Shank Style | Straight Shank |
Weight | .005 lbs. |
Workpiece Material | Steel, Cast Iron, Non-Ferrous, <HRc48 |
Country of Origin | UNITED STATES OF AMERICA |
WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Applications
Chamfering, Spotting, Drilling, Countersinking & Side MillingFeatures
- CNC ground.
- 2 or 4 flute design.
- 4 flute design allows for faster speeds & feeds and is self-centering (less walking).
