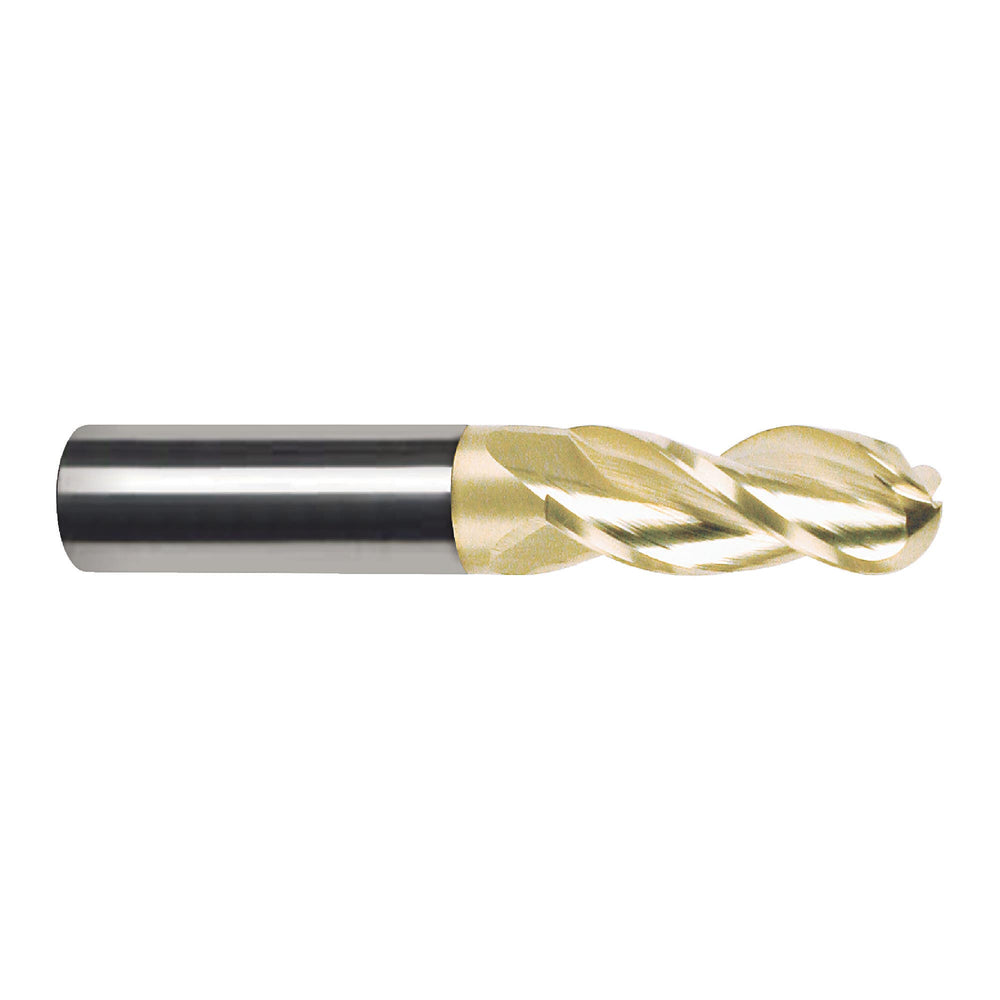

RUSHMORE USA 315250 3/8" Size, 1" LOC, 3 Flute, Solid Carbide Ball End Mill
by Rushmore USA
$61.20 USD
SKU 28-100-316
| Product Specifications | |
|---|---|
| Brand | RUSHMORE USA |
| Shank Diameter | 3/8" |
| Overall Length | 2-1/2" |
| Finish Coating | ZrN |
| Size Type | Fractional |
| Size | 3/8" |
| No. of Flutes | 3 |
| Length of Cut | 1" |
| Tool Material | Solid Carbide |
| Single or Double End | Single |
| Helix Angle | 37° |
| Center Cutting | Yes |
| Type | 3 Flute Ball End Mill For Aluminum |
| Model # | 315250 |
| Cutting Direction | Right Hand |
| Cutting End Shape | Ball |
| First Choice For: | Non-Ferrous |
| Flute Shape | Spiral |
| Prop. 65 | Yes |
| Shank Style | Straight Shank |
| Tolerance_Cutter Diameter | +.000" / -.002" |
| Tolerance_Shank Diameter | -.0001" / -.0004" |
| UNSPSC | 27112803 |
| Weight | 0.03 lbs. |
| Workpiece Material Range | Non-Ferrous, Plastics |
| Country of Origin | UNITED STATES OF AMERICA |
WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Longer tool life for performance machining
Benefits
- Cutting tool geometry to prevent most failures from aluminum sticking to the carbide cutting edge.
- Flute polish for better chip evacuation & higher metal removal rates.
- Edge prep for reduced chatter.
- Open gash end for better chip evacuation.
- Higher helix for increased chip evacuation & better shearing.
- ZrN coating for increased tool life & lubricity.
- End mill provides reduced cutting forces & superior finishes.
Features
- 10% premium micrograin carbide.
- Unique geometry.
