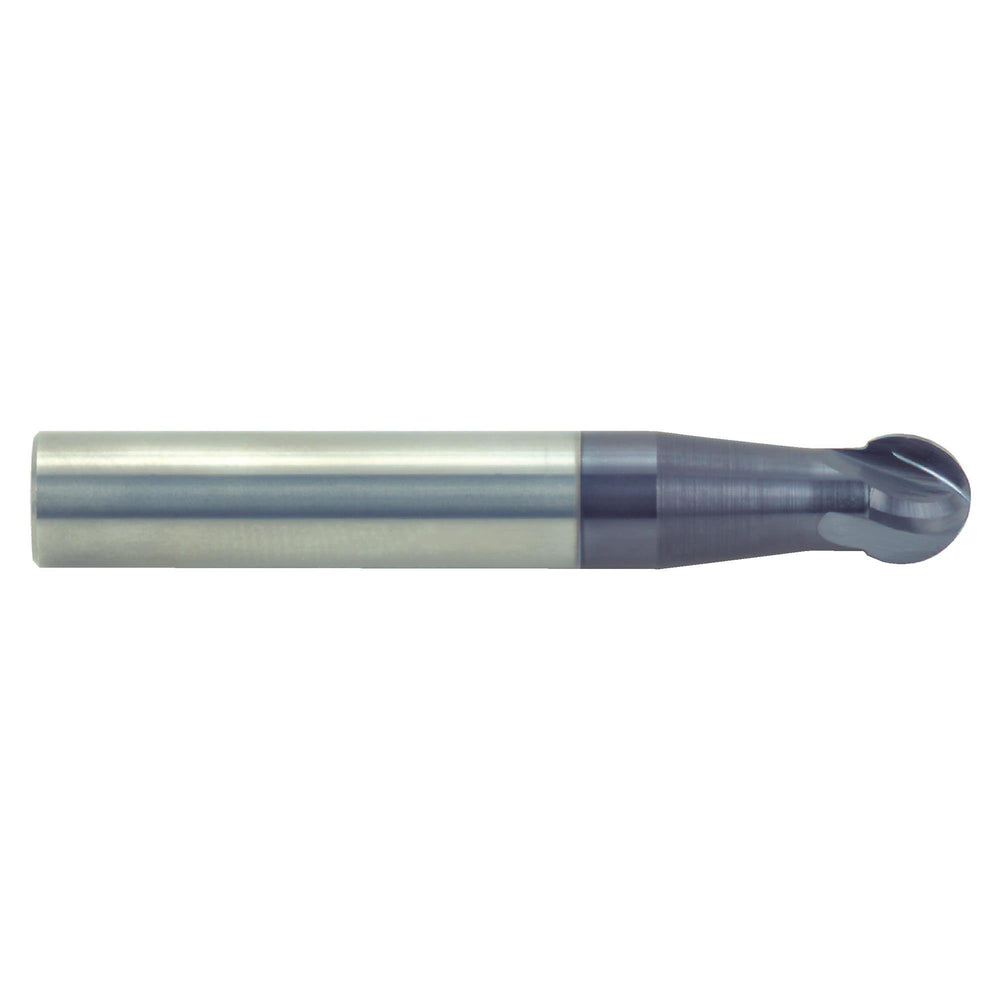

RUSHMORE USA 103634 3/8" Size, 9/32" LOC, 4 Flute, Solid Carbide Ball End Mill
by Rushmore USA
$60.87 USD
SKU 20-606-203
| Product Specifications | |
|---|---|
| Brand | RUSHMORE USA |
| Shank Diameter | 3/8" |
| Overall Length | 2-1/2" |
| Finish Coating | AlTiN |
| Size Type | Fractional |
| Size | 3/8" |
| No. of Flutes | 4 |
| Length of Cut | 9/32" |
| Tool Material | Solid Carbide |
| Single or Double End | Single |
| Helix Angle | 30° |
| Center Cutting | Yes |
| Type | 4 Flute Solid Carbide Spherical Ball End AlTiN Coated Single End Mill |
| End Type | Ball Single End |
| Model # | 103634 |
| Application | High performance end mills used in the mold industry. Used for high temperature cutting on mold steels, such as titanium and nickel alloys. Ideal for small depth of cut and high speed & dry machining. |
| Drill Point Angle | 220° |
| First Choice For: | Stainless Steel |
| Flute Shape | Helix |
| OC_High Temp | X |
| Prop. 65 | Yes |
| Shank Style | Straight Shank |
| Tolerance_Cutting Diameter | +.000" / -.002" |
| UNSPSC | 27112803 |
| Weight | 0.1312 lbs. |
| Workpiece Material | Used for high temperature cutting on mold steels,such as titanium and nickel alloys. |
| Workpiece Material Range | Steel, Stainless Steel, High-Temp Exotic Alloys, Non-Ferrous, Cast Iron, Hard Materials, Plastics |
| Country of Origin | UNITED STATES OF AMERICA |
WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
High performance
Benefits
- AlTiN coated for increased tool life.
Applications
High performance end mills used in the mold industry. Used for high temperature cutting on mold steels, such as titanium and nickel alloys. Ideal for small depth of cut and high speed & dry machining.Features
- Full 220° arc cutting capability.
- Made from premium submicron grain carbide.
- Neck diameter reduced for clearance.
- Long reach tools available for deep milling applications.
