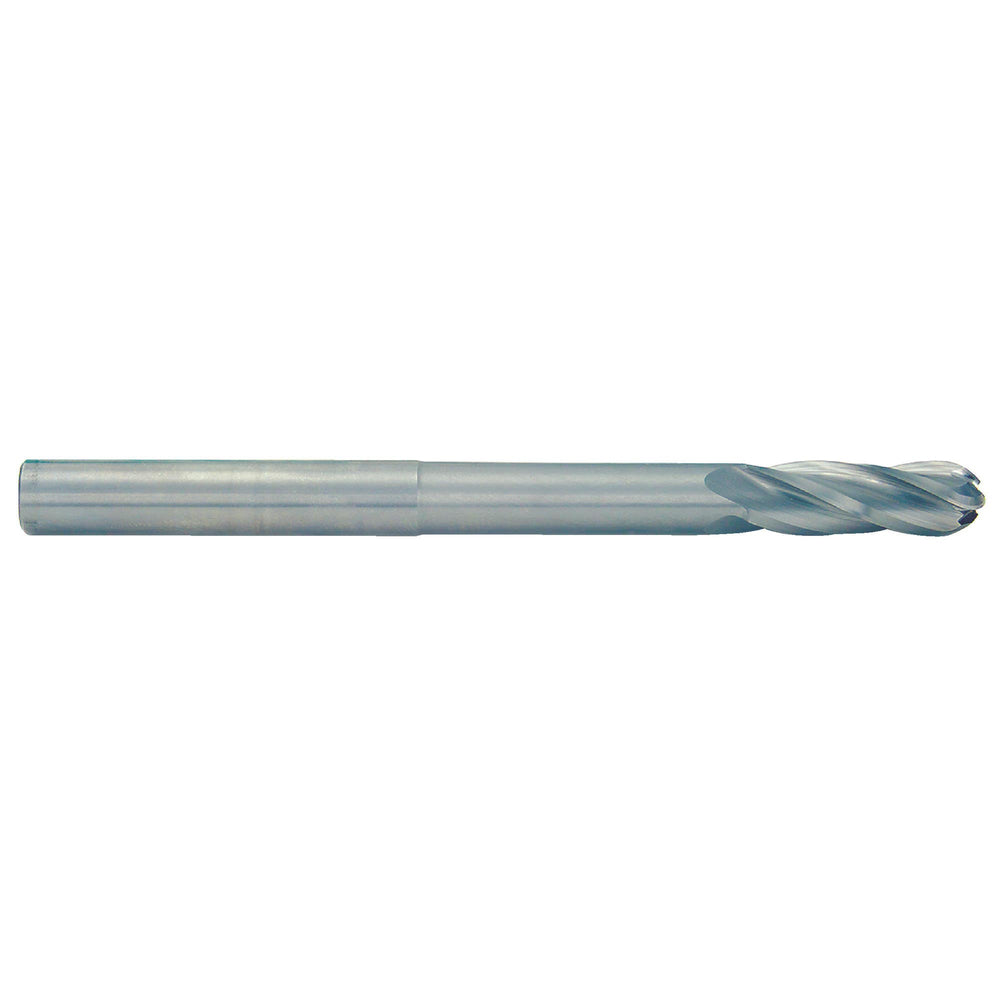

RUSHMORE USA 103630 1" Size, 2" LOC, 4 Flute, Solid Carbide Ball End Mill
by Rushmore USA
$459.78 USD
SKU 20-606-157
| Product Specifications | |
|---|---|
| Brand | RUSHMORE USA |
| Shank Diameter | 1" |
| Overall Length | 6" |
| Finish Coating | Bright |
| Size Type | Fractional |
| Size | 1" |
| No. of Flutes | 4 |
| Length of Cut | 2" |
| Tool Material | Solid Carbide |
| Single or Double End | Single |
| Helix Angle | 30° |
| Center Cutting | Yes |
| Type | 4 Flute Ball End Long Reach Undercut Shank Micrograin Solid Carbide Single End Mill |
| Neck Length | 1-1/2" |
| Model # | 103630 |
| Application | Designed especially for the moldmaking industry. For milling deep pockets or slots where long flute lengths are not needed. |
| Cutting Direction | Right Hand |
| First Choice For: | Steel |
| Flute Shape | Helix |
| Helix Angle & Style | 30° Helix |
| Prop. 65 | Yes |
| Shank Style | Long Reach Undercut Shank |
| Tolerance_Cutting Diameter | +.000" / -.002" |
| Tolerance_Mill Diameter | +.000" / -.002" |
| Tolerance_Shank Diameter | -.0001" / -.0004" |
| UNSPSC | 27112803 |
| Weight | 0.91 lbs. |
| Workpiece Material Range | Steel, Stainless Steel, High-Temp Exotic Alloys, Non-Ferrous, Cast Iron, Hard Materials, Plastics |
| Country of Origin | UNITED STATES OF AMERICA |
WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
The solid neck area provides reach with maximum rigidity
Applications
Designed especially for the moldmaking industry. For milling deep pockets or slots where long flute lengths are not needed.Features
- Neck diameter reduced by .020" for clearance.
- 10% cobalt micrograin carbide.
