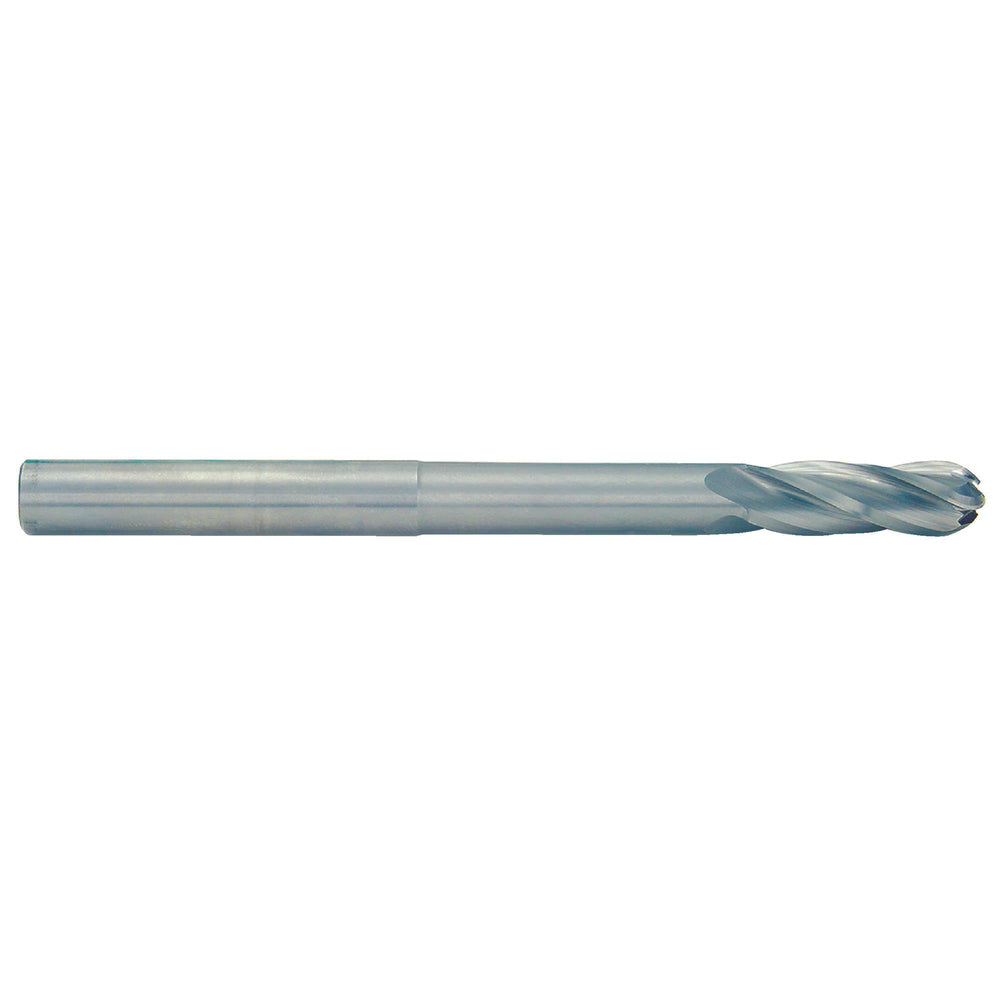

RUSHMORE USA 103621 3/8" Size, 1" LOC, 4 Flute, Solid Carbide Ball End Mill
Product Specifications | |
---|---|
Brand | RUSHMORE USA |
Shank Diameter | 3/8" |
Overall Length | 4" |
Finish Coating | Bright |
Size Type | Fractional |
Size | 3/8" |
No. of Flutes | 4 |
Length of Cut | 1" |
Tool Material | Solid Carbide |
Single or Double End | Single |
Helix Angle | 30° |
Center Cutting | Yes |
Type | 4 Flute Ball End Long Reach Undercut Shank Micrograin Solid Carbide Single End Mill |
Neck Length | 1-3/8" |
Model # | 103621 |
Application | Designed especially for the moldmaking industry. For milling deep pockets or slots where long flute lengths are not needed. |
Cutting Direction | Right Hand |
Cutting Length | 1 |
First Choice For: | Steel |
Flute Shape | Helix |
Helix Angle & Style | 30° Helix |
Prop. 65 | Yes |
Shank Style | Long Reach Undercut Shank |
Tolerance_Cutting Diameter | +.000" / -.002" |
Tolerance_Mill Diameter | +.000" / -.002" |
Tolerance_Shank Diameter | -.0001" / -.0004" |
UNSPSC | 27112803 |
Weight | 0.1 lbs. |
Workpiece Material Range | Steel, Stainless Steel, High-Temp Exotic Alloys, Non-Ferrous, Cast Iron, Hard Materials, Plastics |
Country of Origin | UNITED STATES OF AMERICA |
WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Applications
Designed especially for the moldmaking industry. For milling deep pockets or slots where long flute lengths are not needed.Features
- Neck diameter reduced by .020" for clearance.
- 10% cobalt micrograin carbide.
