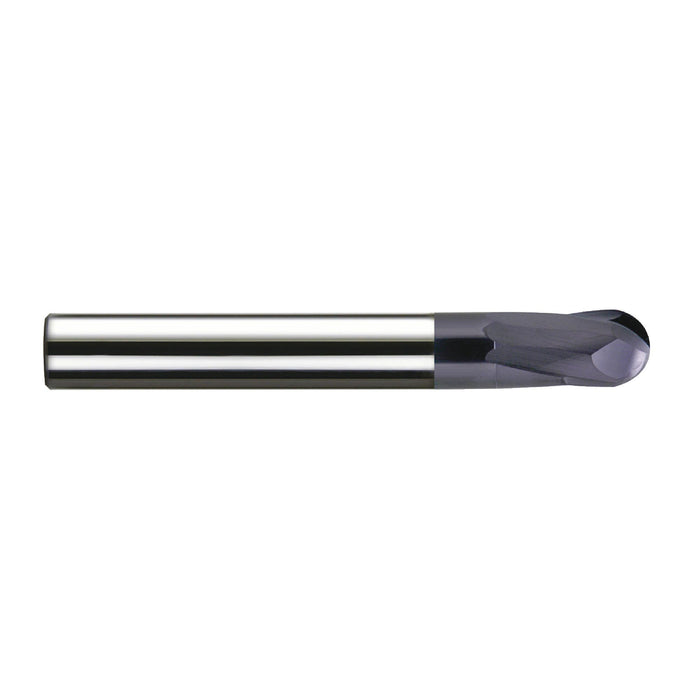

RUSHMORE USA 103561 3/8" Size, 3/8" LOC, 2 Flute, Solid Carbide Ball End Mill

$67.56 USD
SKU 20-605-224
Product Specifications
Brand RUSHMORE USA
Shank Diameter 3/8"
Overall Length 4"
Finish Coating nACo Coated
Size Type Fractional
Size 3/8"
No. of Flutes 2
Length of Cut 3/8"
Tool Material Solid Carbide
Single or Double End Single
Helix Angle 15°
Center Cutting Yes
Type 2 Flute Solid Carbide Ball End Mill
End Type Ball Single End
Model # 103561
Application For die & mold milling of radius bottom slots, fillets & special contours
Coating nACo Coated
Cutting Direction Right Hand
Cutting End Shape Ball
First Choice For: Hard Materials
Prop. 65 Yes
Shank Style Straight Shank
Tolerance_Cutting Diameter +000" / -002"
UNSPSC 27112803
Weight 0.315 lbs.
Workpiece Material Hardened Materials: Steel, Stanless Steel, High Temp Alloys
Workpiece Material Range Steel, Stainless Steel, High-Temp Exotic Alloys, Hard Materials
Country of Origin UNITED STATES OF AMERICA

Prop 65 Warning

WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov

Benefits

  • nACo is a extremely hgh heat resistance coating with high nonohardness.
  • Coating consists of Nano crystaline AlTiN grains.

Applications

For die & mold milling of radius bottom slots, fillets & special contours

Features

  • 15° helix angle.
