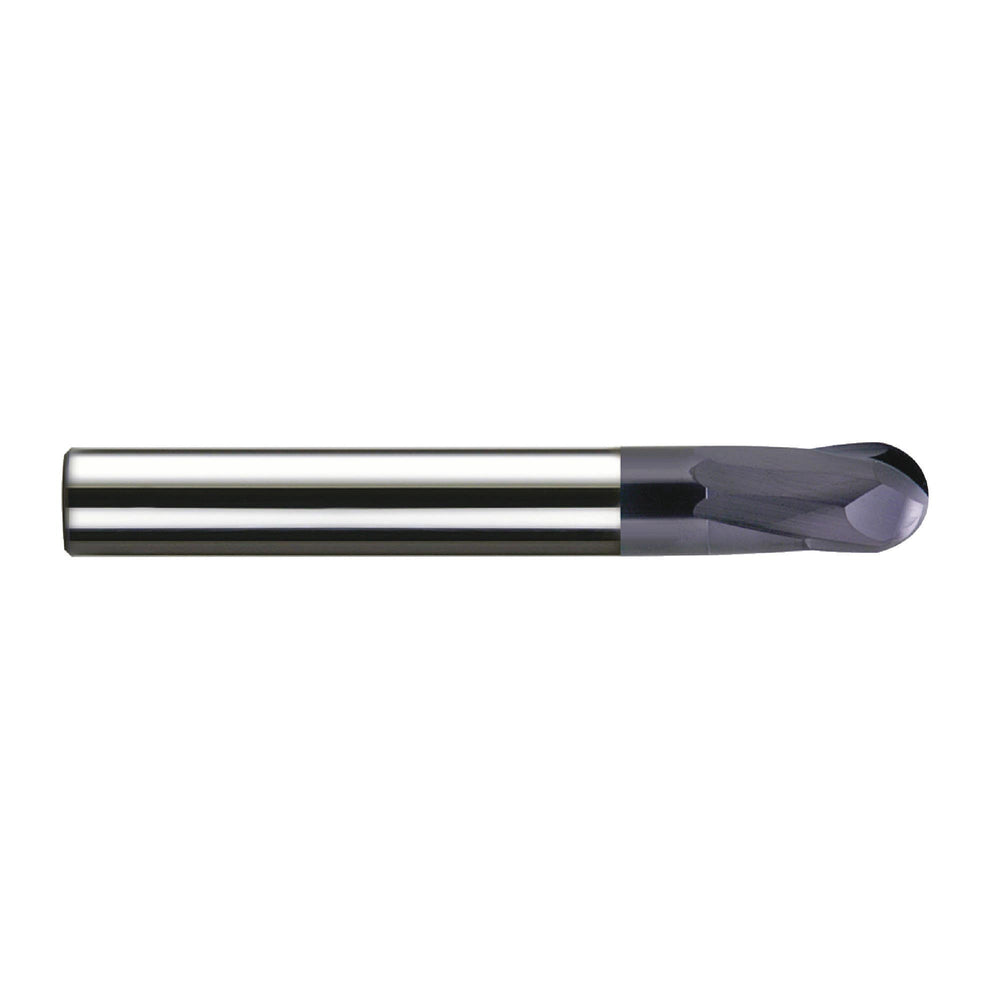

RUSHMORE USA 103559 1/4" Size, 1/4" LOC, 2 Flute, Solid Carbide Ball End Mill
by Rushmore USA
$43.42 USD
SKU 20-605-216
| Product Specifications | |
|---|---|
| Brand | RUSHMORE USA |
| Shank Diameter | 1/4" |
| Overall Length | 3" |
| Finish Coating | nACo Coated |
| Size Type | Fractional |
| Size | 1/4" |
| No. of Flutes | 2 |
| Length of Cut | 1/4" |
| Tool Material | Solid Carbide |
| Single or Double End | Single |
| Helix Angle | 15° |
| Center Cutting | Yes |
| Type | 2 Flute Solid Carbide Ball End Mill |
| End Type | Ball Single End |
| Model # | 103559 |
| Application | For die & mold milling of radius bottom slots, fillets & special contours |
| Coating | nACo Coated |
| Cutting Direction | Right Hand |
| Cutting End Shape | Ball |
| First Choice For: | Hard Materials |
| Prop. 65 | Yes |
| Shank Style | Straight Shank |
| Tolerance_Cutting Diameter | +000" / -002" |
| UNSPSC | 27112803 |
| Weight | 0.15 lbs. |
| Workpiece Material | Hardened Materials: Steel, Stanless Steel, High Temp Alloys |
| Workpiece Material Range | Steel, Stainless Steel, High-Temp Exotic Alloys, Hard Materials |
| Country of Origin | UNITED STATES OF AMERICA |
WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Benefits
- nACo is a extremely hgh heat resistance coating with high nonohardness.
- Coating consists of Nano crystaline AlTiN grains.
Applications
For die & mold milling of radius bottom slots, fillets & special contoursFeatures
- 15° helix angle.
