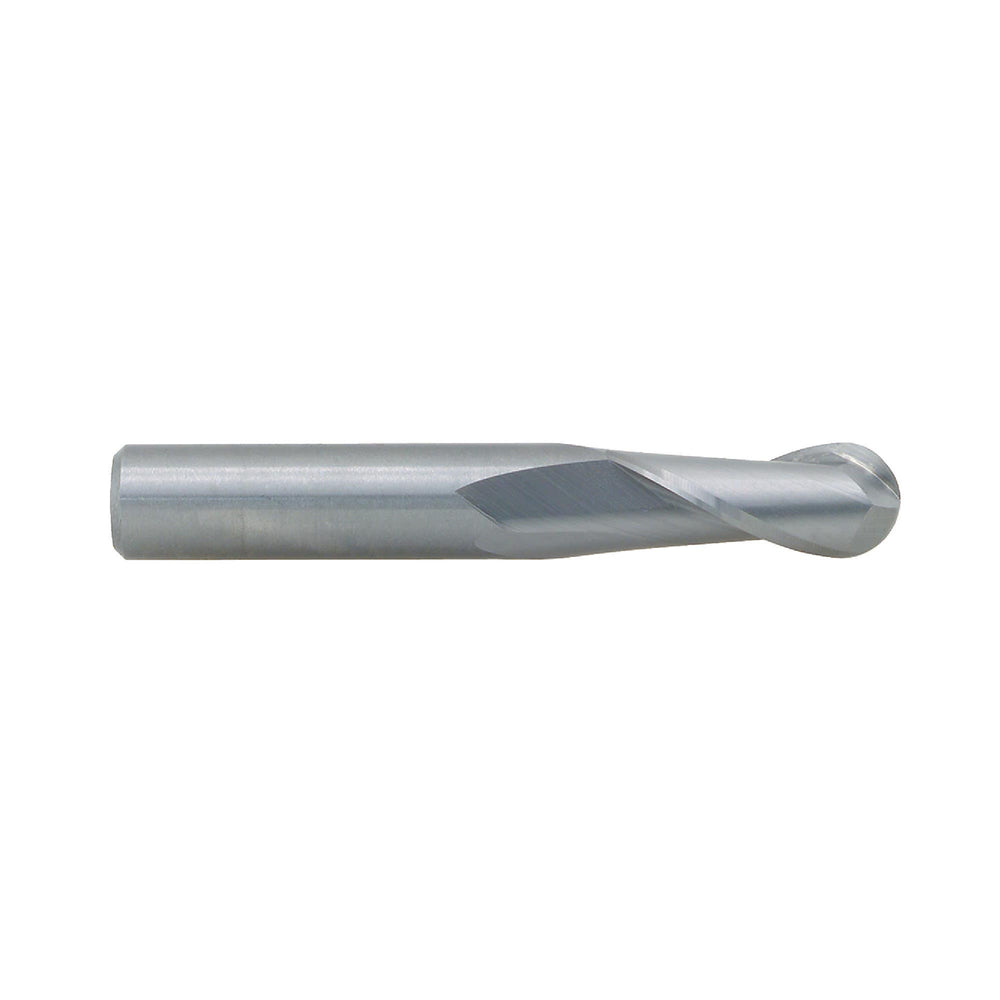

RUSHMORE USA 103536 7/32" Size, 5/8" LOC, 2 Flute, Solid Carbide Ball End Mill
by Rushmore USA
$27.94 USD
SKU 20-605-014
| Product Specifications | |
|---|---|
| Brand | RUSHMORE USA |
| Shank Diameter | 1/4" |
| Overall Length | 2-1/2" |
| Finish Coating | Bright |
| Size Type | Fractional |
| Size | 7/32" |
| No. of Flutes | 2 |
| Length of Cut | 5/8" |
| Tool Material | Solid Carbide |
| Single or Double End | Single |
| Helix Angle | 30° |
| Center Cutting | Yes |
| Type | 2 Flute Micrograin Solid Carbide Ball Nose Single End Mill |
| End Type | Ball Single End |
| Model # | 103536 |
| Application | For milling radius bottom slots, fillets and special contours. For deep slotting applications and for aluminum and non-ferrous materials. |
| Cutting Direction | Right Hand |
| First Choice For: | Steel |
| Flute Shape | Helix |
| Helix Angle & Style | 30° Helix |
| Prop. 65 | Yes |
| Series | 1605 |
| Shank Style | Straight Shank |
| Tolerance_Cutting Diameter | +.000" / -.002" |
| Tolerance_Shank Diameter | +.0000" / -.0005" |
| UNSPSC | 27112803 |
| Weight | 0.031 lbs. |
| Workpiece Material | For aluminum and non-ferrous materials |
| Workpiece Material Range | Steel, Stainless Steel, High-Temp Exotic Alloys, Non-Ferrous, Cast Iron, Hard Materials, Plastics |
| Country of Origin | UNITED STATES OF AMERICA |
