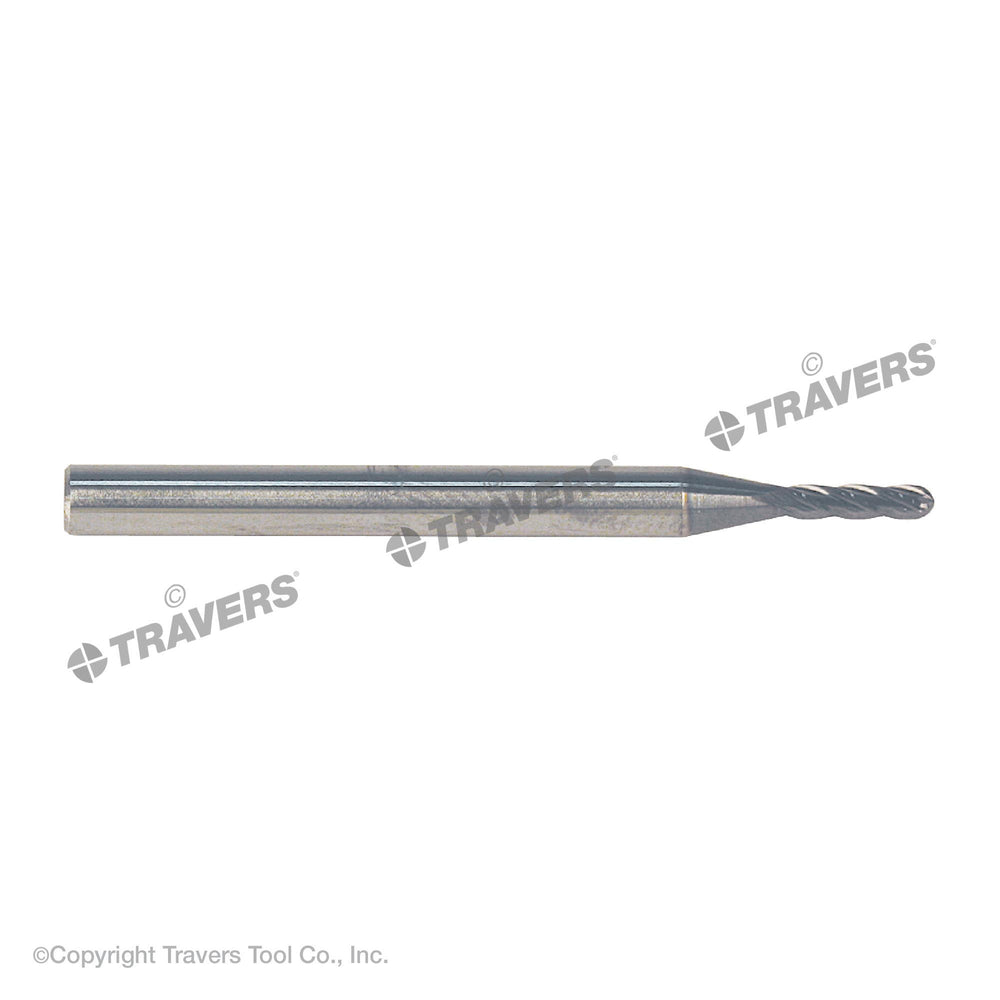

RUSHMORE USA 103518 7/32" Size, 5/8" LOC, 4 Flute, Solid Carbide Ball End Mill
by Rushmore USA
$32.07 USD
SKU 20-604-114
| Product Specifications | |
|---|---|
| Brand | RUSHMORE USA |
| Shank Diameter | 1/4" |
| Overall Length | 2-1/2" |
| Finish Coating | AITiN |
| Size Type | Fractional |
| Size | 7/32" |
| No. of Flutes | 4 |
| Length of Cut | 5/8" |
| Tool Material | Solid Carbide |
| Single or Double End | Single |
| Helix Angle | 30° |
| Center Cutting | Yes |
| Type | 4 Flute AITiN Coated Solid Carbide Ball Nose Single End Mill |
| End Type | Ball Single End |
| Model # | 103518 |
| Application | For use in rough and general machining applications of high temperature exotic materials and high cobalt and high nickel alloys including 200 and 300 series stainless steels. For general milling operations for slots and grooves requiring a radius. |
| Cutting Direction | Right Hand |
| First Choice For: | Stainless Steel |
| Flute Shape | Helix |
| Helix Angle & Style | 30° Helix |
| Prop. 65 | Yes |
| Shank Style | Straight Shank |
| Tolerance_Cutting Diameter | +0" / -0.002" |
| Tolerance_Shank Diameter | +0" / -0.0005" |
| UNSPSC | 27112803 |
| Weight | 0.031 lbs. |
| Workpiece Material | For use in rough and general machining applications of high temperature exotic materials and high cobalt and high nickel alloys including 200 and 300 series stainless steels. |
| Workpiece Material Range | Steel, Stainless Steel, High-Temp Exotic Alloys, Non-Ferrous, Cast Iron, Hard Materials, Plastics |
| Country of Origin | UNITED STATES OF AMERICA |
WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Benefits
- Good thermal stability for increased speeds and feeds.
- Excellent heat resistance and lubricity.
- Better finishes and tool life.
Applications
For use in rough and general machining applications of high temperature exotic materials and high cobalt and high nickel alloys including 200 and 300 series stainless steels. For general milling operations for slots and grooves requiring a radius.Features
- Made from premium submicron carbide with 10% cobalt.
