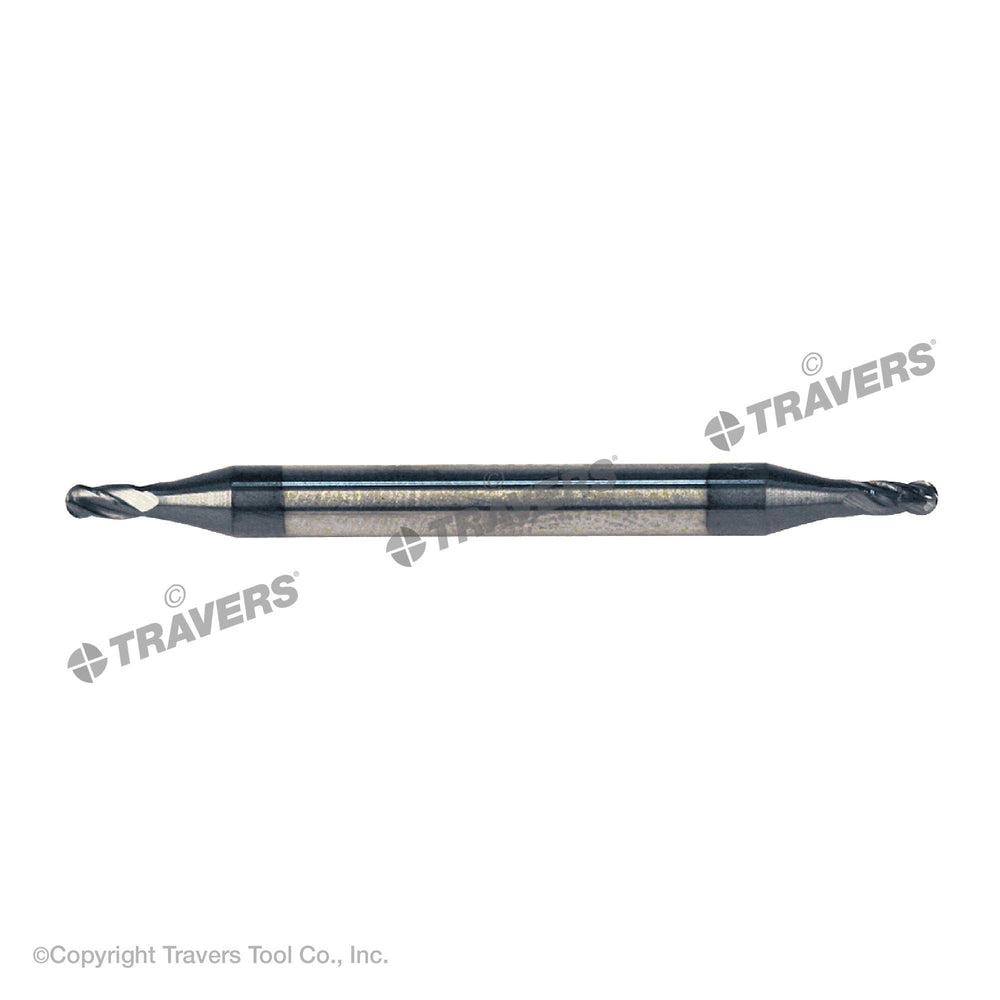

RUSHMORE USA 101043 7/32" Size, 3/8" LOC, 4 Flute, Solid Carbide Ball End Mill
by Rushmore USA
$49.53 USD
SKU 20-078-414
| Product Specifications | |
|---|---|
| Brand | RUSHMORE USA |
| Shank Diameter | 1/4" |
| Overall Length | 2-1/2" |
| Finish Coating | AlTiN |
| Size Type | Fractional |
| Size | 7/32" |
| No. of Flutes | 4 |
| Length of Cut | 3/8" |
| Tool Material | Solid Carbide |
| Single or Double End | Double |
| Helix Angle | 30° |
| Center Cutting | Yes |
| Type | 4 flute ball double end mill |
| Model # | 101043 |
| Application | Ball Milling |
| Coating | ALTIN |
| Cutting Direction | Right Hand |
| Cutting End Shape | Ball |
| First Choice For: | Stainless Steel |
| Flute Shape | Spiral Flute |
| Helix Angle & Style | 30° |
| Length Type | Stub Length |
| Prop. 65 | Yes |
| Tolerance_Cutting Diameter | +.0000" / -.002" |
| Tolerance_Shank Diameter | +.0000" / -.0001" to -.0005" |
| UNSPSC | 27112803 |
| Weight | 0.06 lbs. |
| Workpiece Material | Titanium, stainless steel & high temperature alloys |
| Workpiece Material Range | Steel, Stainless Steel, High-Temp Exotic Alloys, Non-Ferrous, Cast Iron, Hard Materials, Plastics |
| Country of Origin | UNITED STATES OF AMERICA |
WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Two cutting ends
Benefits
- 4 Flutes allow for faster speeds and feeds at the expense of chip removal due to decrease in flute carrying space but produces a finer finish vs. 2 flutes.
Applications
Ball MillingFeatures
- Black coating color.
