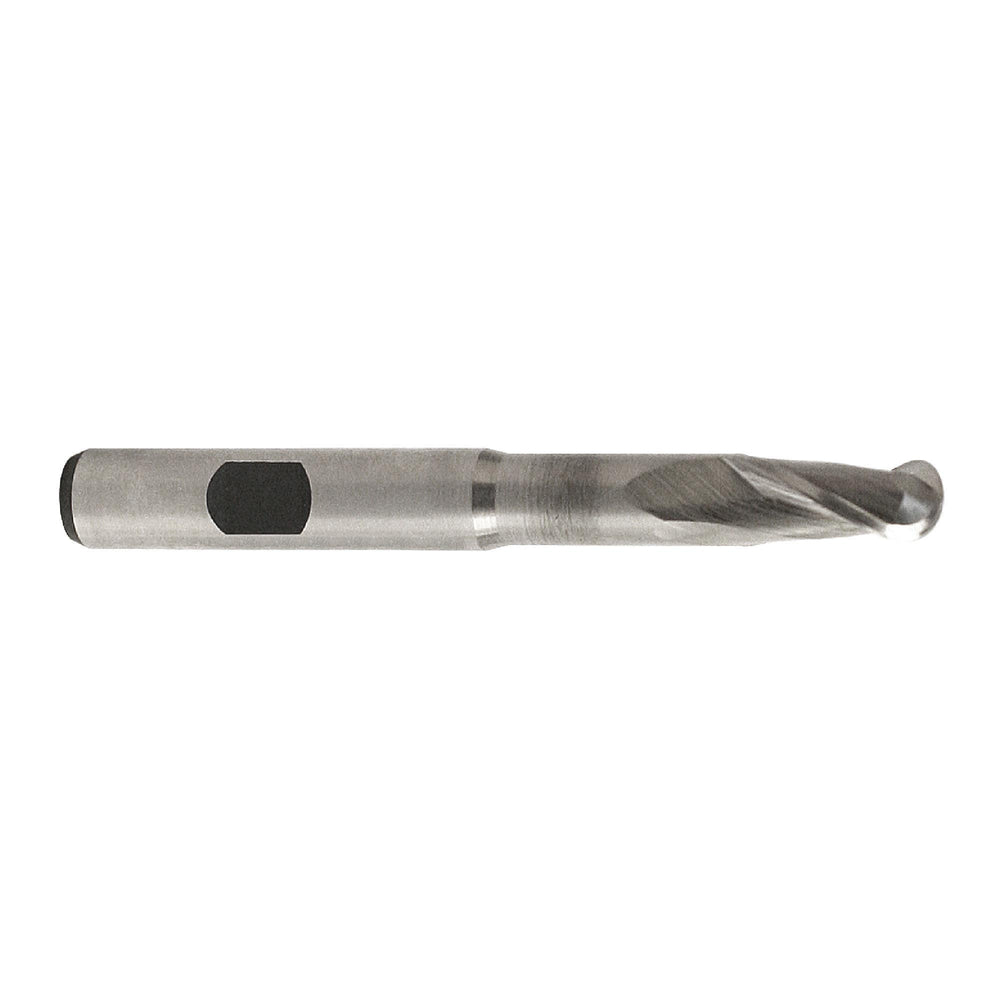

RUSHMORE USA 100590 3/8" Size, 3/4" LOC, 2 Flute, High Speed Steel Ball End Mill
by Rushmore USA
$39.70 USD
SKU 08-070-524
| Product Specifications | |
|---|---|
| Brand | RUSHMORE USA |
| Shank Diameter | 3/8" |
| Overall Length | 3-3/16" |
| Finish Coating | Bright |
| Size Type | Fractional |
| Size | 3/8" |
| No. of Flutes | 2 |
| Length of Cut | 3/4" |
| Tool Material | High Speed Steel |
| Single or Double End | Single |
| Helix Angle | 30° |
| Center Cutting | Yes |
| Type | 2 Flute HighSpeed Steel Ball End Single End Mill |
| End Type | Ball Single End |
| Model # | 100590 |
| Application | Recommended for milling radius bottom slots, fillets and special contours. |
| Coating | Uncoated |
| Cutting Direction | Right Hand |
| Cutting End Shape | Ball |
| First Choice For: | Non-Ferrous |
| Flute Shape | Helix |
| Helix Angle & Style | 30° Helix |
| Prop. 65 | Yes |
| Shank Style | Straight Shank |
| Tolerance_Cutting Diameter | '+.0015 / -.0000" |
| UNSPSC | 27112803 |
| Weight | 0.125 lbs. |
| Workpiece Material | General purpuse use in ferrous & non-ferrous materials |
| Workpiece Material Range | Steel, Non-Ferrous, Cast Iron, Plastics |
| Country of Origin | UNITED STATES OF AMERICA |
WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Long reach for deeper access
Applications
Recommended for milling radius bottom slots, fillets and special contours.Features
- 2 flutes provide the greatest amount of flute space for chip carrying capacity.
