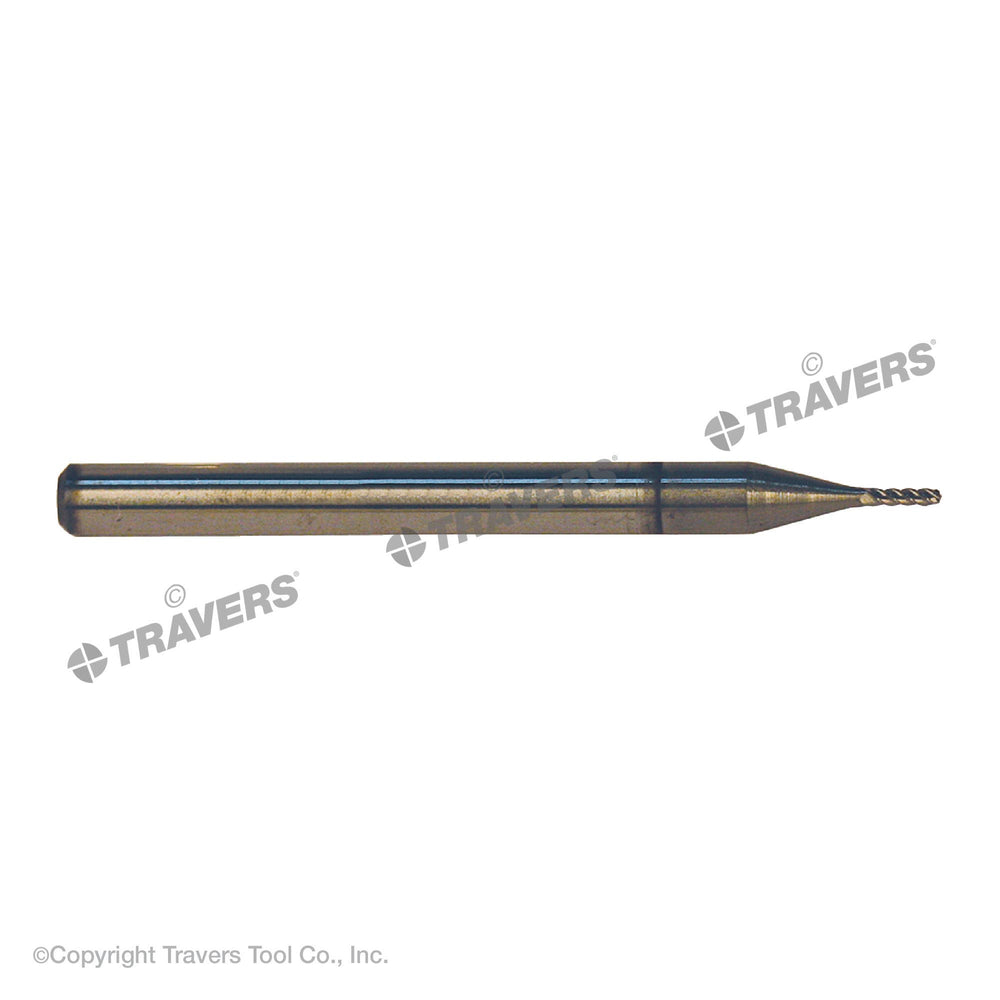

RUSHMORE USA 100308 7/32" Size, 5/8" LOC, 4 Flute, Solid Carbide Ball End Mill
by Rushmore USA
$34.29
SKU 08-601-119
| Product Specifications | |
|---|---|
| Brand | RUSHMORE USA |
| Shank Diameter | 1/4" |
| Overall Length | 2-1/2" |
| Finish Coating | TiCN |
| Size Type | Fractional |
| Size | 7/32" |
| No. of Flutes | 4 |
| Length of Cut | 5/8" |
| Tool Material | Solid Carbide |
| Single or Double End | Single |
| Helix Angle | 40° |
| Center Cutting | Yes |
| Type | 4 Flute Micrograin Solid Carbide Ball Nose Single End Mill |
| End Type | Ball Single End |
| Model # | 100308 |
| Application | For milling radius bottom slots, fillets and special contours. For profiling, slotting of stainless steel and exotic materials. |
| Cutting Direction | Right Hand |
| First Choice For: | High Temp Exotic Alloys |
| Flute Shape | Helix |
| Helix Angle & Style | 40° High Performance Helix |
| Prop. 65 | Yes |
| Shank Style | Straight Shank |
| Tolerance_Cutting Diameter | +.000" / -.002" |
| Tolerance_Shank Diameter | +.0000" / -.0005" |
| UNSPSC | 27112803 |
| Weight | 0.03 lbs. |
| Workpiece Material | For stainless steel and exotic materials |
| Workpiece Material Range | Steel, Stainless Steel, High-Temp Exotic Alloys, Non-Ferrous, Cast Iron, Hard Materials, Plastics |
| Country of Origin | UNITED STATES OF AMERICA |
