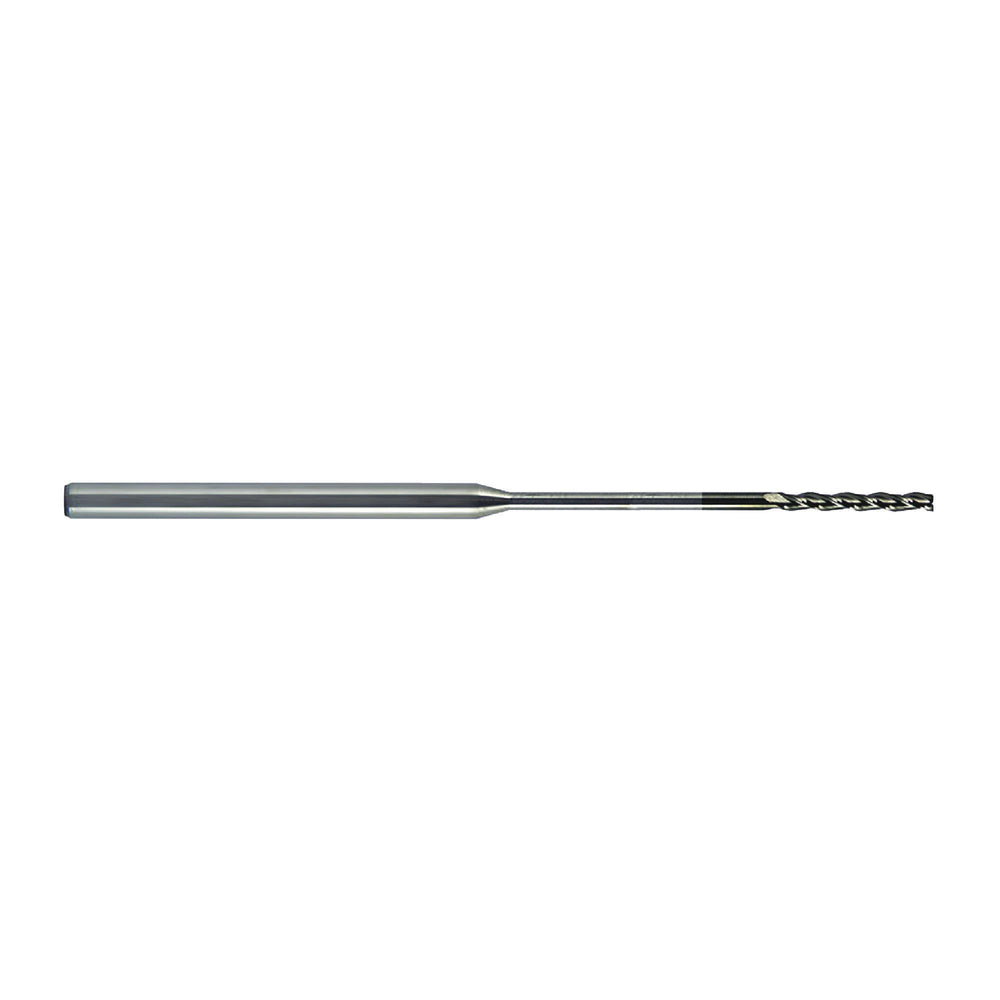

RUSHMORE USA 103255 1/16" Size, .500" (8x) LOC, 3 Flute, Solid Carbide Miniature End Mill
by Rushmore USA
$47.82
SKU 20-532-051
| Product Specifications | |
|---|---|
| Brand | RUSHMORE USA |
| Shank Diameter | 1/8" |
| Overall Length | 2-1/2" |
| Finish Coating | DLC |
| Size Type | Fractional |
| Size | 1/16" |
| No. of Flutes | 3 |
| Length of Cut | .500" (8x) |
| Tool Material | Solid Carbide |
| Single or Double End | Single |
| Helix Angle | 30° |
| Center Cutting | Yes |
| Type | 3 flute solid carbide miniature end mill |
| Corner Radius | None |
| End Type | Square End |
| Coolant Through | No |
| Model # | 103255 |
| Application | Miniature Milling |
| Coating | DLC |
| Cutting Direction | Right Hand |
| Cutting End Shape | Square |
| First Choice For: | Non-Ferrous |
| Flute Shape | Spiral |
| Length Below Shank | 1" (16x) |
| Prop. 65 | Yes |
| Reach | 1" (16x) |
| Shank Style | Straight Shank |
| Tolerance_Cutting Diameter | +.0005" / -.0005" |
| UNSPSC | 27112803 |
| Weight | .02 lbs. |
| Workpiece Material | For use with non-ferrous metals & non-metalic materials |
| Workpiece Material Range | Non-Ferrous, Plastics |
| Country of Origin | UNITED STATES OF AMERICA |
WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Superb quality at industry competitive prices
Benefits
- Rigidity and concentricity are key factors in this offering of micro tools.
- Rushmore offers a complete offering of multiple flute lengths and reaches to help you achieve the maximum optimization with our tools.
- Excels in hard to reach or deep pocket milling for maximum tool life.
Applications
Miniature MillingFeatures
- Made from premium sub micron grain carbide.
- 30° helix angle.
- Square end.
