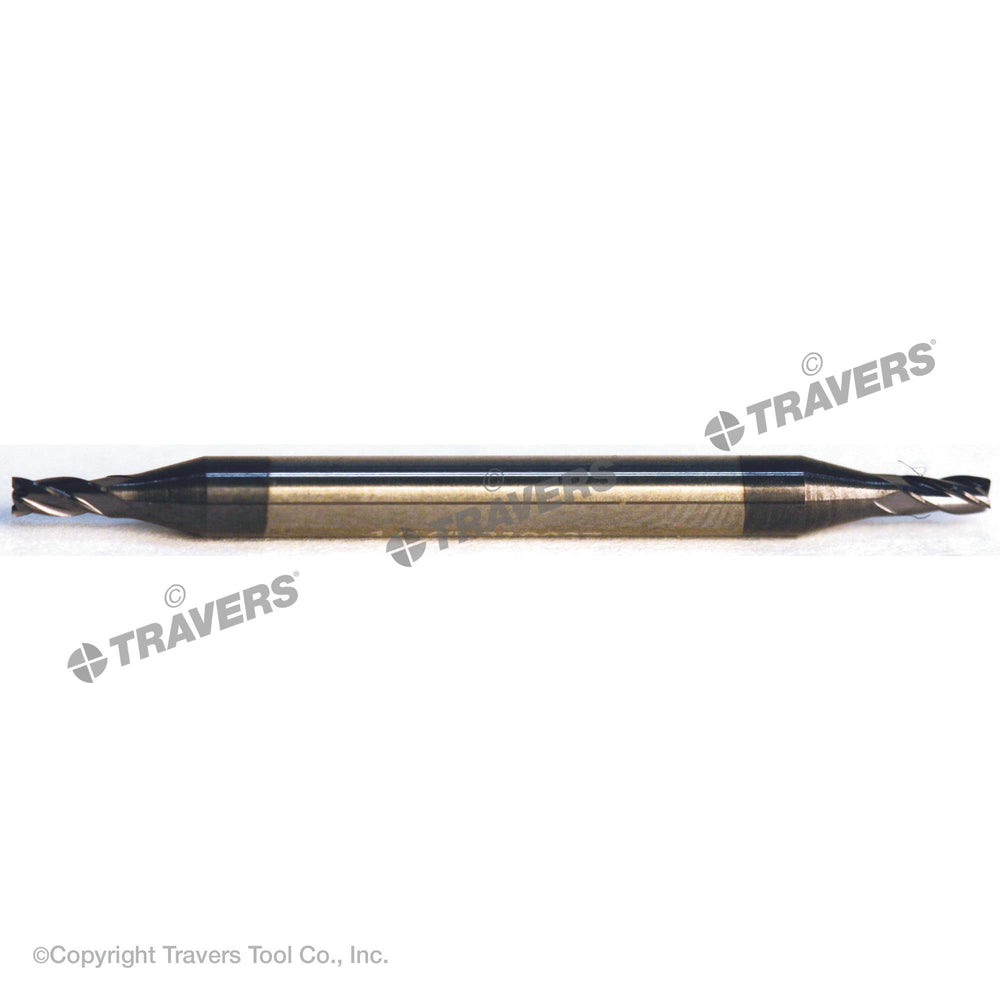

RUSHMORE USA 100516 5/32" Size, 5/16" LOC, 4 Flute, AlTiN Solid Carbide Finishing End Mill
by Rushmore USA
$26.71
SKU 09-510-754
| Product Specifications | |
|---|---|
| Brand | RUSHMORE USA |
| Shank Diameter | 3/16" |
| Overall Length | 2" |
| Finish Coating | AlTiN |
| Size Type | Fractional |
| Size | 5/32" |
| No. of Flutes | 4 |
| Length of Cut | 5/16" |
| Tool Material | Solid Carbide |
| Single or Double End | Double |
| Helix Angle | 30° |
| Center Cutting | Yes |
| Type | 4 Flute Stub Length Coated Solid Carbide Double End Mill |
| Corner Radius | 0 |
| End Type | Square Double End |
| Model # | 100516 |
| Cutting Direction | Right Hand |
| First Choice For: | Stainless Steel |
| Flute Shape | Helix |
| Length Type | Stub Length |
| Prop. 65 | Yes |
| Tolerance_Cutting Diameter | +.000" / -.002" |
| UNSPSC | 27112803 |
| Weight | 0.4 lbs. |
| Workpiece Material Range | Steel, Stainless Steel, High-Temp Exotic Alloys, Non-Ferrous, Cast Iron, Hard Materials, Plastics |
| Country of Origin | UNITED STATES OF AMERICA |
WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Applications
- For profiling, duplicating and contouring on most materials.
Features
- General purpose - square end.
- Short flute length for high rigidity and minimal tool deflection.
