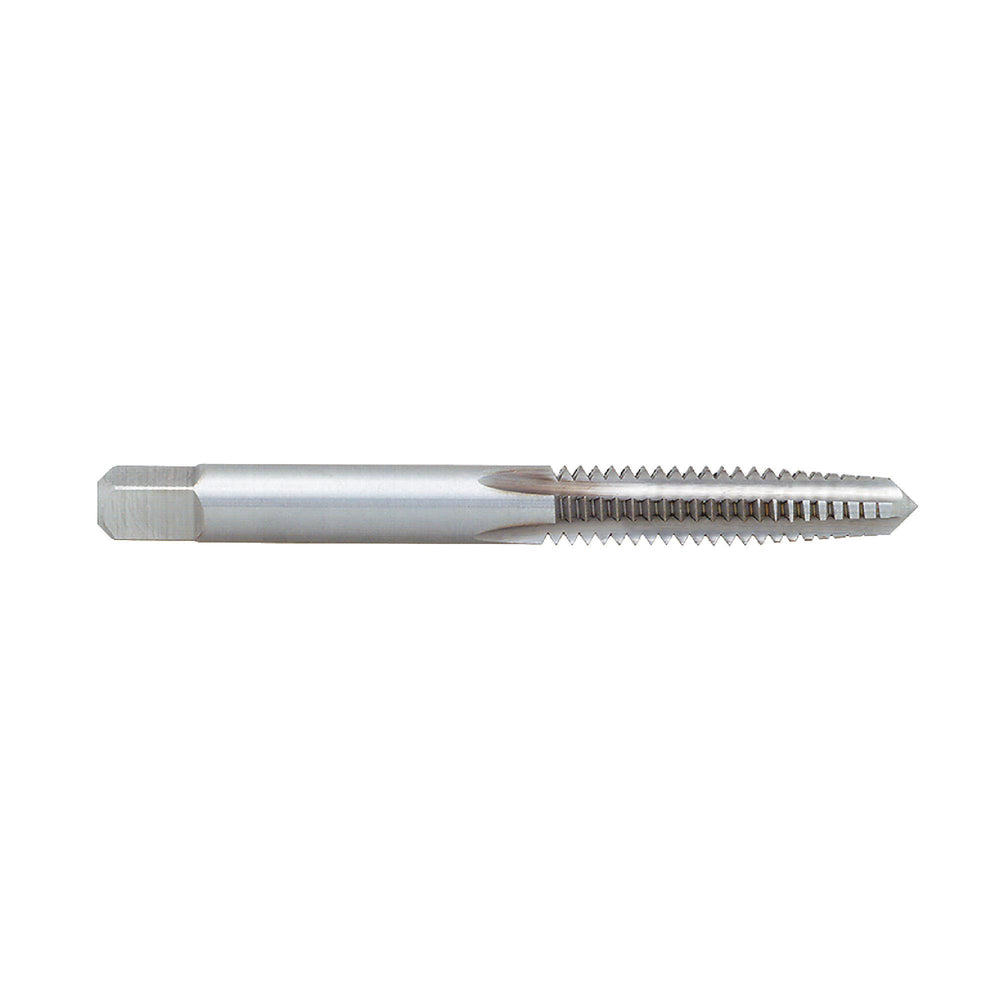

RUSHMORE USA 101049 20mmX2.50mm Size, D7 Thread Limit, Plug Chamfer, 4 Flute, Bright High Speed Steel, Right Hand Cut Straight Flute Hand Tap
by Rushmore USA
$90.42 USD
SKU 18-120-205
| Product Specifications | |
|---|---|
| Brand | RUSHMORE USA |
| Tool Material | High Speed Steel |
| Finish Coating | Bright |
| Thread Size | 20mm-2.50mm |
| Cutting Direction | Right Hand |
| Thread Length | 2" |
| Overall Length | 4.46875" |
| Size Type | Metric |
| Thread Limit | D7 |
| Chamfer Style | Plug |
| No. of Flutes | 4 |
| Shank Diameter | 0.625" |
| Type | High Speed Steel Plug Hand Taps |
| Model # | 101049 |
| Chamfer | Plug |
| First Choice For: | Steel |
| Flute Shape | Straight Flute |
| General Application | Tapping |
| Helix Angle & Style | 0° |
| Prop. 65 | Yes |
| Size | 20.0mm |
| Square Length | 0.6875" |
| Square Size | 0.489" |
| Style | Hand Tap |
| Thread Direction | Right Hand |
| UNSPSC | 23241615 |
| Weight | 0.425 lbs. |
| Workpiece Material | Variety of ferrous & non-ferrous materials |
| Workpiece Material Range | Steel, Non-Ferrous, Cast Iron, Plastics |
| Country of Origin | UNITED STATES OF AMERICA |
WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Benefits
- High speed steel provides good tool life with minimal cost.
Applications
- Perform well in free cutting and carbon steels & soft non-ferrous materials.
- For metric tapping applications in a variety of ferrous and non-ferrous materials.
Features
- Order one each taper, plug and bottoming of the same tap size to make a set.
- Straight flute right hand cut.
- Bright finish.
