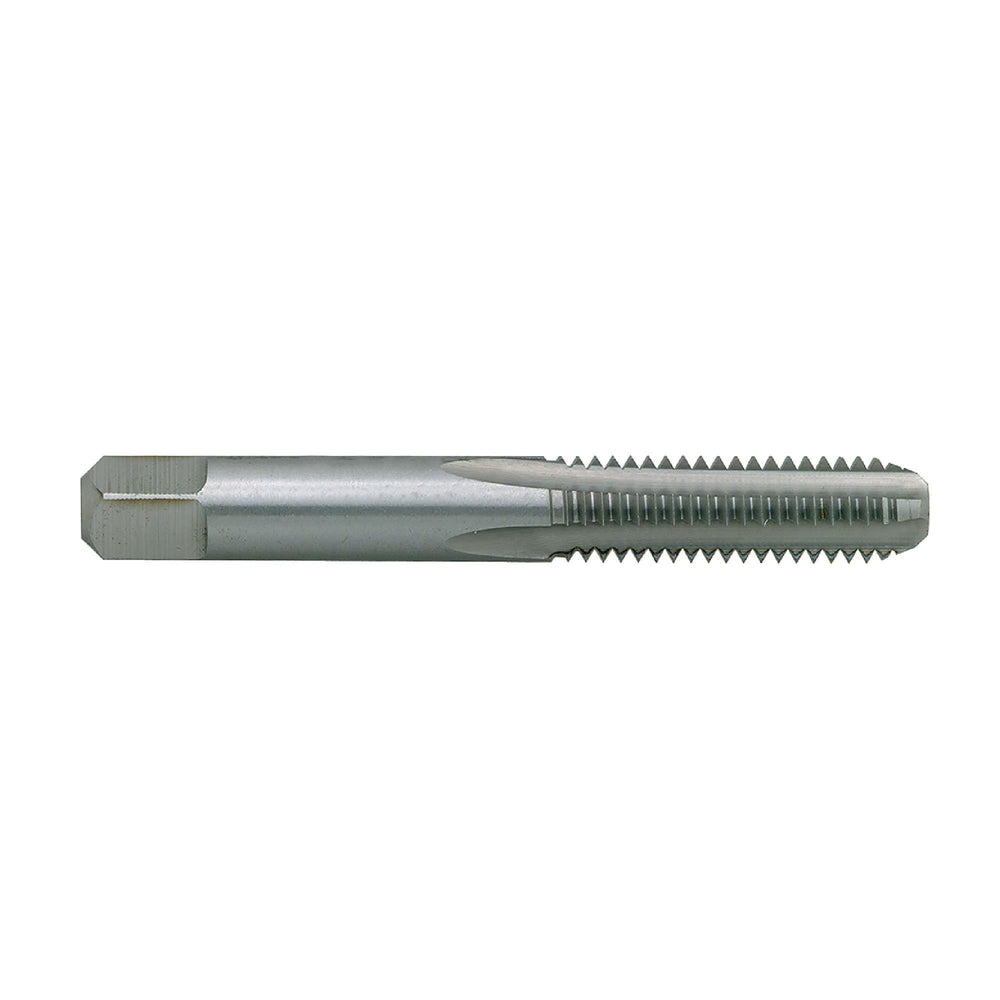

RUSHMORE USA 100867 5/16"-24 Size, H3 Thread Limit, Bottoming Chamfer, 4 Flute, Bright High Speed Steel, Right Hand Cut Straight Flute Hand Tap
by Rushmore USA
$10.38 USD
SKU 12-123-132
| Product Specifications | |
|---|---|
| Brand | RUSHMORE USA |
| Tool Material | High Speed Steel |
| Finish Coating | Bright |
| Thread Size | 5/16"-24 |
| Cutting Direction | Right Hand |
| Thread Length | 1.125" |
| Overall Length | 2.71875" |
| Size Type | ANSI |
| Thread Limit | H3 |
| Chamfer Style | Bottoming |
| No. of Flutes | 4 |
| Shank Diameter | 0.318" |
| Type | High Speed Steel Hand Taps |
| Model # | 100867 |
| Chamfer | Bottoming |
| First Choice For: | Steel |
| Flute Shape | Straight Flute |
| General Application | Tapping |
| Helix Angle & Style | 0° |
| Prop. 65 | Yes |
| Size | 5/16x24 |
| Square Length | 0.375" |
| Square Size | 0.238" |
| Style | Hand Tap |
| Thread Direction | Right Hand |
| UNSPSC | 23241615 |
| Weight | 0.045 lbs. |
| Workpiece Material | Variety of ferrous & non-ferrous materials |
| Workpiece Material Range | Steel, Non-Ferrous, Cast Iron, Plastics |
| Country of Origin | UNITED STATES OF AMERICA |
WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Spiral point is designed to push the chips ahead of the cutting action, helping to reduce loading in the flutes
Applications
- Used as the final tap in a blind hole where the hole must be threaded almost to bottom.
Features
- Chamfer of 1-2 threads.
Technical Data
- Manufactured from High Speed Steel.
- Ground thread taps.
- Available in both UNC and UNF thread series.
- Bright finish.
