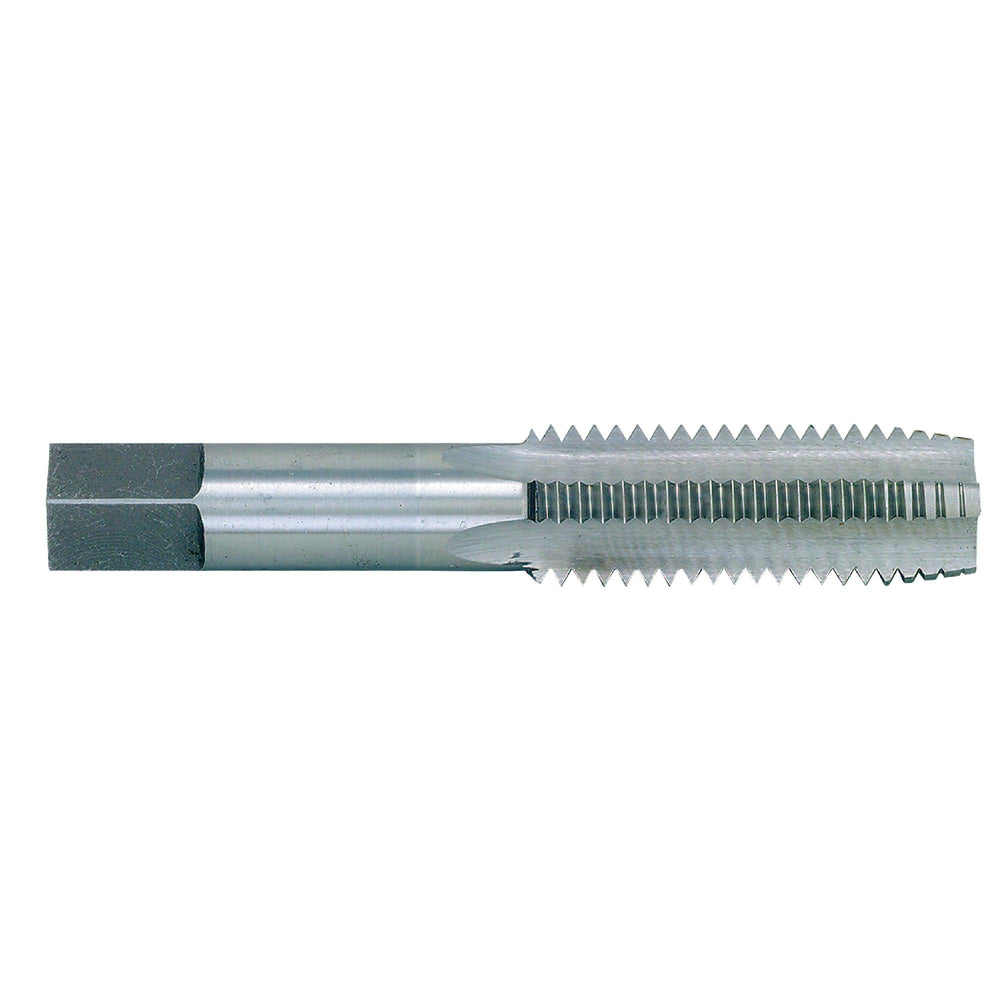

RUSHMORE USA 100848 1"-8 Size, H4 Thread Limit, Plug Chamfer, 4 Flute, Bright High Speed Steel, Right Hand Cut Straight Flute Hand Tap
by Rushmore USA
$96.84 USD
SKU 12-122-166
| Product Specifications | |
|---|---|
| Brand | RUSHMORE USA |
| Tool Material | High Speed Steel |
| Finish Coating | Bright |
| Thread Size | 1"-8 |
| Cutting Direction | Right Hand |
| Thread Length | 2.5" |
| Overall Length | 5.125" |
| Size Type | ANSI |
| Thread Limit | H4 |
| Chamfer Style | Plug |
| No. of Flutes | 4 |
| Shank Diameter | 0.8" |
| Type | High Speed Steel Hand Taps |
| Model # | 100848 |
| Chamfer | Plug |
| First Choice For: | Steel |
| Flute Shape | Straight Flute |
| General Application | Tapping |
| Helix Angle & Style | 0° |
| Prop. 65 | Yes |
| Size | 1x8 |
| Square Length | 0.8125" |
| Square Size | 0.6" |
| Style | Hand Tap |
| Thread Direction | Right Hand |
| UNSPSC | 23241615 |
| Weight | 0.6 lbs. |
| Workpiece Material | Variety of ferrous & non-ferrous materials |
| Workpiece Material Range | Steel, Non-Ferrous, Cast Iron, Plastics |
| Country of Origin | UNITED STATES OF AMERICA |
WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Applications
- Plug style used when one tap is used for the complete operation.
- For cutting standard screw threads.
- For hand threading applications.
- Frequently used for machine tapping operations.
- Well suited for use in a variety of ferrous and non-ferrous materials.
Features
- Straight flute, right hand cut, with square drive shanks and may have 2 to 6 flutes.
- Chamfer of 3-5 threads.
Technical Data
- Manufactured from high speed steel.
- Ground thread taps.
- Available in both UNC and UNF thread series.
- Bright finish.
