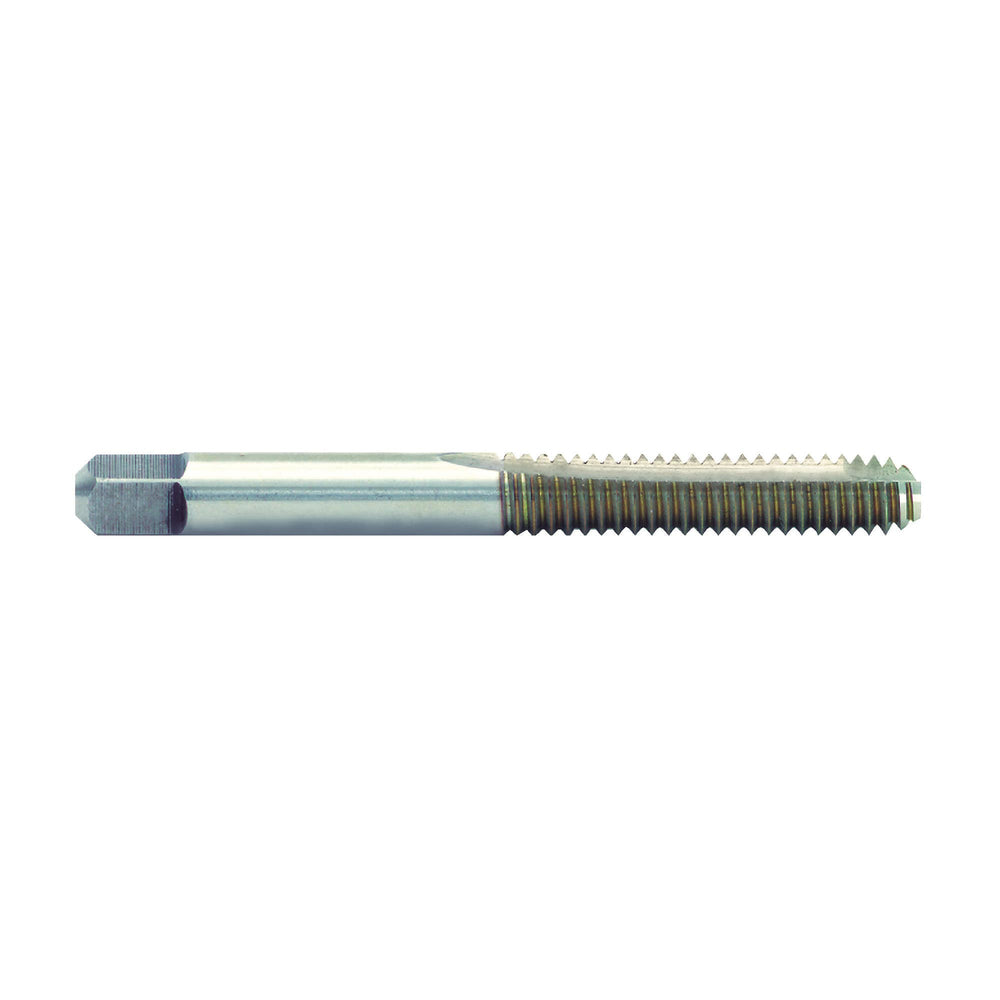

RUSHMORE USA 100927 1/2"-13 Size, H3 Thread Limit, Bottoming Chamfer, 3 Flute, Bright High Speed Steel, Right Hand Cut Spiral Pointed Tap
by Rushmore USA
$51.98 USD
SKU 12-669-080
| Product Specifications | |
|---|---|
| Brand | RUSHMORE USA |
| Tool Material | High Speed Steel |
| Finish Coating | Bright |
| Thread Size | 1/2"-13 |
| Cutting Direction | Right Hand |
| Thread Length | 1.65625" |
| Overall Length | 3.375" |
| Size Type | ANSI |
| Thread Limit | H3 |
| Chamfer Style | Bottoming |
| No. of Flutes | 3 |
| Shank Diameter | 0.367" |
| Type | High Speed Steel Spiral Pointed Bottoming Taps |
| Model # | 100927 |
| First Choice For: | Steel |
| General Application | Tapping |
| Helix Angle | 0° |
| Prop. 65 | Yes |
| Size | 1/2"-13 |
| Square Length | 0.4375" |
| Square Size | 0.275" |
| Style | Spiral Pointed Tap |
| Thread Direction | Right Hand |
| Threads Per Inch | 13 |
| UNSPSC | 23241615 |
| Weight | 0.088 lbs. |
| Workpiece Material | Variety of ferrous & non-ferrous materials |
| Workpiece Material Range | Steel, Non-Ferrous, Cast Iron, Plastics |
| Country of Origin | UNITED STATES OF AMERICA |
WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Applications
- Used where blind holes must be almost fully tapped.
