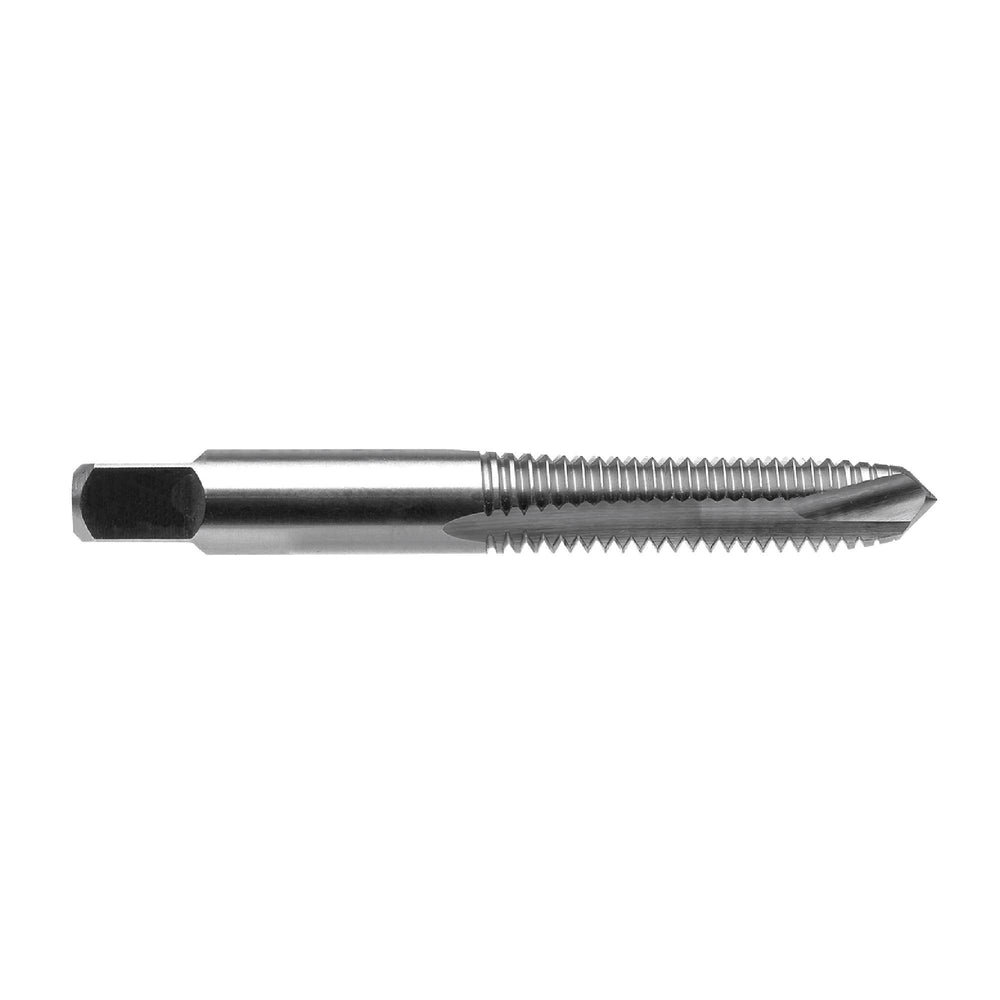

RUSHMORE USA 100890 #0-80 Size, H1 Thread Limit, Plug Chamfer, 2 Flute, Bright High Speed Steel, Right Hand Cut Spiral Pointed Tap
by Rushmore USA
$24.10
SKU 12-667-700
| Product Specifications | |
|---|---|
| Brand | RUSHMORE USA |
| Tool Material | High Speed Steel |
| Finish Coating | Bright |
| Thread Size | #0-80 |
| Cutting Direction | Right Hand |
| Thread Length | 0.3125" |
| Overall Length | 1.625" |
| Size Type | ANSI |
| Thread Limit | H1 |
| Chamfer Style | Plug |
| No. of Flutes | 2 |
| Shank Diameter | 0.141" |
| Type | High Speed Steel Spiral Pointed Plug Taps |
| Model # | 100890 |
| First Choice For: | Steel |
| General Application | Tapping |
| Helix Angle | 0° |
| Prop. 65 | Yes |
| Size | #0-80 |
| Square Length | 0.1875" |
| Square Size | 0.11" |
| Style | Spiral Pointed Tap |
| Thread Direction | Right Hand |
| Threads Per Inch | 80 |
| UNSPSC | 23241615 |
| Weight | 0.006 lbs. |
| Workpiece Material | Variety of ferrous & non-ferrous materials |
| Workpiece Material Range | Steel, Non-Ferrous, Cast Iron, Plastics |
| Country of Origin | UNITED STATES OF AMERICA |
WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Spiral point is designed to push the chips ahead of the cutting action, helping to reduce loading in the flutes
Applications
- For cutting standard screw threads.
- For machine tapping operations, but may also be employed for hand tapping as well.
- For use in a variety of ferrous and non-ferrous materials.
Technical Data
- Manufactured from high speed steel.
- Ground thread taps.
- Available in both UNC (National Coarse) and UNF (National Fine) thread series.
- Bright finish.
