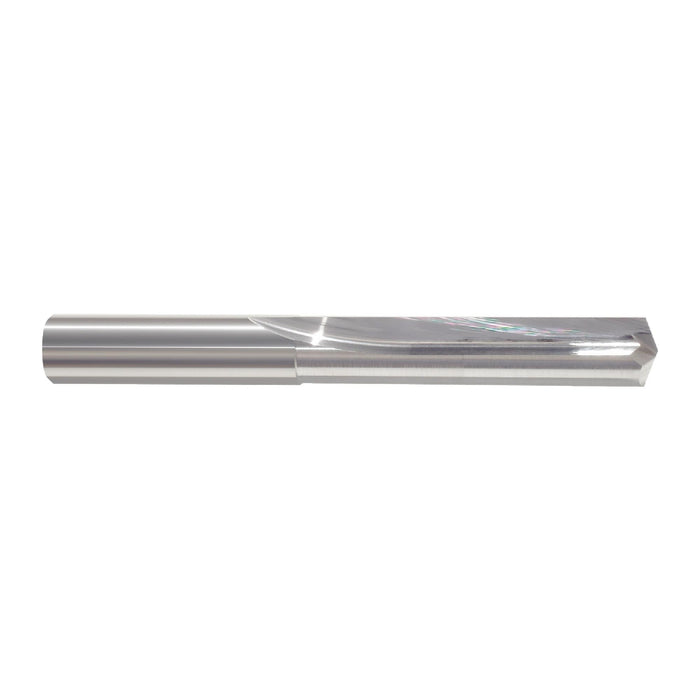

RUSHMORE USA 103788 8.00mm 140° Solid Carbide Straight Flute Spade Drill
by Rushmore USA
$44.88 USD
SKU 20-806-274
| Product Specifications | |
|---|---|
| Brand | RUSHMORE USA |
| Size Type | Metric |
| Size | 8.00mm |
| Drill Point Angle | 140° |
| Tool Material | Solid Carbide |
| Finish Coating | Bright |
| Overall Length | 71.00MM |
| Type | Straight Flute |
| Flute Length | 41mm |
| Cutting Direction | Right Hand |
| First Choice For: | Hard Materials |
| Model # | 103788 |
| Shank Size | STRAIGHT |
| Point Sharpening Type | Notched Point |
| Decimal Size | .3150" |
| Drill Grade | Premium Sub-Micron Grain Carbide With 10% Cobalt |
| Flute Shape | Straight |
| Prop. 65 | Yes |
| Tolerance_Cutting Diameter | +0.0000" / -0.0005" |
| Weight | 0.098 lbs. |
| Workpiece Material | Chrome Alloys, Heat Alloys, Nickel Alloys, Titanium Alloys, Steel & Stainless Steel Weldments. |
| Workpiece Material Range | Steel, Stainless Steel, High-Temp Exotic Alloys, Non-Ferrous, Cast Iron, Hard Materials |
| Country of Origin | UNITED STATES OF AMERICA |
WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Produce chips without excessive heat
Applications
- Capable of producing reamer type finishes in work hardened & abrasives materials.
- Chrome alloys, heat alloys, nickel alloys, titanium alloys, steel and stainless steel weldments.
Features
- Right hand cut.
