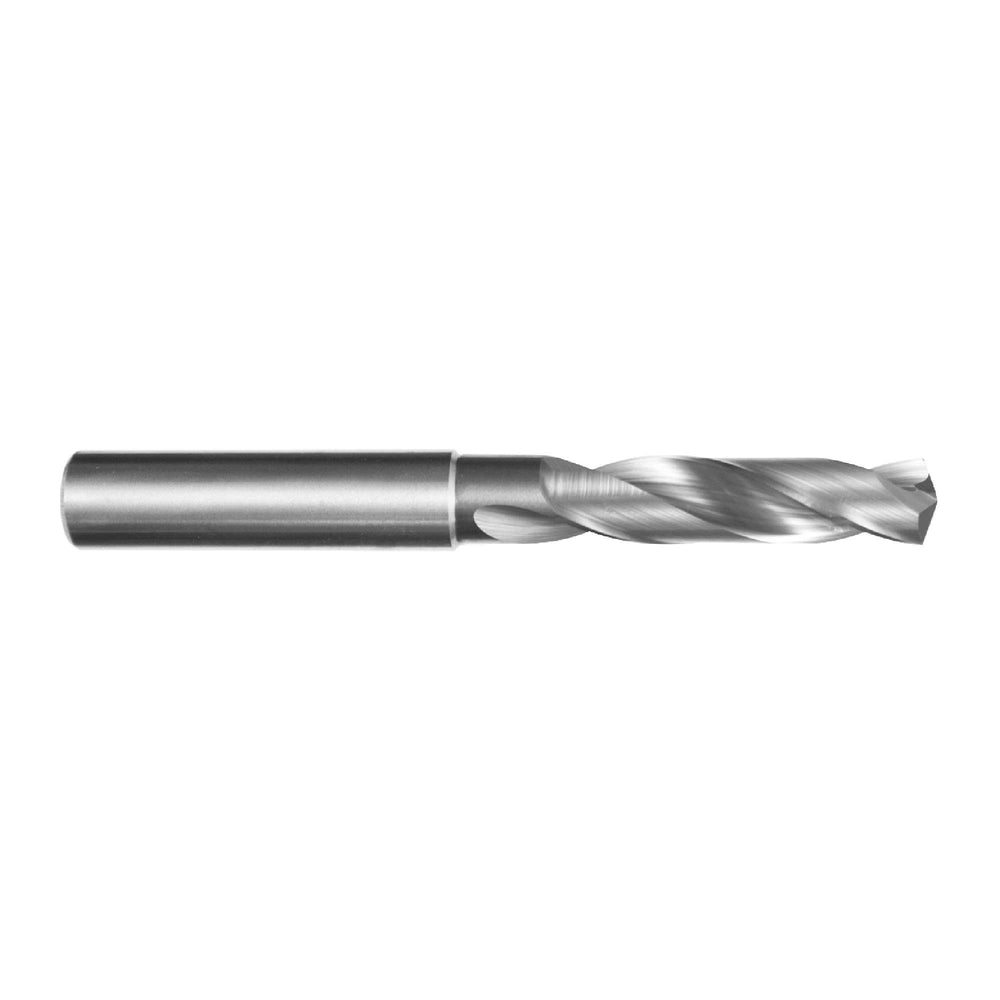

RUSHMORE USA 101605 16.50mm Size 140° Solid Carbide Screw Machine Length Stub Drill
by Rushmore USA
$191.47 USD
SKU 20-141-194
| Product Specifications | |
|---|---|
| Brand | RUSHMORE USA |
| Size Type | Metric |
| Size | 16.50mm |
| Drill Point Angle | 140° |
| Tool Material | Solid Carbide |
| Finish Coating | AlTiN |
| Overall Length | 4.84" |
| Type | Solid Carbide 3XD Drill |
| Flute Length | 2.874" |
| Cutting Direction | Right Hand |
| Model # | 101605 |
| Shank Size | 0.7087" |
| Point Sharpening Type | Modified 4-Facet With A CNC-Driven S-Gash |
| Helix Angle | 30° |
| Decimal Size | 0.6496" |
| Drill Type | Solid Carbide Non-Coolant Thru Drill |
| Flute Shape | Standard Spiral, Helical Flute |
| General Application | Holemaking |
| Hole Depth | 3XD |
| No. of Flutes | 2 |
| Prop. 65 | Yes |
| Shank Style | Common Straight Shank |
| Single or Double End | Single |
| Tolerance_Cutting Diameter | +.0009" / +.0003" |
| Tolerance_Overall Length | +/-.060" |
| Tolerance_Shank Diameter | +.0000" / -.0004" |
| UNSPSC | 23241635 |
| Weight | 0.748 lbs. |
| Workpiece Material | Hardened, Cast Iron, Titanium, Non-Ferrous, Stainless Steel & Steel |
| Country of Origin | UNITED STATES OF AMERICA |
| Shipping Restrictions | UPS Ship (drop ship item) |
WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Machine Shop Solutions
Problem: Extra reaming, finishing and deburring applications require additional machining and set-up times that can slow down production and reduce profits. Solution: An AlTiN-coated rigid drill supports increased feed rates across a wide variety of materials and features impressive self-centering for fast, versatile machining.Finish On Top With Rushmore's Drilling Leader!
Rushmore helps you cut down on unnecessary secondary operations like reaming, finishing and deburring with the Solid Carbide 3XD Drill, featuring durable AlTiN coating. Providing a wide range of versatility, this high performance drill works over a variety of materials including cast irons, titanium, and stainless steel metals! You'll appreciate the time and cost savings with effective self-centering that produces less top-side and egress burrs while giving you excellent finished holes with or without coolant!
Rigid design for fast feed rates
Benefits
- Installed K-land eliminates the need to hone this tool.
- Excellent self-centering capabilities and produces holes with very little in the way of either top-side or egress burrs.
- Consistent high-performing drill for a variety of materials.
Applications
- Excellent broad application drill.
Features
- 2 flutes.
- Common plain shank.
- Supplied with K-land.
- 30° helix.
140° Drill Point
- Modified 4-facet with a CNC-driven S-gash.
