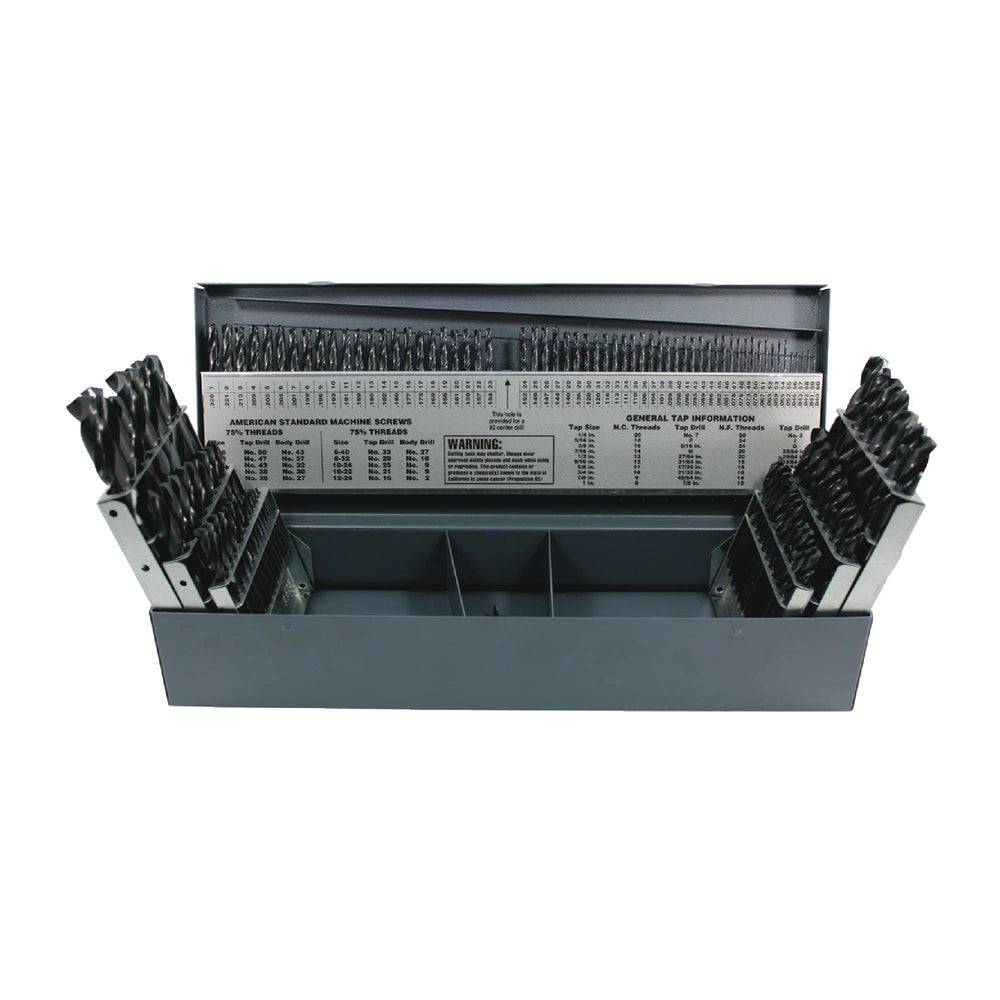

RUSHMORE USA RM115B 1/16" to 1/2" by 64ths, #1 to #60, A to Z Size, 135°, High Speed Steel Screw Machine Length Stub Drills Set
by Rushmore USA
$614.26 USD
SKU 01-078-006
| Product Specifications | |
|---|---|
| Brand | RUSHMORE USA |
| Size Type | Fractional, Number, Letter |
| Size | 1/16" to 1/2" by 64ths, #1 to #60, A to Z |
| Drill Point Angle | 135° |
| Tool Material | High Speed Steel |
| Finish Coating | Black Oxide |
| Type | Screw Machine Length Drill Set |
| No. of Pieces | 115 |
| Cutting Direction | Right Hand |
| First Choice For: | Steel |
| Model # | RM115B |
| Size Range | 3-in-1 Combination |
| Point Sharpening Type | Split Point |
| Helix Angle | 30° |
| Drill Type | Screw machine length |
| Flute Shape | Standard Spiral, Helical Flute |
| Grade | Production |
| Includes | Metal index |
| No. of Flutes | 2 |
| Prop. 65 | Yes |
| Shank Style | Straight Shank |
| Single or Double End | Single |
| UNSPSC | 23241635 |
| Weight | 6.97 lbs. |
| Workpiece Material | Steel, cast iron & forgings |
| Workpiece Material Range | Steel, Cast Iron, Plastics |
| Country of Origin | UNITED STATES OF AMERICA |
WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Applications
- Primarily designed for machining operations in screw machines.
- Short length offers increased rigidity for machine drilling a variety of materials including steel, cast steel, cast iron, alloyed or non-alloyed ferrous materials, as well as non-ferrous and non-metallic materials.
- Use with hand held manual drills, portable or stationary machines.
- For optimal performance, use of lubricating/cutting oils or coolant fluids is recommended.
