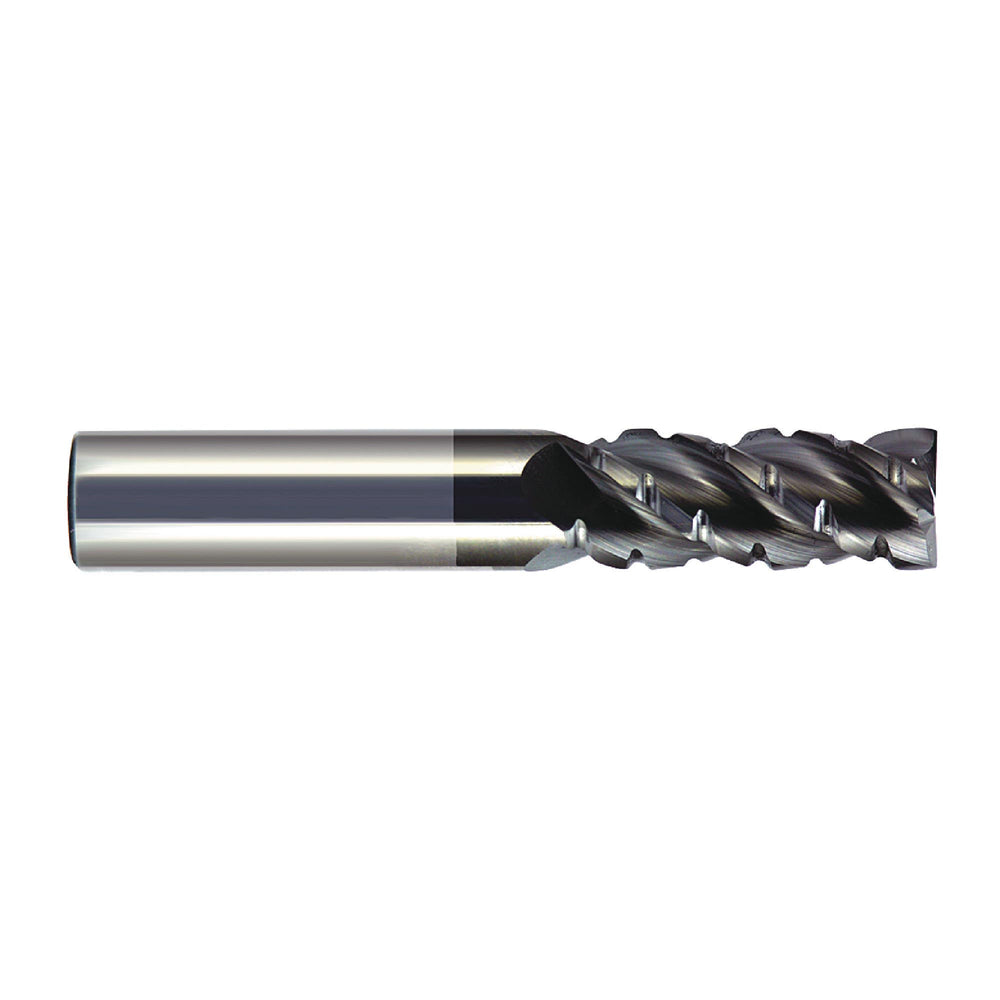

RUSHMORE USA 105673 3/4" Size, 1-1/2" LOC, 4 Flute, Solid Carbide Roughing/Finishing End Mill
by Rushmore USA
$211.83 USD
SKU 28-500-165
| Product Specifications | |
|---|---|
| Brand | RUSHMORE USA |
| Shank Diameter | 3/4" |
| Overall Length | 4" |
| Finish Coating | AlTiN |
| Size | 3/4" |
| No. of Flutes | 4 |
| Length of Cut | 1-1/2" |
| Tool Material | Solid Carbide |
| Single or Double End | Single |
| Helix Angle | 40° |
| Center Cutting | Yes |
| Type | Solid Carbide Roughing & Finishing Single End Mill |
| Corner Radius | .0325" |
| Radius_R | .0325" |
| Model # | 105673 |
| Application | Roughing & Finishing |
| Coating | ALTIN |
| Cutting Direction | Right Hand |
| Cutting End Shape | Square |
| First Choice For: | Stainless Steel |
| Helix Direction | Right |
| Prop. 65 | Yes |
| Shank Style | Straight Shank |
| Tolerance Class | H6 |
| Tolerance_Cutting Diameter | +.000" / -.002" |
| Tolerance_Shank Diameter | H6 |
| UNSPSC | 27112803 |
| Weight | 0.75 lbs. |
| Workpiece Material | Steels, stainless steel, titanium, high temp super alloys & cast irons. |
| Workpiece Material Range | Steel, Stainless Steel, High-Temp Exotic Alloys, Non-Ferrous, Cast Iron, Hard Materials, Plastics |
| Country of Origin | UNITED STATES OF AMERICA |
WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Applications
Roughing & FinishingFeatures
- Effective on HRc <48.
- Chipbreakers assist in providing maximum removal rates.
