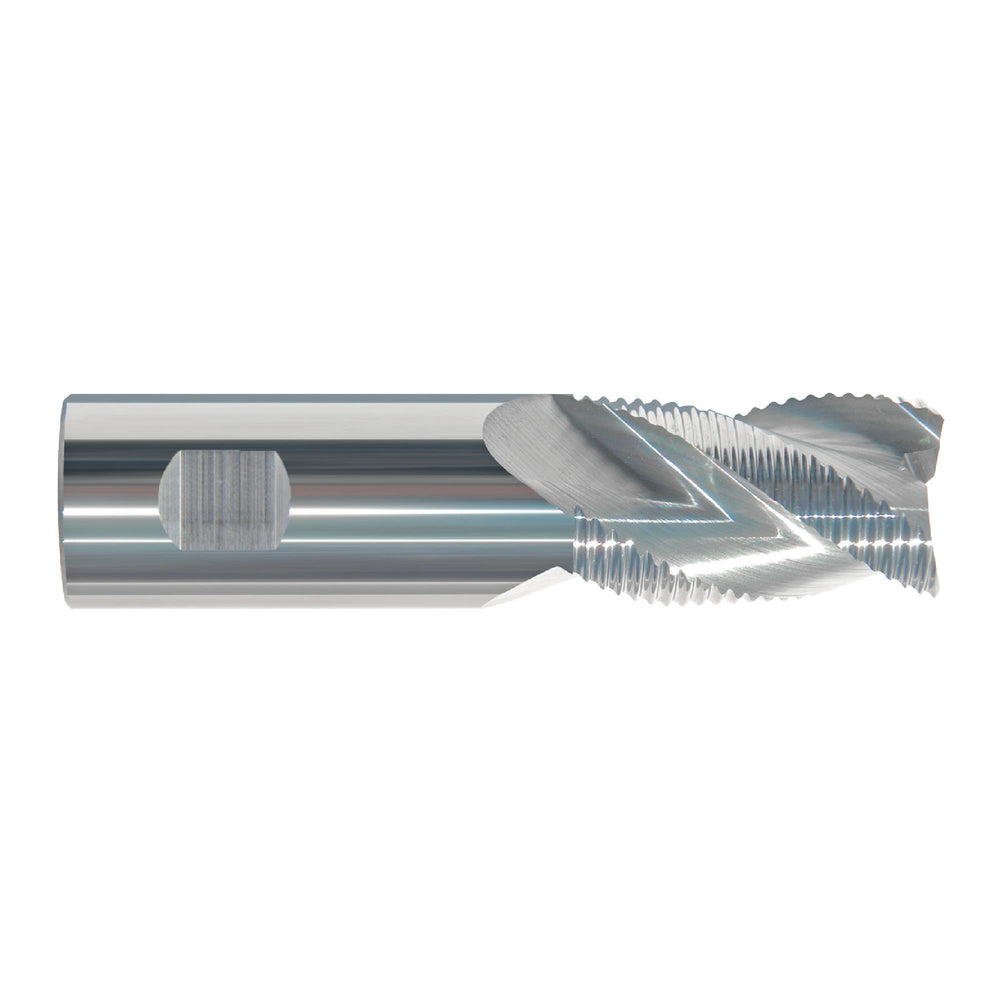

RUSHMORE USA 104861 3/8" Size, Coarse Pitch, 1" LOC, 3 Flute, Solid Carbide Roughing End Mill
by Rushmore USA
$76.18 USD
SKU 28-000-083
| Product Specifications | |
|---|---|
| Brand | RUSHMORE USA |
| Shank Diameter | 3/8" |
| Overall Length | 2-1/2" |
| Finish Coating | Bright |
| Size Type | Fractional |
| Size | 3/8" |
| No. of Flutes | 3 |
| Length of Cut | 1" |
| Tool Material | Solid Carbide |
| Single or Double End | Single |
| Helix Angle | 37° |
| Center Cutting | Yes |
| Type | 3 Flute Carbide Coarse Pitch Roughing Single End Mill |
| Pitch | Coarse |
| End Type | Single End |
| Model # | 104861 |
| Application | Used for rough milling, profiling, open ended slots, and heavy removal. For difficult to machine and abrasive materials. |
| Chamfer Dimensions | .020" |
| Cutting Direction | Right Hand |
| Cutting End Shape | Square |
| First Choice For: | Non-Ferrous |
| Flute Shape | Square |
| Helix Direction | Right |
| Length | 2-1/2" |
| Length Type | Standard Length |
| Overall Length 2 | 2-1/2" |
| Package Qty | 1 |
| Prop. 65 | Yes |
| Tolerance_Shank Diameter | +.0000/-.0003" |
| Tooth Geometry | 37° Helix 3 Flute |
| UNSPSC | 27112803 |
| Weight | .121 lbs |
| Workpiece Material Range | Steel, Stainless Steel, High-Temp Exotic Alloys, Non-Ferrous, Cast Iron, Hard Materials, Plastics |
| Country of Origin | UNITED STATES OF AMERICA |
WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
High performance machining
Benefits
- Reduced chatter and vibration.
- Maximum material removal rates.
Applications
Used for rough milling, profiling, open ended slots, and heavy removal. For difficult to machine and abrasive materials.Features
- Solid C2 grade premium sub-micron carbide with 10% cobalt.
