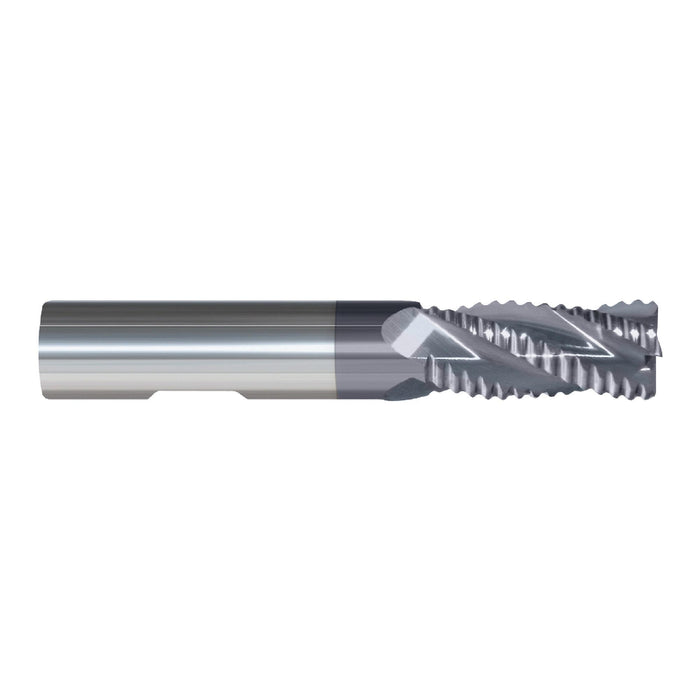

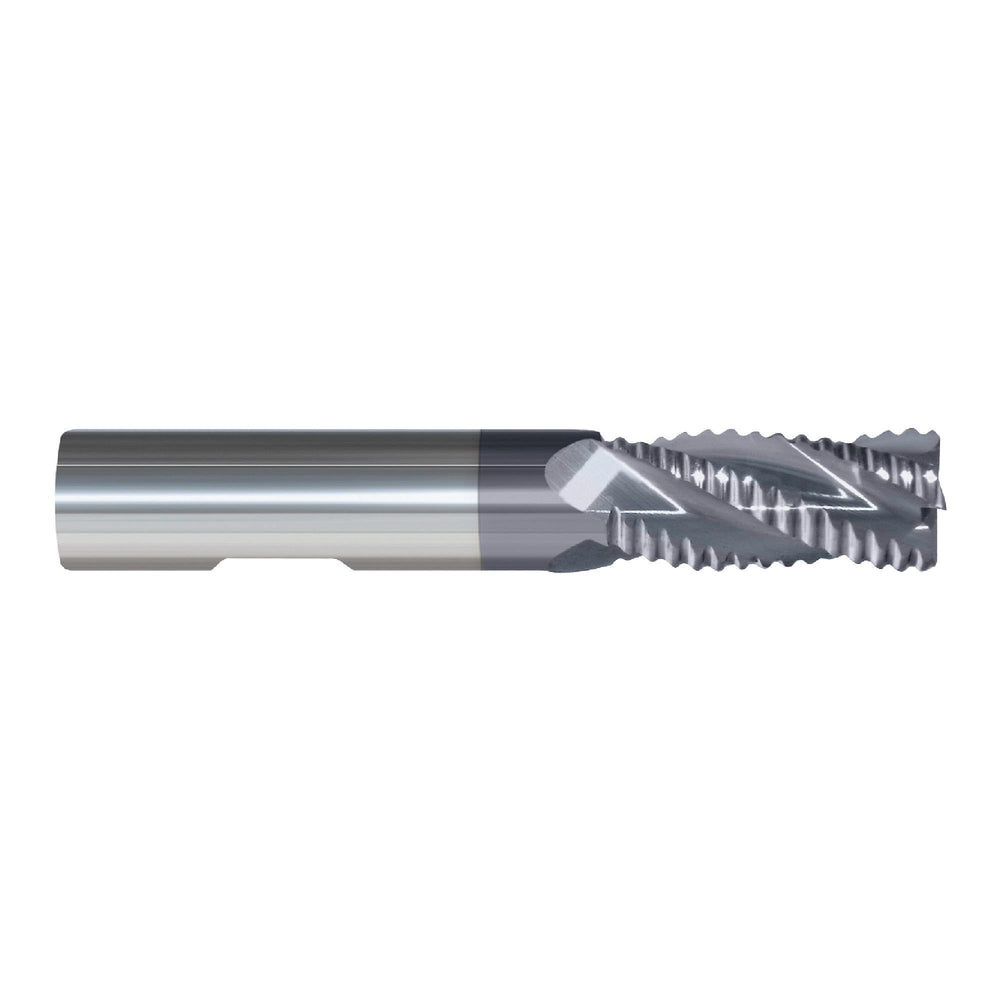

RUSHMORE USA 104848 1" Size, 1-3/4" LOC, 5 Flute, Solid Carbide Roughing End Mill
by Rushmore USA
$530.77 USD
SKU 28-000-068
| Product Specifications | |
|---|---|
| Brand | RUSHMORE USA |
| Shank Diameter | 1" |
| Overall Length | 4" |
| Finish Coating | Bright |
| Size Type | Fractional |
| Size | 1" |
| No. of Flutes | 5 |
| Length of Cut | 1-3/4" |
| Tool Material | Solid Carbide |
| Single or Double End | Single |
| Helix Angle | 37° |
| Center Cutting | Yes |
| Type | 5 Flute Carbide Medium Pitch Roughing Single End Mill |
| End Type | Single End |
| Model # | 104848 |
| Application | Used for slotting, peripheral milling, and heavy removal. For difficult to machine and abrasive materials |
| Chamfer Dimensions | 0.025" |
| Cutting Direction | Right Hand |
| Cutting End Shape | Square |
| Flute Shape | Square |
| Helix Direction | Right Hand |
| Length Type | Standard Length |
| Overall Length 2 | 4" |
| Package Qty | 1 |
| Prop. 65 | Yes |
| Shank Style | Weldon Flat |
| Tolerance_Cutting Diameter | +.000/-.003" |
| Tolerance_Shank Diameter | +.0000/-.0003" |
| Tooth Geometry | 37° Helix 5 Flute |
| UNSPSC | 27112803 |
| Weight | 1.365 lbs |
| Workpiece Material | Difficult to machine & abrasive materials. |
| Country of Origin | UNITED STATES OF AMERICA |
WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
High performance machining
Benefits
- Reduced chatter and vibration.
- Maximum material removal rates.
Applications
Used for slotting, peripheral milling, and heavy removal. For difficult to machine and abrasive materialsFeatures
- Solid C2 grade premium sub-micron carbide with 10% cobalt.
