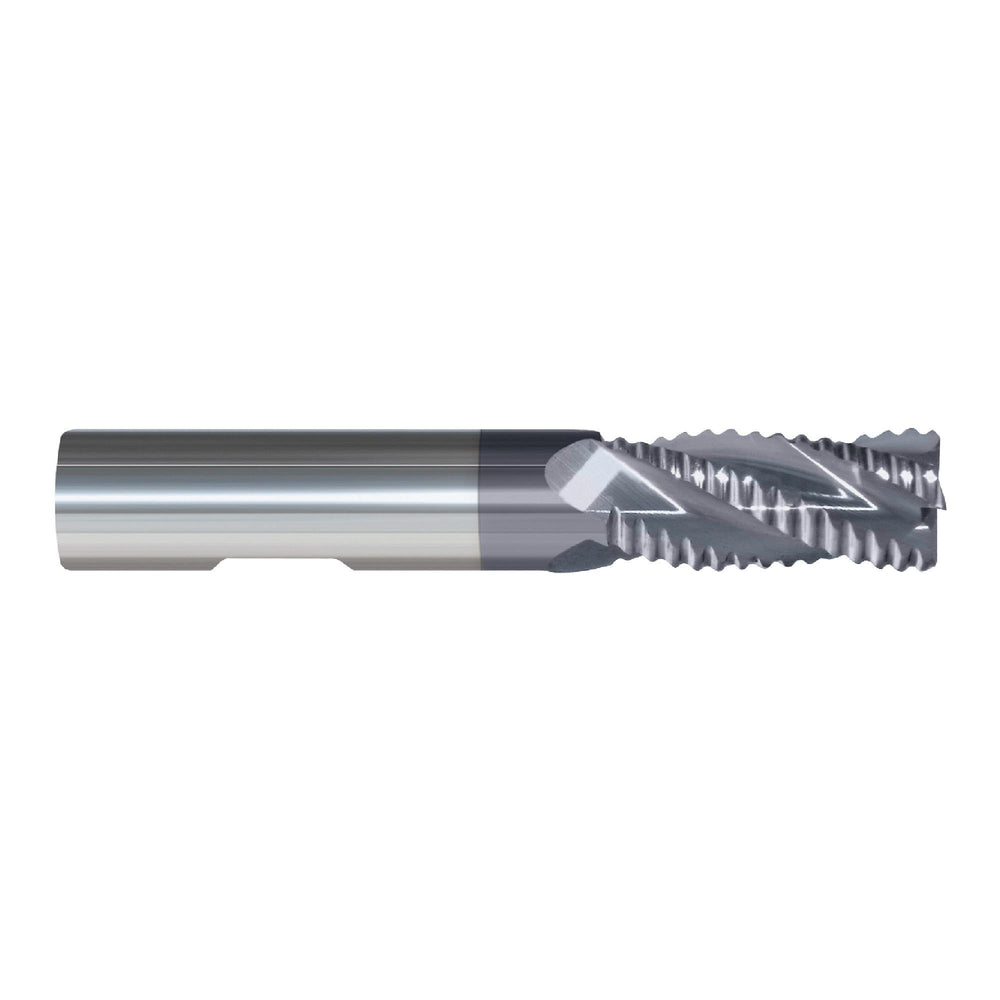

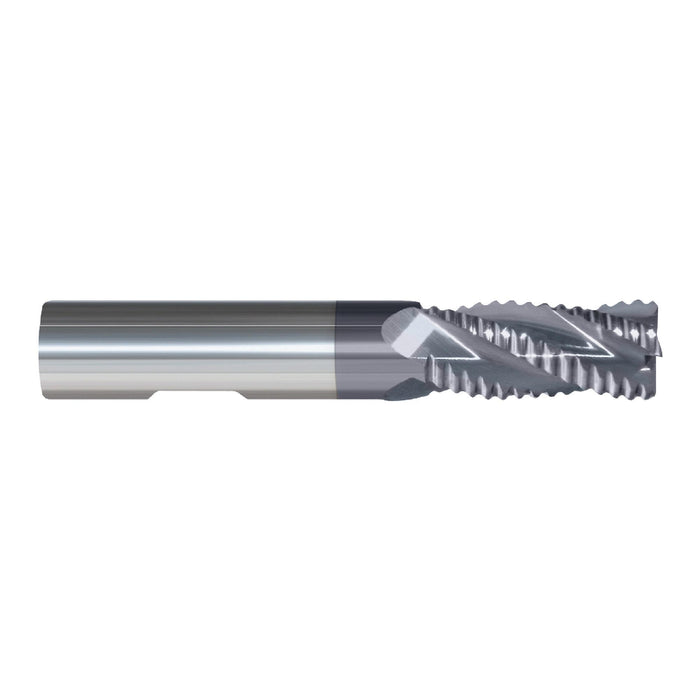

RUSHMORE USA 104845 1/2" Size, 1-1/4" LOC, 4 Flute, Solid Carbide Roughing End Mill

$120.50 USD
SKU 28-000-065
Product Specifications
Brand RUSHMORE USA
Shank Diameter 1/2"
Overall Length 3"
Finish Coating Bright
Size Type Fractional
Size 1/2"
No. of Flutes 4
Length of Cut 1-1/4"
Tool Material Solid Carbide
Single or Double End Single
Helix Angle 37°
Center Cutting Yes
Type 4 Flute Carbide Medium Pitch Roughing Single End Mill
End Type Single End
Model # 104845
Application Used for slotting, peripheral milling, and heavy removal. For difficult to machine and abrasive materials
Chamfer Dimensions 0.025"
Cutting Direction Right Hand
Cutting End Shape Square
Flute Shape Square
Helix Direction Right Hand
Length Type Standard Length
Overall Length 2 3"
Package Qty 1
Prop. 65 Yes
Shank Style Weldon Flat
Tolerance_Cutting Diameter +.000/-.003"
Tolerance_Shank Diameter +.0000/-.0003"
Tooth Geometry 37° Helix 4 Flute
UNSPSC 27112803
Weight .258 lbs
Workpiece Material Difficult to machine & abrasive materials.
Country of Origin UNITED STATES OF AMERICA

Prop 65 Warning

WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov

Experience Chatterless Operation with Medium Pitch Roughing End Mill. Rushmore USA brings to you its limited series of progressive unequal index coated roughing end mills for high-performance applications. These end mills are made from solid C2 grade carbide with 10 percent cobalt to increase the overall tool hardness. The roughing mills are offered in four-flute spiral design with an unusual 37-degree helix angle and produces right-hand (clockwise) cuts. The lower 37-degree helix angle will wrap around the tool slowly and improves the chip evacuation rate. The tool end has Weldon flats which prevents the tool from rotating when machining. It is ideal for slotting, peripheral milling, and heavy removal. The AlTiN-coated roughing end mills work well on difficult to machine workpiece and abrasive materials. The coating also improves cutter life, closer cutting tolerances, and less resharpening costs. Rushmore offers these unusual roughing end mills in 9 different sizes ranging from 3/16 inch to 1 inch. The overall length of tool comes in 6 different unusual lengths ranging from 2 inches to 4 inches. Rushmore's end mills are perfect for all aerospace, medical, automotive, or production machining solutions. A wide range of tools from Rushmore USA are available here. This USA Made brand offers quality affordable American-made tooling with the superior speed and feed that your applications require.
High performance machining

Benefits

  • Reduced chatter and vibration.
  • Maximum material removal rates.

Applications

Used for slotting, peripheral milling, and heavy removal. For difficult to machine and abrasive materials

Features

  • Solid C2 grade premium sub-micron carbide with 10% cobalt.
