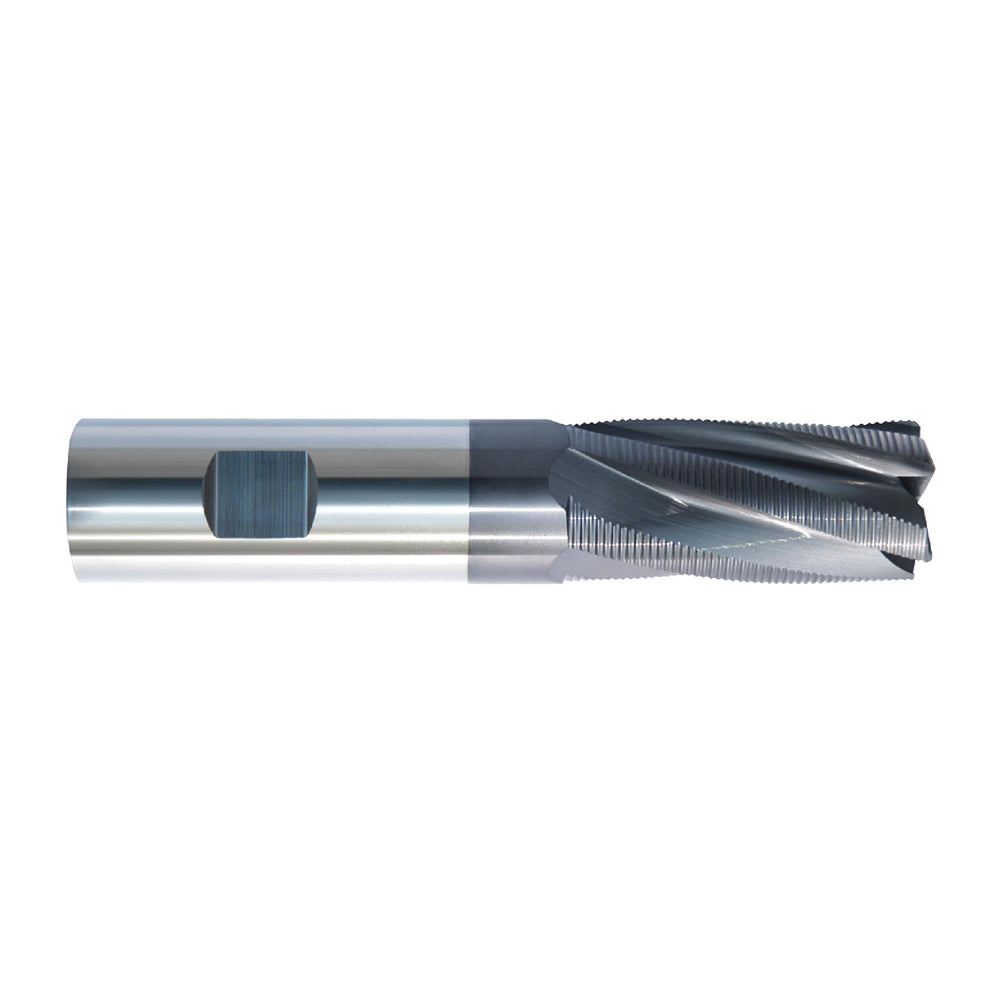

RUSHMORE USA 104839 1" Size, 4-1/8" LOC, 5 Flute, Solid Carbide Roughing End Mill
Product Specifications | |
---|---|
Brand | RUSHMORE USA |
Shank Diameter | 1" |
Overall Length | 7" |
Finish Coating | AlTiN |
Size Type | Fractional |
Size | 1" |
No. of Flutes | 5 |
Length of Cut | 4-1/8" |
Tool Material | Solid Carbide |
Single or Double End | Single |
Helix Angle | 20° |
Center Cutting | Yes |
Type | 5 Flute Carbide Fine Pitch Roughing Single End Mill AlTiN Coated |
End Type | Single End |
Model # | 104839 |
Application | Used for Shallow slotting, peripheral milling, and heavy removal. For difficult to machine and abrasive materials |
Chamfer Dimensions | 0.025" |
Cutting Direction | Right Hand |
Cutting End Shape | Square |
First Choice For: | High Temp Exotic Alloys |
Flute Shape | Spiral Flute |
Helix Direction | Right |
Length | 7" |
Length Type | Xlong Length |
Overall Length 2 | 7" |
Package Qty | 1 |
Prop. 65 | Yes |
Tolerance_Shank Diameter | +.0000/-.0003" |
Tooth Geometry | 20° Helix 5 Flute |
UNSPSC | 27112803 |
Weight | 2.48 lbs |
Workpiece Material | Difficult to machine materials |
Workpiece Material Range | Steel, Stainless Steel, High-Temp Exotic Alloys, Non-Ferrous, Cast Iron, Hard Materials, Plastics |
Country of Origin | UNITED STATES OF AMERICA |
WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Benefits
- Reduced chatter and vibration.
- Maximum material removal rates.
Applications
Used for Shallow slotting, peripheral milling, and heavy removal. For difficult to machine and abrasive materialsFeatures
- Solid C2 grade premium sub-micron carbide with 10% cobalt.
