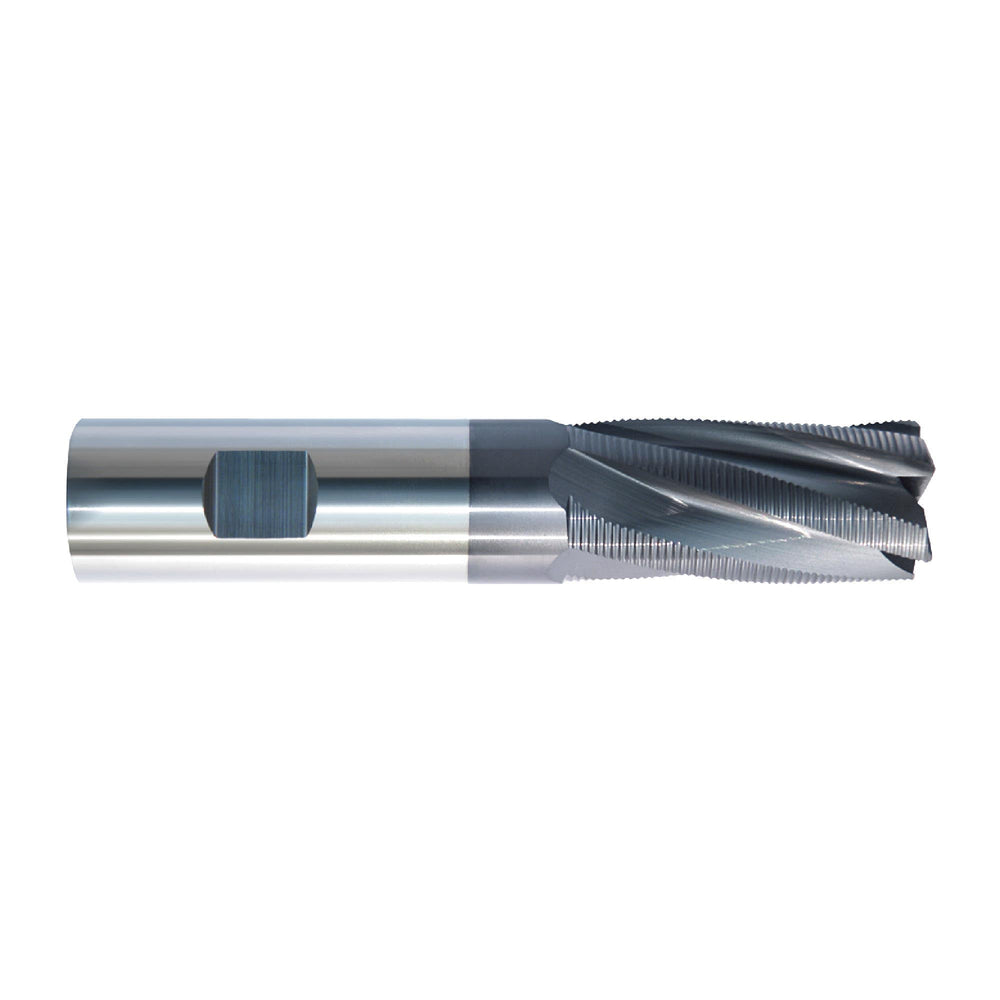

RUSHMORE USA 104838 1" Size, 3-1/4" LOC, 5 Flute, Solid Carbide Roughing End Mill
by Rushmore USA
$720.13 USD
SKU 28-000-048
| Product Specifications | |
|---|---|
| Brand | RUSHMORE USA |
| Shank Diameter | 1" |
| Overall Length | 6" |
| Finish Coating | AlTiN |
| Size Type | Fractional |
| Size | 1" |
| No. of Flutes | 5 |
| Length of Cut | 3-1/4" |
| Tool Material | Solid Carbide |
| Single or Double End | Single |
| Helix Angle | 20° |
| Center Cutting | Yes |
| Type | 5 Flute Carbide Fine Pitch Roughing Single End Mill AlTiN Coated |
| End Type | Single End |
| Model # | 104838 |
| Application | Used for Shallow slotting, peripheral milling, and heavy removal. For difficult to machine and abrasive materials |
| Chamfer Dimensions | 0.025" |
| Cutting Direction | Right Hand |
| Cutting End Shape | Square |
| First Choice For: | High Temp Exotic Alloys |
| Flute Shape | Spiral Flute |
| Helix Direction | Right |
| Length | 6" |
| Length Type | Long Length |
| Overall Length 2 | 6" |
| Package Qty | 1 |
| Prop. 65 | Yes |
| Tolerance_Shank Diameter | +.0000/-.0003" |
| Tooth Geometry | 20° Helix 5 Flute |
| UNSPSC | 27112803 |
| Weight | 2.008 lbs |
| Workpiece Material | Difficult to machine materials |
| Workpiece Material Range | Steel, Stainless Steel, High-Temp Exotic Alloys, Non-Ferrous, Cast Iron, Hard Materials, Plastics |
| Country of Origin | UNITED STATES OF AMERICA |
WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Great for removing material when deflection is an issue
Benefits
- Reduced chatter and vibration.
- Maximum material removal rates.
Applications
Used for Shallow slotting, peripheral milling, and heavy removal. For difficult to machine and abrasive materialsFeatures
- Solid C2 grade premium sub-micron carbide with 10% cobalt.
