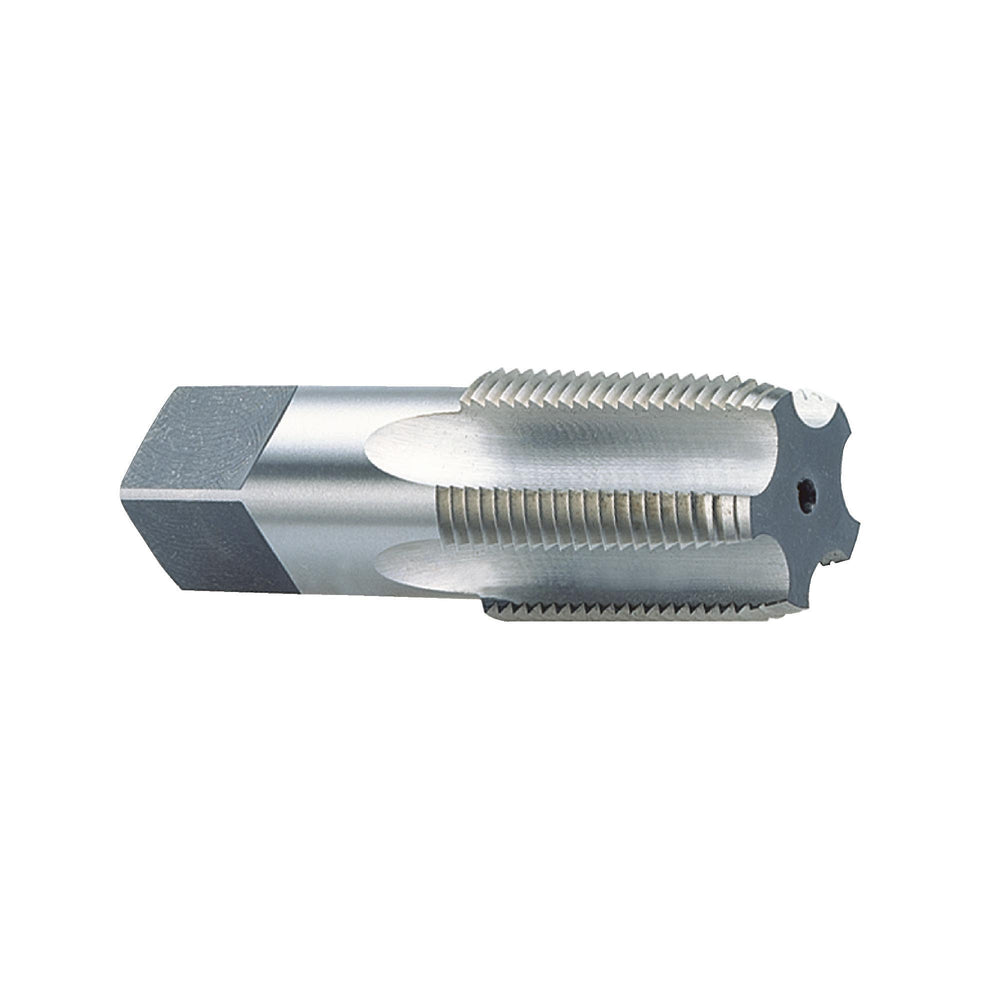

RUSHMORE USA 100965 1"-11-1/2 Size Bright, Straight Flute, High Speed Steel Pipe Tap

$146.11 USD
SKU 12-730-027
Product Specifications
Brand RUSHMORE USA
Tool Material High Speed Steel
Finish Coating Bright
Thread Size 1"-11-1/2
Cutting Direction Right Hand
Thread Length 1.75"
Overall Length 3.75"
No. of Flutes 5
Thread Type NPT
Flute Form Straight Flute
Shank Diameter 1.1250"
Model # 100965
First Choice For: Steel
General Application Tapping
Helix Angle
No. of Threads Per Inch 11-1/2
Prop. 65 Yes
Square Length 0.8125"
Square Size 0.843"
UNSPSC 23241615
Weight 0.717 lbs.
Workpiece Material Range Steel, Non-Ferrous, Cast Iron, Plastics
Country of Origin UNITED STATES OF AMERICA

Prop 65 Warning

WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov

American National Pipe Tapered Thread Taps from Rushmore USA Tools. Rushmore presents a variety of NPT taps for general purpose use in a variety of materials conforming to ANSI standards. Rushmore's NPT pipe taps have a tapered male and female thread and act as both the mechanical joint and the hydraulic seal. NPT taps produce threads that require sealant when joined to an external NPT threaded part. The overall tool length varies from 2-1/8" to 4-1/2". Various models are available in thread size of 1/16"-27 to 2"-11-1/2 and comes in four/five/seven straight flute design with a pitch angle of 60°. The square shank is provided to fit well into tap wrenches. The high-speed steel tool material and grounded threads ensure superior performance at high speeds. The threads are formed in the right-hand (clockwise) cutting direction. Rushmore USA NPT taps comply with all standards and specifications. It is produced from the highest quality steel to meet your manufacturing needs. Rushmore's tools are perfect for all aerospace, medical, automotive, or production machining solutions. Travers Tools offers a wide range of Rushmore USA Tools that undergo a strict quality check before they are listed on the product catalog. This USA Made brand offers quality affordable American-made tooling with the superior speed and feed that your applications require.

Features

NPT
  • American Standard Taper Pipe Threads.
SAE
  • American Standard Short Projection Pipe Thread.
