| Product Specifications | |
|---|---|
| Brand | RUSHMORE USA |
| Size Type | Fractional |
| Size | 21/64" |
| Drill Point Angle | 118° |
| Tool Material | Solid Carbide |
| Finish Coating | TiAIN |
| Overall Length | 4" |

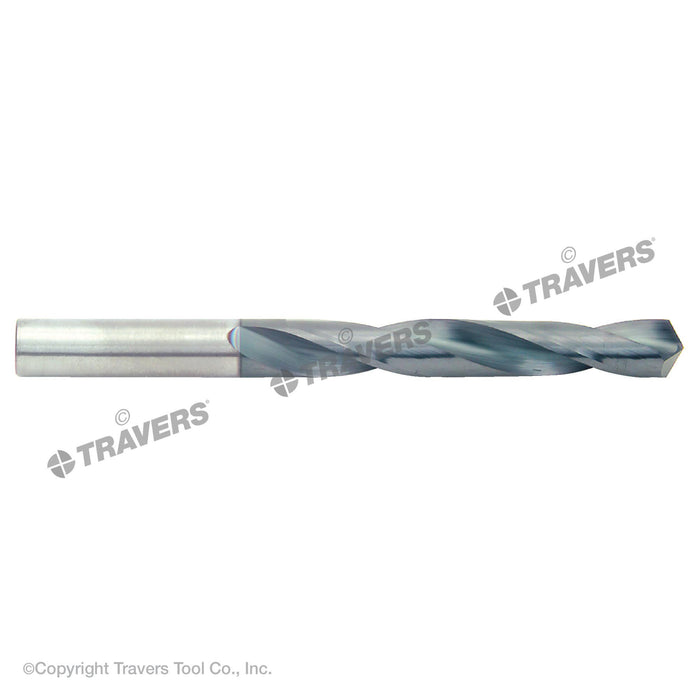

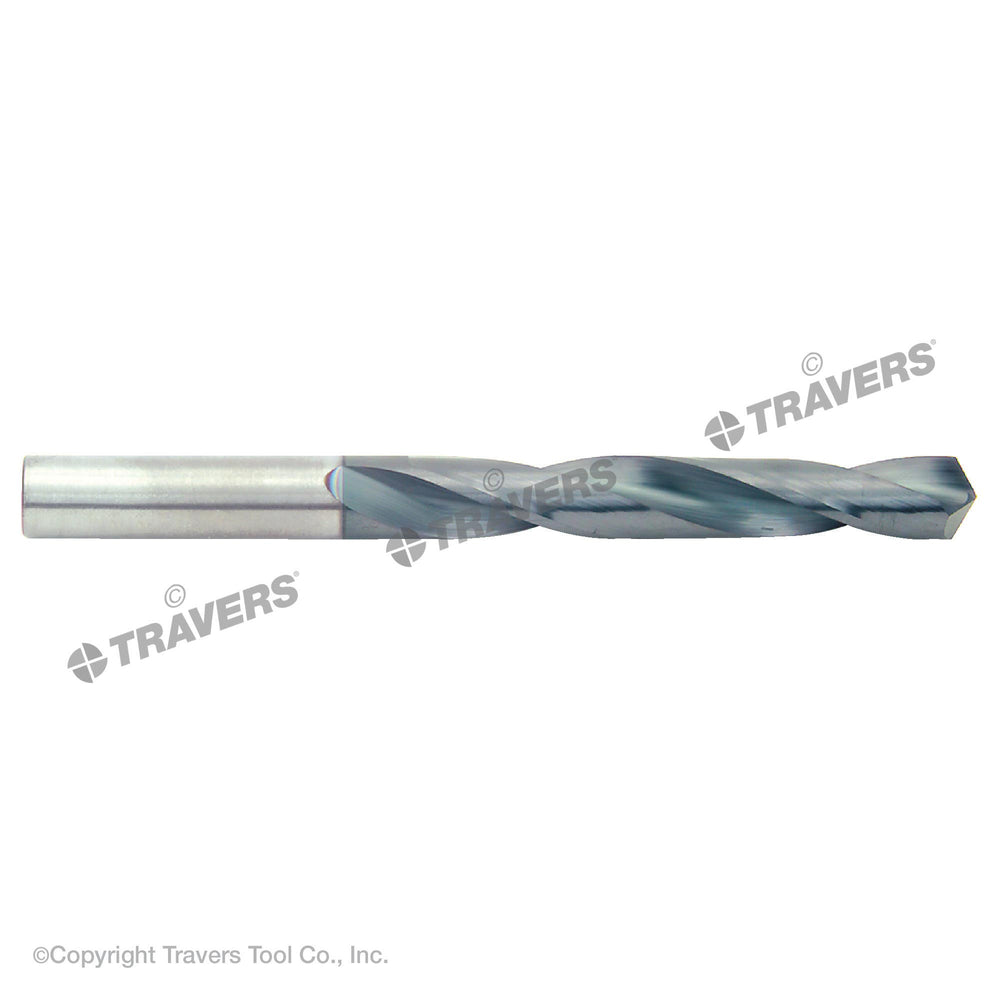

| Type | Solid Carbide TiALN Coated Jobbers Length Twist Drills |
| Flute Length | 2-1/2" |
| Cutting Direction | Right Hand |
| First Choice For: | Stainless Steel |
| Model # | 103841 |
| Helix Angle | 118° 4 Facet Point |
| Application | For general puurpose drilling in cast iron, plastics, magnesium, bronze, masonite, reisn-fiberglass laminates and highly abrasive materials. TiALN is not recommended for aluminum. |
| Decimal Size | 0.3281 |
| Flute Surface | Spiral Flute |
| Prop. 65 | Yes |
| Shank Style | Taper Shank |
| Tolerance_Cutting Diameter | +0.0000 / -0.0005 |
| Tolerance_Shank Diameter | +.000/-.001" |
| UNSPSC | 23241634 |
| Weight | 2.3 lbs. |
| Workpiece Material Range | Steel, Stainless Steel, High-Temp Exotic Alloys, Cast Iron, Hard Materials |
| Country of Origin | UNITED STATES OF AMERICA |
WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Benefits
- TiAlN multilayer coating used in wet, semi-dry to dry cutting of most steels and highly abrasive materials.
- Provides good thermal stability for increased speeds & feeds that offers excellent heat resistance, good lubricity, better finishes and prolongs tool life.
- Provides substantial improvement in feed rates and edge wear.
Applications
For general puurpose drilling in cast iron, plastics, magnesium, bronze, masonite, reisn-fiberglass laminates and highly abrasive materials. TiALN is not recommended for aluminum.Features
- Made from premium submicron carbide with 10% cobalt.
