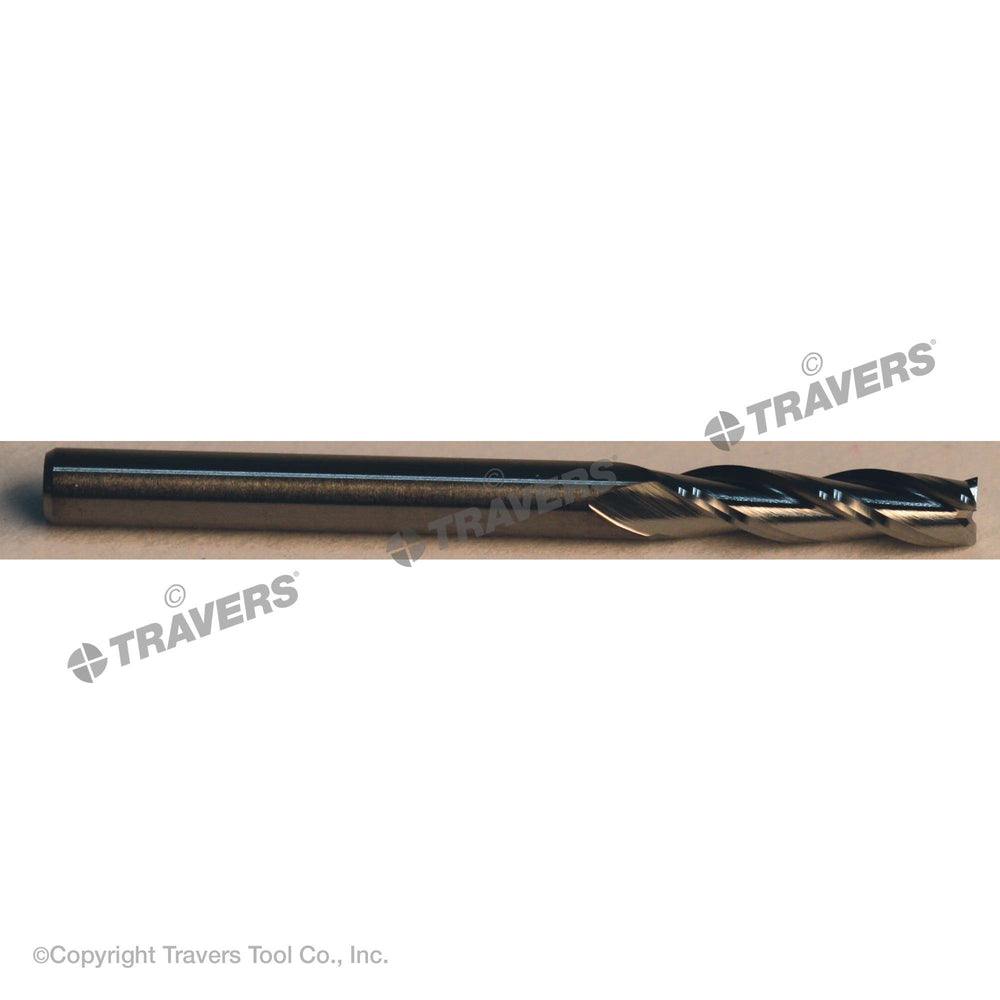

RUSHMORE USA 103194 3/16" Size, 5/8" LOC, 3 Flute, Bright Solid Carbide Finishing End Mill
by Rushmore USA
$19.57
SKU 20-513-412
| Product Specifications | |
|---|---|
| Brand | RUSHMORE USA |
| Shank Diameter | 3/16" |
| Overall Length | 2" |
| Finish Coating | Bright |
| Size Type | Fractional |
| Size | 3/16" |
| No. of Flutes | 3 |
| Length of Cut | 5/8" |
| Tool Material | Solid Carbide |
| Single or Double End | Single |
| Helix Angle | 30° |
| Center Cutting | Yes |
| Type | 3 Flute Micrograin Solid Carbide Single End Mill |
| Corner Radius | 0 |
| Model # | 103194 |
| Cutting Direction | Right Hand |
| First Choice For: | Steel |
| Flute Shape | Right Hand Spiral |
| Prop. 65 | Yes |
| Series | 1522 |
| Shank Style | Straight Shank |
| TIR Maximum | .005" |
| Tolerance_Cutting Diameter | +.000" / -.002" |
| Tolerance_Shank Diameter | -.0001" / -.0003" |
| UNSPSC | 27112803 |
| Weight | 0.033 lbs. |
| Workpiece Material Range | Steel, Stainless Steel, High-Temp Exotic Alloys, Non-Ferrous, Cast Iron, Hard Materials, Plastics |
| Country of Origin | UNITED STATES OF AMERICA |
WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Applications
- For general purpose use on all materials.
