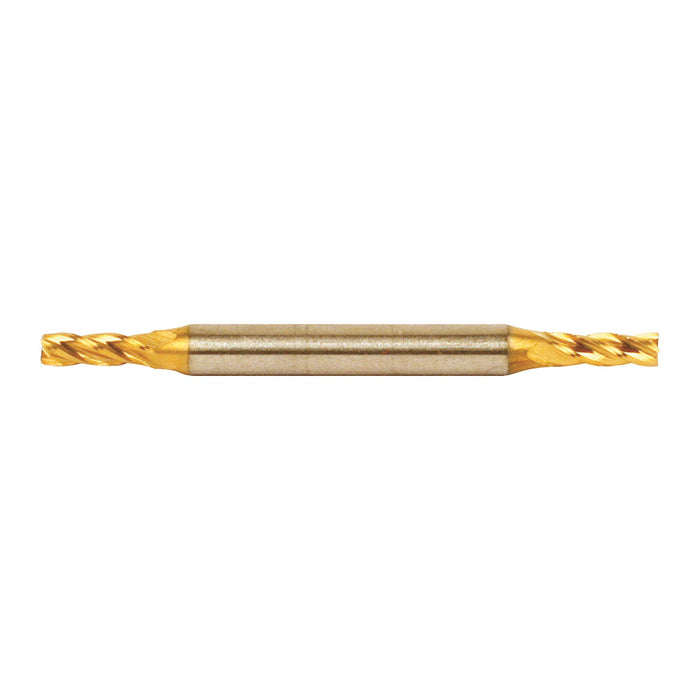

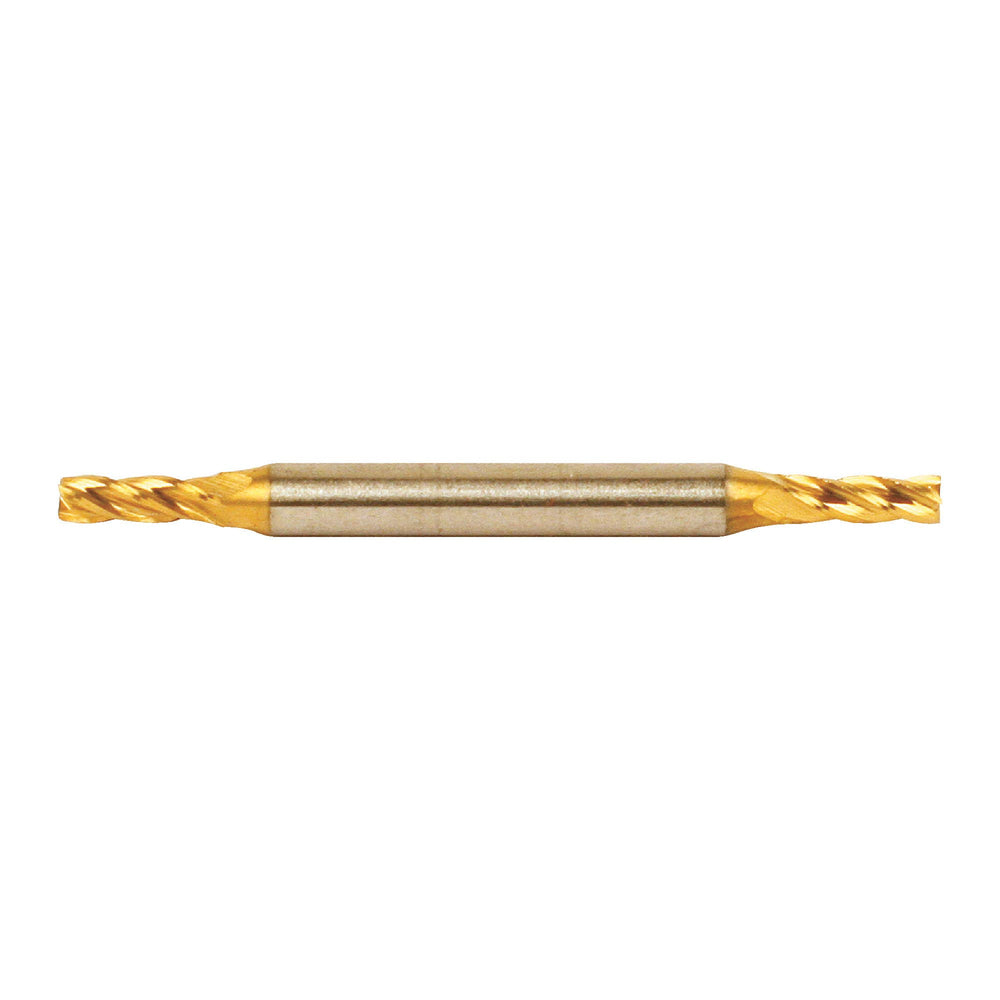

RUSHMORE USA 100643 7/64" Size, 11/32" LOC, 4 Flute, PM-30 Cobalt Miniature End Mill
by Rushmore USA
$22.28
SKU 08-099-303
| Product Specifications | |
|---|---|
| Brand | RUSHMORE USA |
| Shank Diameter | 3/16" |
| Overall Length | 2-1/4" |
| Finish Coating | TiN |
| Size Type | Fractional |
| Size | 7/64" |
| No. of Flutes | 4 |
| Length of Cut | 11/32" |
| Tool Material | PM-30 Cobalt |
| Single or Double End | Double |
| Helix Angle | 30° |
| Center Cutting | No |
| Type | 3/16" Shank PM-30 Cobalt Miniature Double End Mills |
| Corner Radius | None |
| Model # | 100643 |
| Coating | TiN |
| Cutting Direction | Right Hand |
| Cutting End Shape | Square |
| Flute Shape | Spiral |
| Helix Direction | Right Hand |
| Length Type | Regular Length |
| Prop. 65 | Yes |
| Shank Style | Straight Shank |
| Tolerance_Cutting Diameter | -.001" / +.000" |
| Weight | 0.0312 lbs. |
| Workpiece Material | Excellent for materials less than 30Rc. |
| Country of Origin | UNITED STATES OF AMERICA |
WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
PM-30 cobalt is tough & less prone to breakage & useful in high shock applications
Benefits
- A cost alternative to solid carbide end mills.
- TiN coated for added lubricity and extended tool life.
Applications
- For milling small slots and grooves.
- Excellent for materials less than 30Rc.
Features
- Made of powdered metal cobalt.
- Right hand cutting direction.
