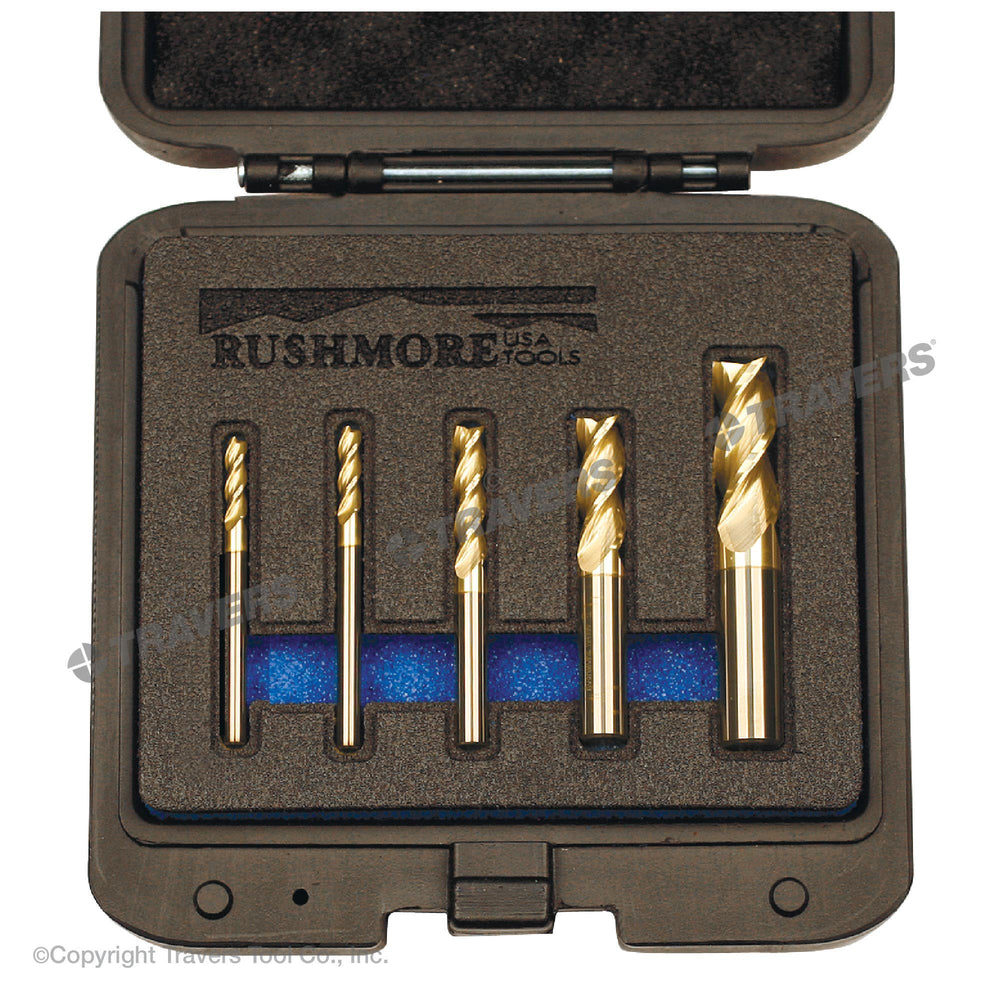

RUSHMORE USA 105803 1/8" to 1/2" Size, 3 Flute, Square End Solid Carbide End Mill Set
by Rushmore USA
$200.78 USD
SKU 20-501-913
| Product Specifications | |
|---|---|
| Brand | RUSHMORE USA |
| Shank Diameter | 1/8" thru 1/2" |
| Overall Length | 2" thru 3" |
| Style | Square End |
| Finish Coating | ZrN |
| Size Type | Fractional |
| Size | 1/8" to 1/2" |
| No. of Flutes | 3 |
| Length of Cut | 1/2" thru 1-1/4" |
| Tool Material | Solid Carbide |
| Single or Double End | Single |
| Helix Angle | 37° |
| Center Cutting | Yes |
| Model # | 105803 |
| Application | Milling |
| Case Type_Material | Plastic Case |
| Cutting Direction | Right Hand |
| Cutting End Shape | Square |
| First Choice For: | Non-Ferrous |
| Flute Shape | Helical Spiral |
| Includes | One each of diameters: 1/8", 3/16", 1/4", 3/8", 1/2" and heavy duty plastic fitted case. |
| No. of Pieces | 5 |
| Prop. 65 | Yes |
| Shank Style | Straight Shank |
| UNSPSC | 27112803 |
| Weight | 1.8125 lbs. |
| Workpiece Material | Aluminum, Brass, Copper & Some Plastics |
| Country of Origin | UNITED STATES OF AMERICA |
WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Durable, super shop hardened, carrying case with thick inner foam lining provides the ultimate in protection for your cutting tools!
Benefits
- Cutting tool geometry to prevent most failures from aluminum sticking to the carbide cutting edge.
- Flute polish for better chip evacuation & higher metal removal rates.
- Edge prep for reduced chatter.
- Open gash end for better chip evacuation.
- Higher helix for increased chip evacuation & better shearing.
- ZrN coating for increased tool life & lubricity.
- This produces an end mill that provides reduced cutting forces & superior finishes.
Applications
MillingFeatures
- 10% premium carbide.
- Unique geometry.
