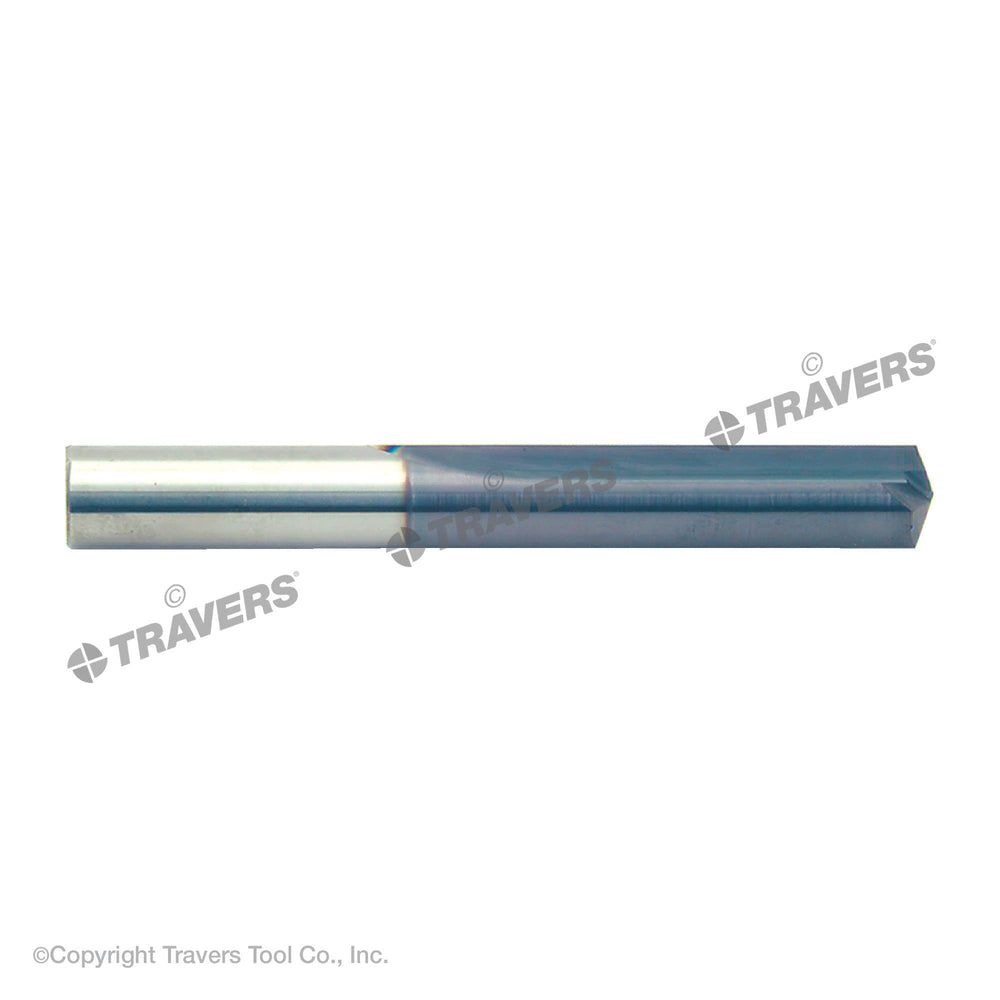

RUSHMORE USA 103762 5/32" 140° Solid Carbide Straight Flute Spade Drill
by Rushmore USA
$29.76 USD
SKU 20-806-210
| Product Specifications | |
|---|---|
| Brand | RUSHMORE USA |
| Size Type | Fractional |
| Size | 5/32" |
| Drill Point Angle | 140° |
| Tool Material | Solid Carbide |
| Finish Coating | TiAIN |
| Overall Length | 2-1/16" |
| Type | Straight Flute |
| Flute Length | 1" |
| First Choice For: | Hard Materials |
| Model # | 103762 |
| Point Sharpening Type | Notched Point |
| Decimal Size | 0.1562 |
| Flute Shape | Straight Flute |
| Prop. 65 | Yes |
| Tolerance_Cutting Diameter | +0.0000 / -0.0005 |
| Weight | 0.03 lbs. |
| Workpiece Material Range | Steel, Stainless Steel, High-Temp Exotic Alloys, Cast Iron, Hard Materials |
| Country of Origin | UNITED STATES OF AMERICA |
WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Reduces heat generation in heavy cuts and improves feed rates
Benefits
- TiAlN coating provides longer life and superior finishes.
Applications
- For drilling in hard and high-strength materials where the hole is greater than two diameters deep.
- For use in rough and general machining applications of high temperature exotic materials and high cobalt & high nickel alloys including 200 & 300 series stainless steels.
