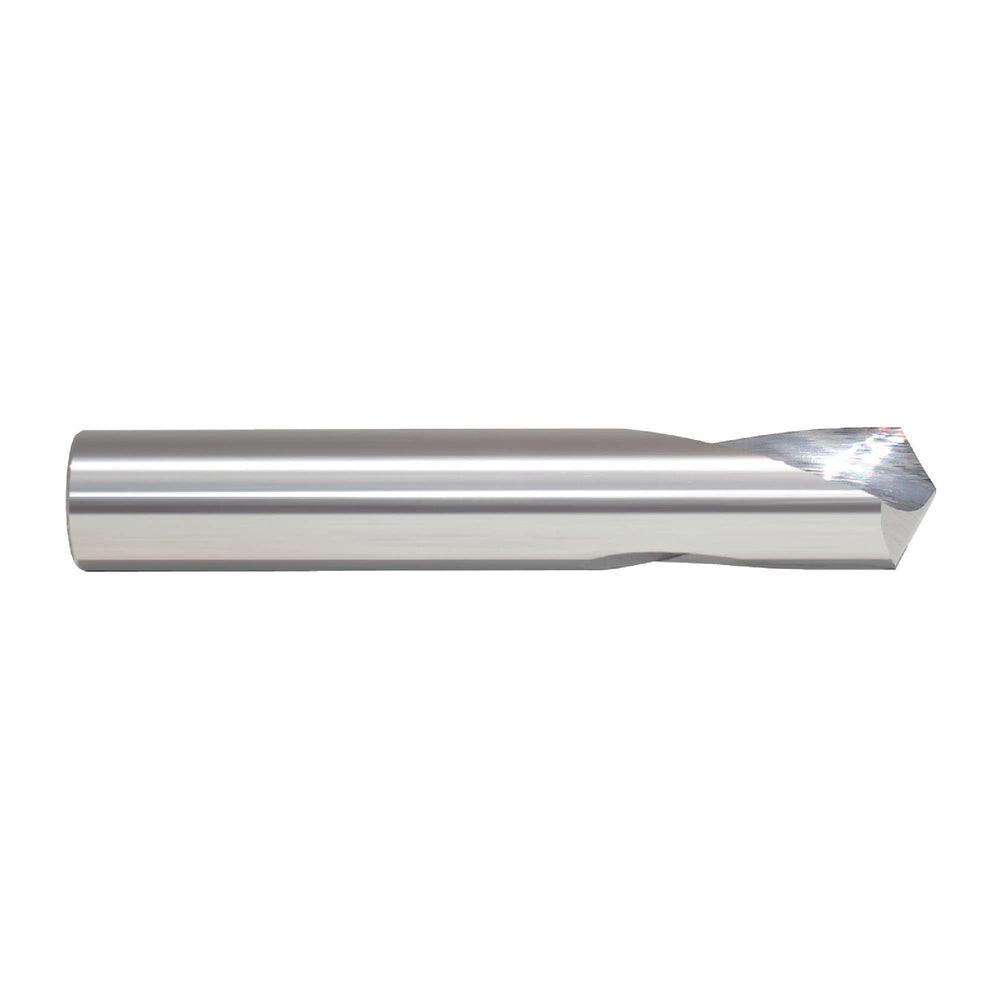

RUSHMORE USA 102693 5/16" 90° 2-1/2" OAL, Solid Carbide Spotting Drill
Product Specifications | |
---|---|
Brand | RUSHMORE USA |
Size Type | Fractional |
Size | 5/16" |
Drill Point Angle | 90° |
Tool Material | Solid Carbide |
Finish Coating | Bright |
Overall Length | 2-1/2" |
Type | NC Spotting Drill Set |
Flute Length | 1" |
Cutting Direction | Right Hand |
First Choice For: | Steel |
Model # | 102693 |
General Application | Chamfering & Centering |
Helix Angle & Style | 20° Spiral |
Helix Direction | Right Hand |
No. of Flutes | 2 |
Prop. 65 | Yes |
Shank Style | Straight Shank |
Single or Double End | Single |
Thread Direction | Right Hand |
Tolerance_Cutting Diameter | +0.0000" / -0.0005" |
Weight | 0.035 lbs. |
Workpiece Material | For A Wide Range Of Materials |
Workpiece Material Range | Steel, Stainless Steel, Non-Ferrous, Cast Iron |
Country of Origin | UNITED STATES OF AMERICA |
WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Benefits
- Shorter flute and overall lengths provide superior rigidity.
Applications
- Chamfers and centers in one operation.
Features
- Right hand cut/right hand spiral.
- 20° helix.
