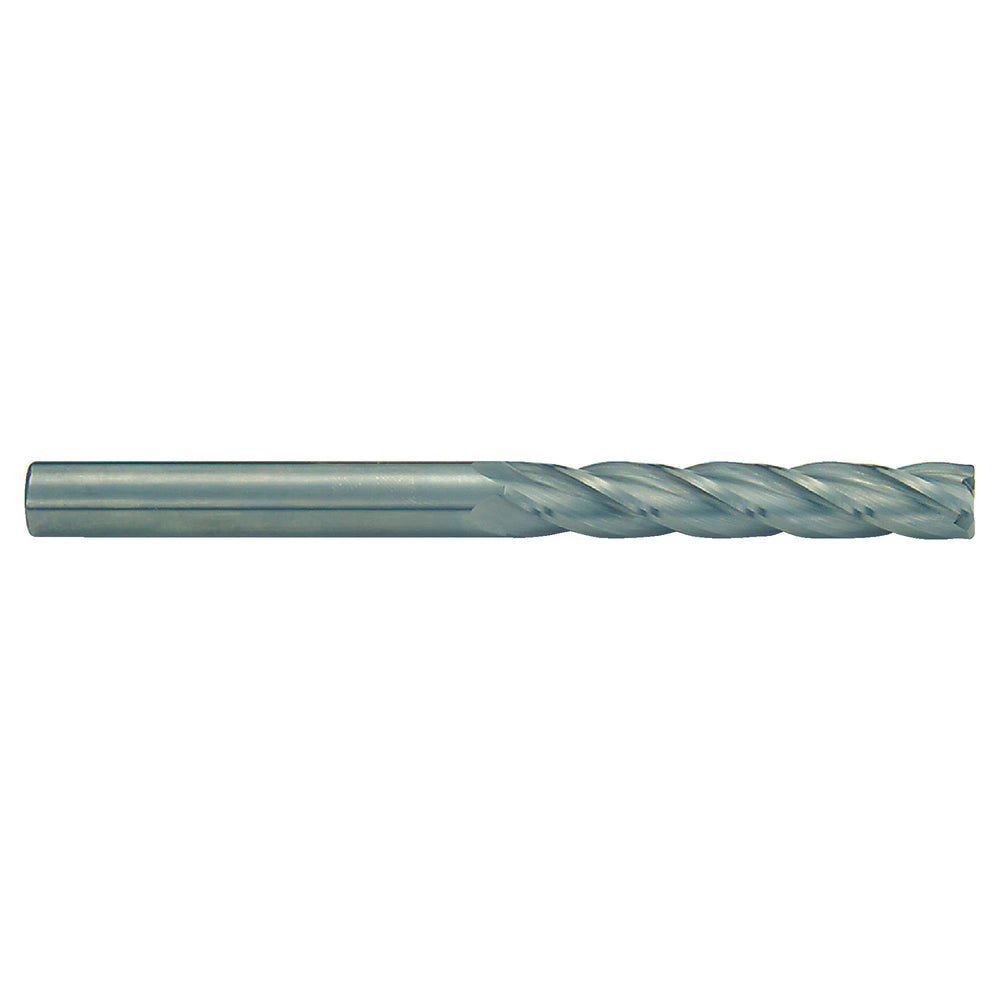

RUSHMORE USA 102768 5/8" Size, 3" LOC, 4 Flute, AlTiN Solid Carbide Finishing End Mill

Name: RUSHMORE USA 102768 5/8" Size, 3" LOC, 4 Flute, AlTiN Solid Carbide Finishing End Mill
Brand: Rushmore USA
SKU: 20-501-344
Price: 157.24 USD
Availability: InStock

by Rushmore USA

$157.24

SKU 20-501-344

Quantity

Product Specifications

Brand	RUSHMORE USA
Shank Diameter	5/8"
Overall Length	6"
Finish Coating	AlTiN
Size Type	Fractional
Size	5/8"
No. of Flutes	4
Length of Cut	3"
Tool Material	Solid Carbide
Single or Double End	Single
Helix Angle	30°
Center Cutting	Yes
Type	4 Flute Micrograin Long Length Solid Carbide Single End Mill
Corner Radius	0
Flute Length	3"
Model #	102768
Application	For general purpose use on all materials.
Cutting Direction	Right Hand
First Choice For:	Stainless Steel
Flute Shape	Spiral Flute
Length Type	Extra Long Length
Nose Type	Square nose
Prop. 65	Yes
Series	1501-XL
Shank Style	Straight Shank
Tolerance_Cutting Diameter	+.000" / -.003"
Tolerance_Shank Diameter	-.0000" / -.0005"
UNSPSC	27112803
Weight	1.215 lbs.
Workpiece Material	All materials
Workpiece Material Range	Steel, Stainless Steel, High-Temp Exotic Alloys, Non-Ferrous, Cast Iron, Hard Materials, Plastics
Country of Origin	UNITED STATES OF AMERICA

WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov

Long Length Single End Mills for Better Access in Depth Applications. Rushmore USA is presenting these micro grain solid carbide finishing mills for application on all materials. Solid carbide construction makes the tool more wear-resistant at high speeds. These square-nosed series single-end mills are offered in coated & uncoated assortments. All models come with a four-flute design and a round shank. The overall tool length is increased to 6 inches and under. The end mill's four flutes allow faster removal of chips while cooling fluids enter easily. The tool's flat end creates sharp, unrounded cuts. The tool offers a right-hand (clockwise) cutting direction. The center-cutting design has cutting teeth at the end of the tool, thus fed into the workpiece like a drill bit. The lower 30-degree helix angle wraps slowly and provides a strong cutting angle. The tool is well-suited for materials including Steel, Stainless Steel, High-Temp Exotic alloy, Non-Ferrous, Cast Iron, Hard Materials, Plastics. Shank diameter tolerance is -0.0000 inch to -0.0005 inch. The tool is available in 10 different sizes ranging from 1/8 inch to 1 inch. This USA Made brand offers quality affordable American-made tooling with the superior speed and feed that your applications require. A wide range of Rushmore USA tools are available here and undergo a strict quality check before they are listed on our product catalog. Rushmore's end mills are perfect for all aerospace, medical, automotive, or production machining solutions.

Long length provides access at greater depths

Benefits

AlTiN Coating

Multi-layer coating used in wet, semi-dry to dry cutting of most steels and highly abrasive materials.
Provides good thermal stability for increased speeds and feeds, heat resistance and tool life.

Applications

For general purpose use on all materials.

Features

Manufactured from 10% cobalt premium micrograin tungsten carbide with an advanced tool geometry that will outperform conventional end mills.
Offer strength necessary to combat deflection due to long overhang.
