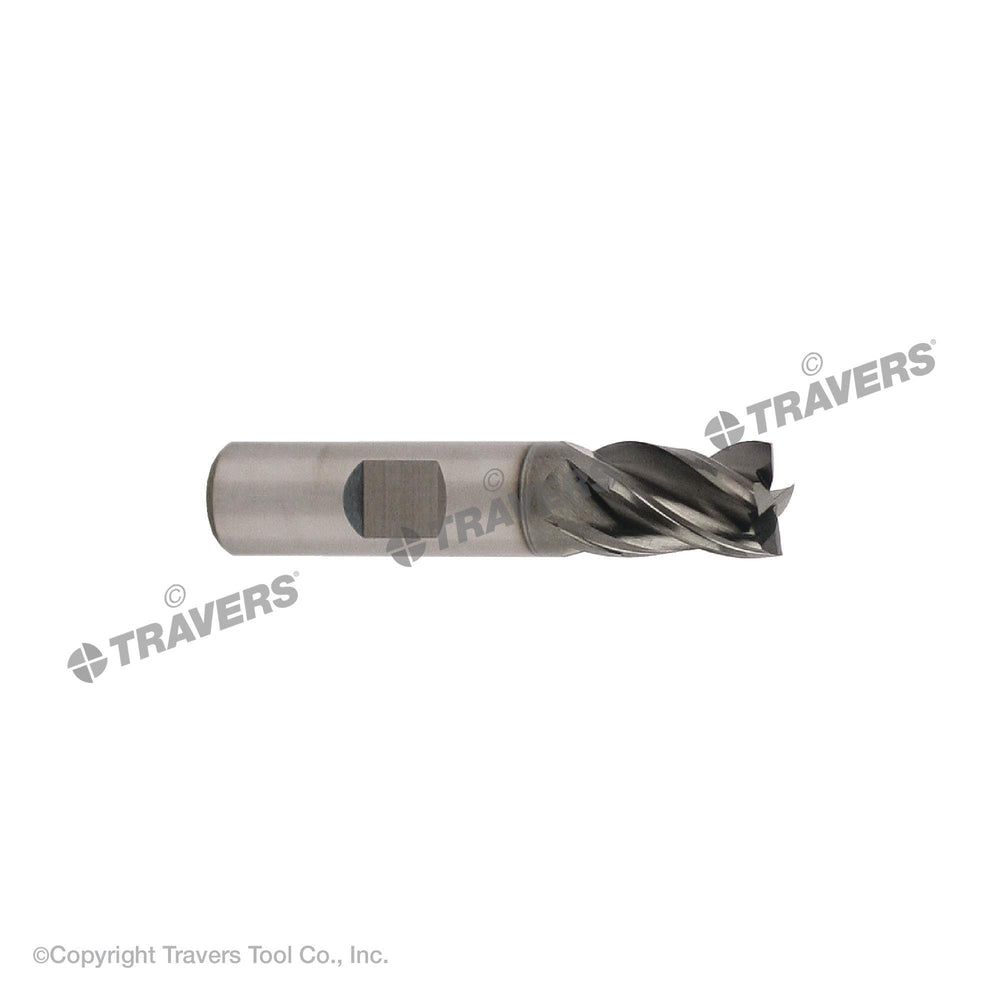

RUSHMORE USA 101105 3/16" Size, 7/16" LOC, 4 Flute, AlCrN Solid Carbide Finishing End Mill
by Rushmore USA
$23.57
SKU 20-102-409
| Product Specifications | |
|---|---|
| Brand | RUSHMORE USA |
| Shank Diameter | 3/16" |
| Overall Length | 2" |
| Finish Coating | AlCrN |
| Size Type | Fractional |
| Size | 3/16" |
| No. of Flutes | 4 |
| Length of Cut | 7/16" |
| Tool Material | Solid Carbide |
| Single or Double End | Single |
| Helix Angle | Variable |
| Center Cutting | Yes |
| Type | Variable Helix Unequal Index Solid Carbide Single End Mill |
| Corner Radius | 0 |
| Coolant Through | No |
| Model # | 101105 |
| Application | High Performance Milling |
| Coating | AlCrN Coating |
| Cutting Direction | Right Hand |
| Cutting End Shape | Square End |
| First Choice For: | High Temp Exotic Alloys |
| Flute Shape | Spiral Flute |
| Prop. 65 | Yes |
| Shank Style | Straight Shank |
| Tolerance_Cutting Diameter | 0 / -.0012" |
| Tolerance_Shank Diameter | H6 |
| Weight | 0.1478 lbs. |
| Workpiece Material | Stainless steels, mild steels, cast iron, low/medium hardness materials under HRc42 |
| Workpiece Material Range | Steel, Stainless Steel, High-Temp Exotic Alloys, Non-Ferrous, Cast Iron, Hard Materials, Plastics |
| Country of Origin | UNITED STATES OF AMERICA |
WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Machine Shop Solutions
Problem: Traditional end mills can produce distracting chatter and vibration during machining. Solution: An AlCrN-coated end mill designed for improved wear-resistance and protection while decreasing chipping and chatter.Hear The Silence With Unique Geometry & Coatings
Reduce chatter, increase tool life & maximixe chip removal
Benefits
- Increased productivity with reduced chatter & harmonics.
- Coating for reduced wear & superior heat resistance.
- Corner radius option to prevent chipping.
Applications
High Performance MillingFeatures
- Premium grade carbide substrate.
- Plain shank under 3/8".
- Flat shank 3/8" & larger.
